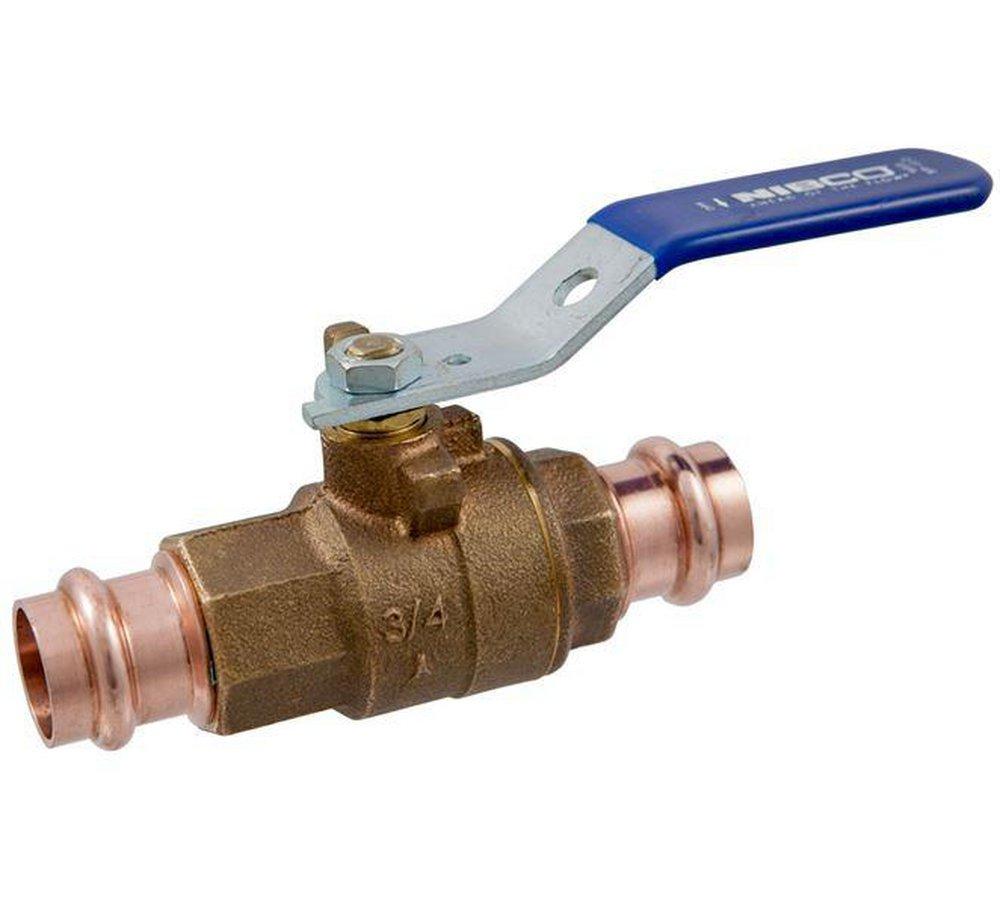

NIBCO NF84HCC PC-585-70-66 1-1/2 in. DZR Bronze Full Port Press 250# Ball Valve

Product Description

NIBCO PC-585-70-66 is a ball valve with MPN NF84HCC. This valve features a two-piece construction designed for durability and functionality in high-pressure settings. Ideal for applications in mechanical HVAC and non-potable process water, it offers reliable performance in demanding environments.

• Maximum service temperature of 250 degrees Fahrenheit
• Valve pressure rating of 250 psi
• Dezincification resistant

Product Highlights

Designed for high pressure, this NIBCO ball valve includes a reinforced PTFE seat and a blowout-proof stem.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 2-Piece

Technical Specifications

• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/2 in
• Body Material: Bronze
• Ball Material: Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Actuator Type: Standard Lever Handle
• End Style: Female Press
• Inlet to Outlet Length: 8 in
• Dimensions: 10.72 in long
• Top to Inlet Center: 3.3 in
• Temperature Rating: 250 degrees Fahrenheit
• Pressure Rating: 250 psi
• Series: PC-585-70-66
• Softgoods Material: EPDM/PTFE
