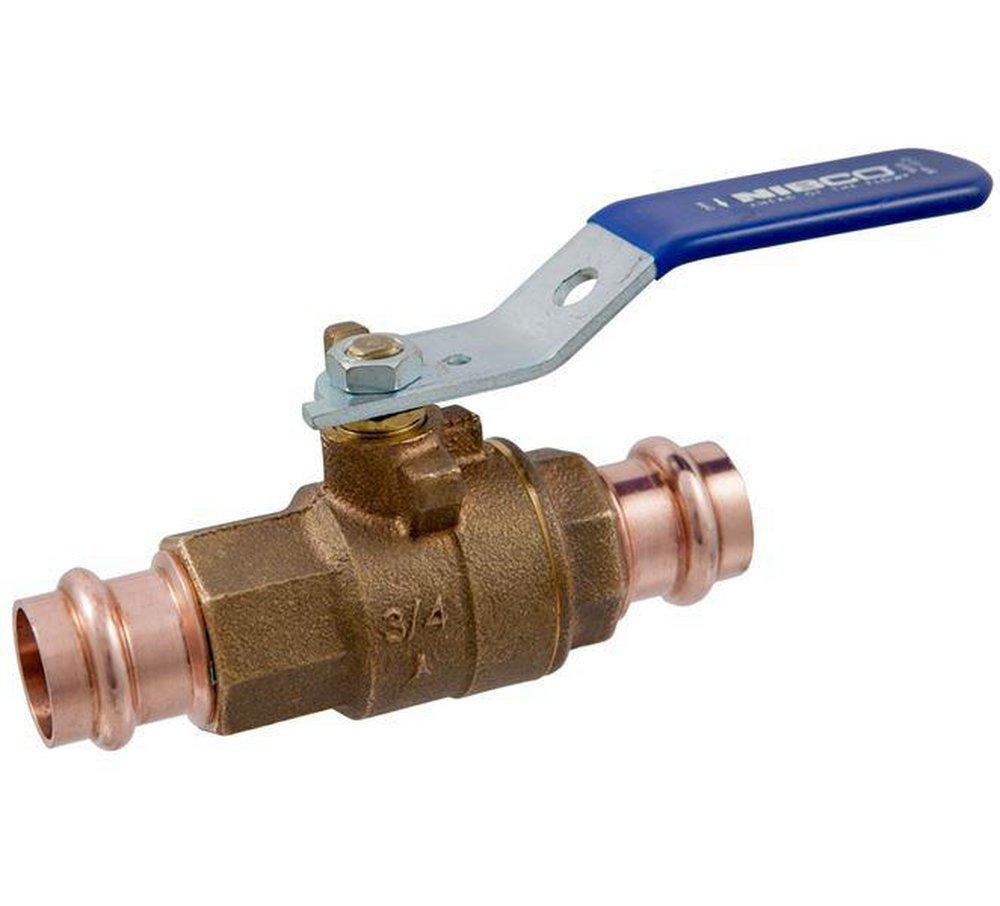

NIBCO NF84HC8 PC-585-70-66 3/4 in. DZR Bronze Full Port Press 250# Ball Valve

Product Description

NIBCO produces the NF84HC8, a PC-585-70-66 series ball valve. This valve is a two-piece unit designed for press x female press connections. It handles pressure ratings of up to 250 psi and can withstand service temperatures of 250 degrees Fahrenheit. The full port design ensures maximum flow and minimal turbulence. This valve is suitable for various applications, including HVAC systems and non-potable water processes.

• Made from bronze with a stainless steel ball
• Includes blowout-proof stem for added safety
• Press leak-detection feature enhances reliability

Product Highlights

Designed for durability and efficiency, this valve meets ASTM standards for safety and material performance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NF84HC8

Technical Specifications

• Pressure Rating: 250 psi
• Temperature Rating: 250 degrees Fahrenheit
• Nominal Size: 3/4 inches
• Actuator Type: Standard Lever Handle
• Body Material: Bronze
• Ball Material: Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Dimensions: 7.29 inches long
• Orifice Size: 3/4 inches
• End Style: Female Press
• Series: PC-585-70-66
• Softgoods Material: EPDM/PTFE
• Inlet to Outlet Length: 5.05 inches
• Top to Inlet Center: 2.28 inches
• Domestic/Import: Domestic
