Product Description

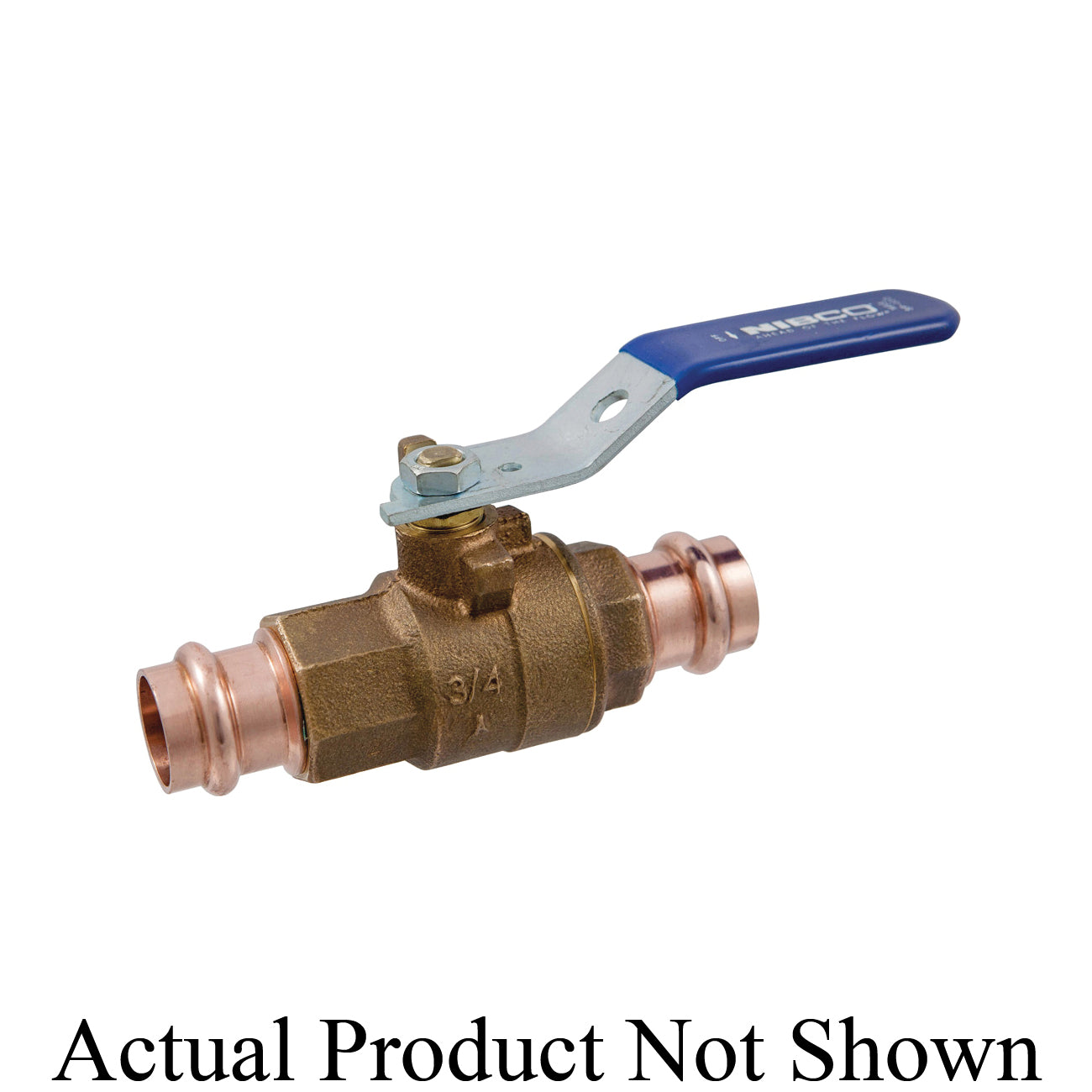

The NIBCO Press System NF84C0C is a two-piece ball valve designed for various applications like HVAC, hot and cold potable water, and non-potable process water. It features a unique N witness mark that confirms proper installation when crimped. The valve operates with a lever handle for convenient quarter-turn operation and provides bubble-tight shutoff.
- Valve pressure rating: 250 psi
- Temperature rating: 250 degrees Fahrenheit
- Durable bronze body and brass ball
Product Highlights
The NIBCO Press System valves showcase proven press technology. This ball valve is precision engineered for reliable performance in critical installations. It supports full port flow, ensuring minimal pressure loss and maximum efficiency.
Product Information
Standard Information
-
Manufacturer: NIBCO Inc.
-
Part Number: NF84C0C
Technical Specifications
-
Nominal Size: 1-1/2 inches
-
Orifice Size: 1-1/2 inches
-
Body Material: Bronze
-
Ball Material: Brass
-
Pressure Rating: 250 psi
-
Temperature Rating: 250 degrees Fahrenheit
-
End Style: Press x Female Press
-
Actuator Type: Standard Lever Handle
-
Inlet to Outlet Length: 8 inches
-
Top to Inlet Center: 3.3 inches
-
Trim Material: Silicon Bronze Stem
-
Softgoods Material: EPDM/PTFE
-
Type: 2-Piece
