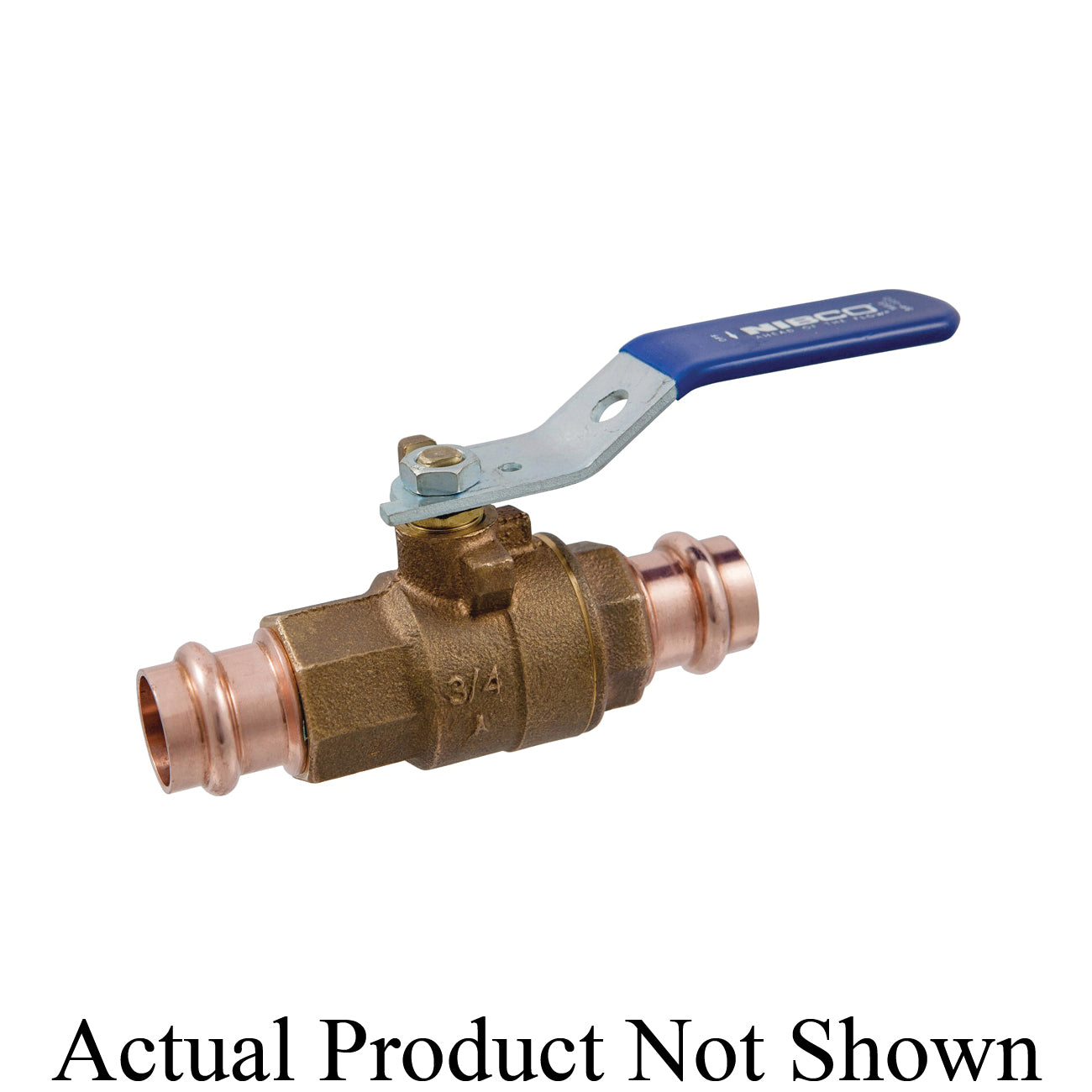

NIBCO NF84C0B PC-585-70 2-Piece Ball Valve 250 psi 1-1/4 in Press x Female Press

Product Description

The NIBCO Press System NF84C0B is a two-piece ball valve designed for a variety of applications including HVAC and plumbing. It features a press x female press connection suitable for water media. This valve has a pressure rating of 250 psi and can handle temperatures up to 250 degrees Fahrenheit.

• Press x Female Press connection type
• Included standard lever handle for easy operation
• Durable bronze body

Product Highlights

The NIBCO Press System enhances installation speed and reliability with a unique crimping design that shows a witness mark when correctly installed.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Part Number: NF84C0B

Technical Specifications

• Nominal Size: 1-1/4 in
• Orifice Size: 1-1/4 in
• Body Material: Bronze
• Ball Material: Brass
• Actuator Type: Standard Lever Handle
• Pressure Rating: 250 psi
• Temperature Rating: 250 degrees F
• Inlet to Outlet Length: 6.64 in
• Top to Inlet Center: 3.05 in
• Trim Material: Silicon Bronze Stem
• Port Type: Full
• Softgoods Material: EPDM/PTFE
• Domestic/Import: Domestic
• Series: PC-585-70
