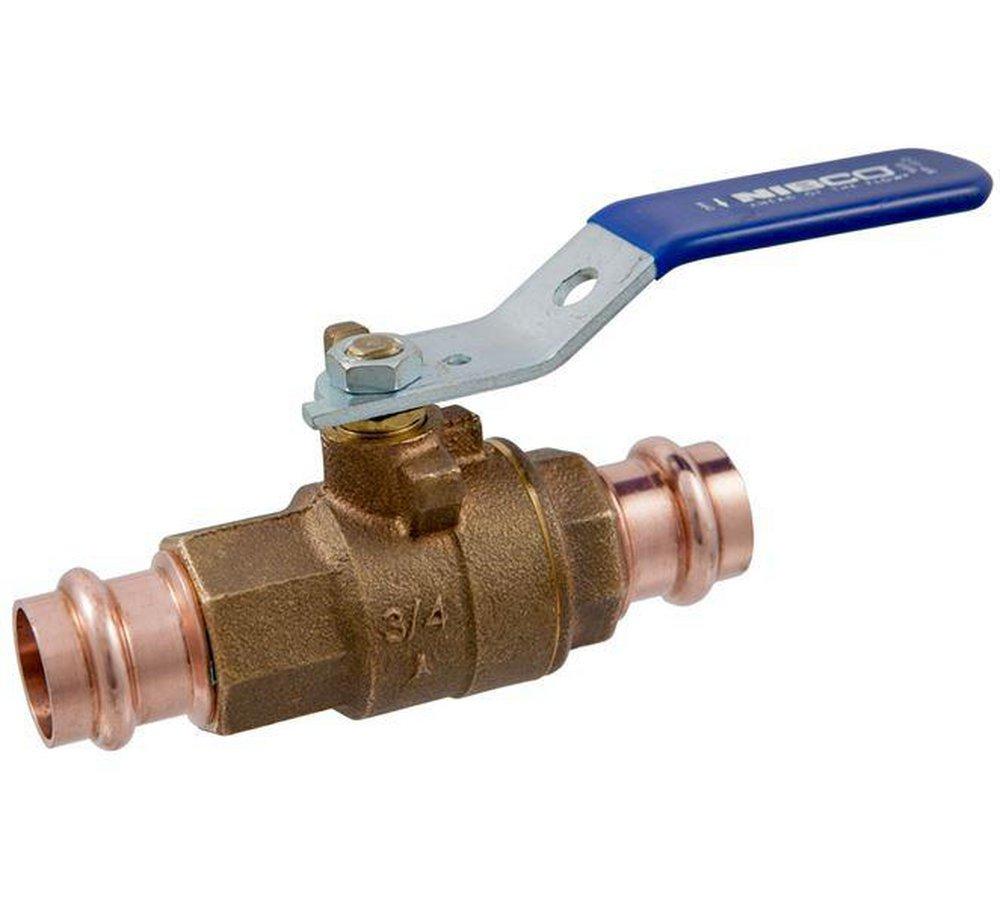

NIBCO NF84C08 PC-585-70 3/4 in DZR Bronze Full Port Press 250# Ball Valve

Product Description

The NIBCO NF84C08 PC-585-70 is a two-piece DZR bronze full port press ball valve with a nominal size of three-quarters inch. This valve features press x female press connections and is designed to handle a maximum pressure rating of two hundred fifty psi. It is suitable for use with water and can withstand temperatures up to two hundred fifty degrees Fahrenheit.

• Full port design for maximum flow
• Reinforced PTFE seat rings for durability
• Dezincification resistant construction

Product Highlights

This valve is ideal for HVAC applications and hot and cold potable water systems. The NIBCO press system provides a secure connection with a built-in leak-detection feature.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer: NIBCO INC

Technical Specifications

• Body Material: Bronze
• Ball Material: Brass
• Actuator Type: Standard Lever Handle
• Pressure Rating: 250 psi
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• End Style: Press x Female Press
• Temperature Rating: 250 degrees F
• Inlet to Outlet Length: 5.05 in
• Top to Inlet Center: 2.28 in
• Trim Material: Silicon Bronze Stem
• Softgoods Material: EPDM/PTFE
• Domestic/Import: Domestic
• Port Type: Full
• Series: PC-585-70
