Product Description

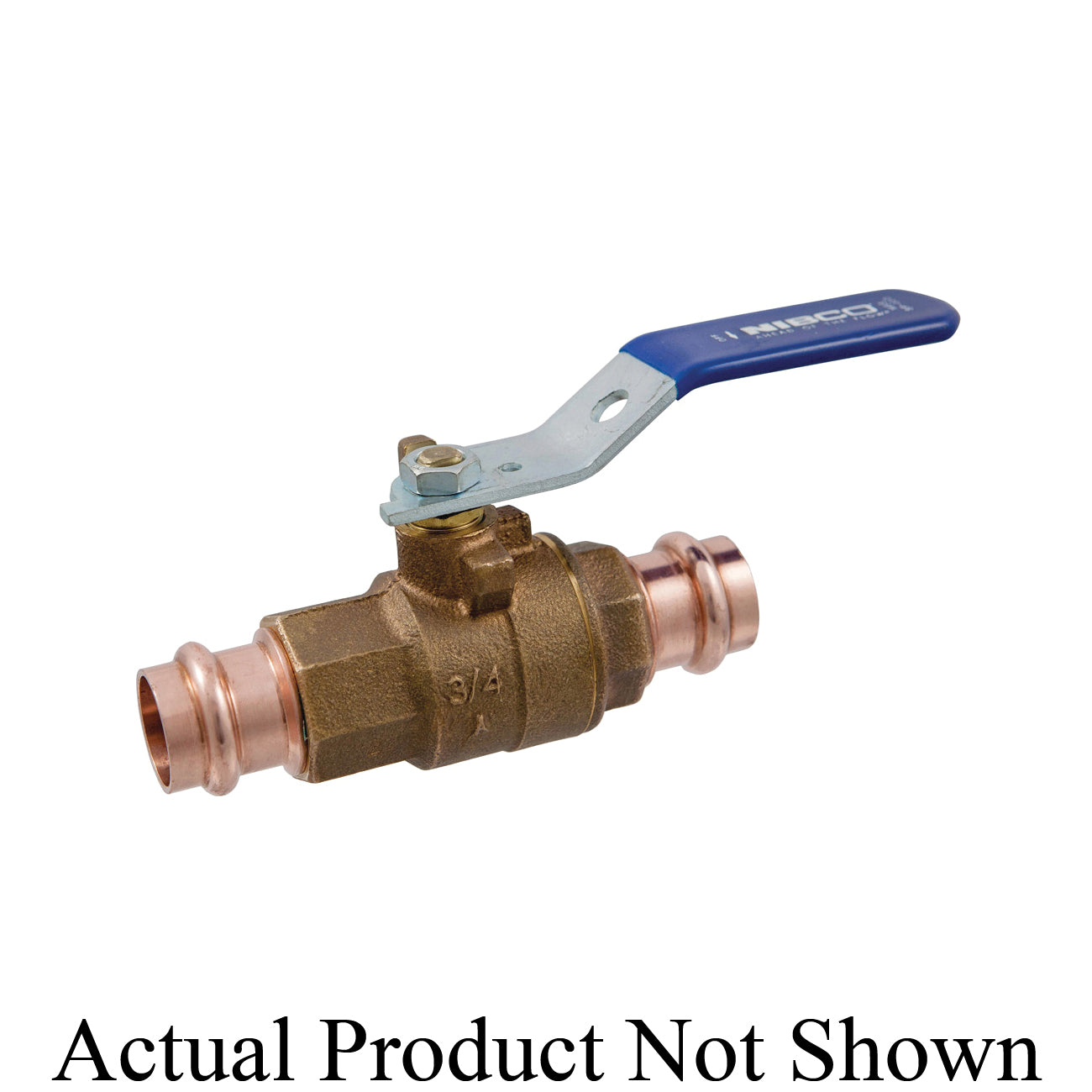

The NIBCO Press System NF84C06 is a two-piece ball valve designed for reliable performance in plumbing applications. This valve features a press x female press end style, making installation straightforward and efficient. The valve is suitable for various uses including HVAC and hot and cold potable water systems.
- Nominal size of one half inch
- Built from bronze with brass ball and silicon bronze trim
- Offers a pressure rating of 250 psi
Product Highlights
This NIBCO valve is designed for easy installation and operation. It ensures a tight seal and minimizes leak risks with its reinforced PTFE seat rings. It is made to handle both cold and hot water services and can withstand high pressure.
Product Information
Standard Information
-
Manufacturer: NIBCO Inc.
-
End Style: Press x Female Press
Technical Specifications
-
Type: 2-Piece
-
Media: Water
-
Pressure Rating: 250 psi
-
Temperature Rating: 250 degrees F
-
Trim Material: Silicon Bronze Stem
-
Softgoods Material: EPDM/PTFE
-
Inlet to Outlet Length: 4.15 inches
-
Top to Inlet Center: 1.9 inches
