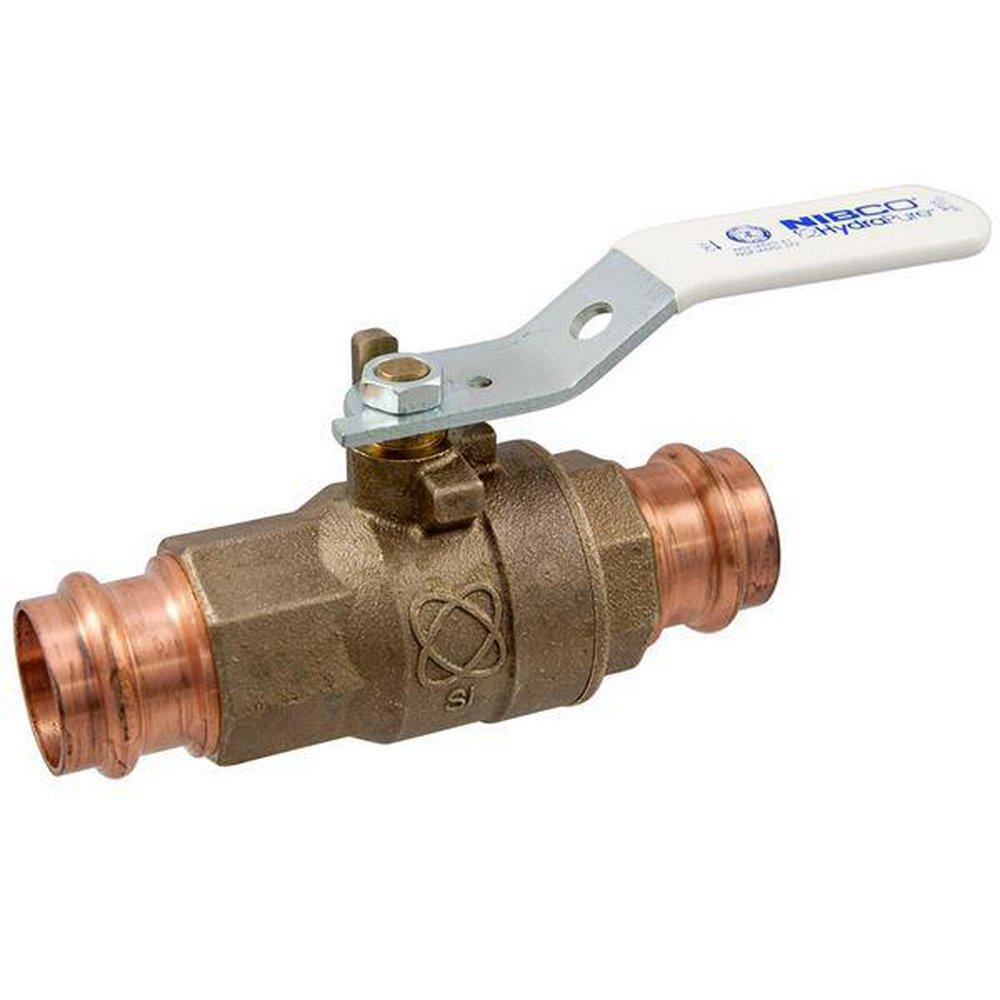

NIBCO NF840XC PC-585-80-LF 1-1/2 in. Silicon Bronze Full Port Press 225# Ball Valve

Product Description

NIBCO NF840XC is a PC-585-80-LF ball valve that features a size of one and a half inches with a female press connection. This two-piece valve is designed to handle a pressure rating of two hundred fifty psi and a maximum temperature of two hundred fifty degrees Fahrenheit. It is ideal for applications in water delivery systems.

• Pressure rating: 250 psi
• Media: Water
• Connection style: Female Press

Product Highlights

This valve is designed for easy installation using the Nibco Press System, offering a reliable solution for water systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Connection Size: 1-1/2 in

Technical Specifications

• Type: 2-Piece
• Actuator Type: Standard Lever
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Pressure Rating: 250 psi
• Port Type: Full
• Temperature Rating: 250 deg F
• Inlet to Outlet Length: 7.56 in
• Top to Inlet Center: 3.32 in
