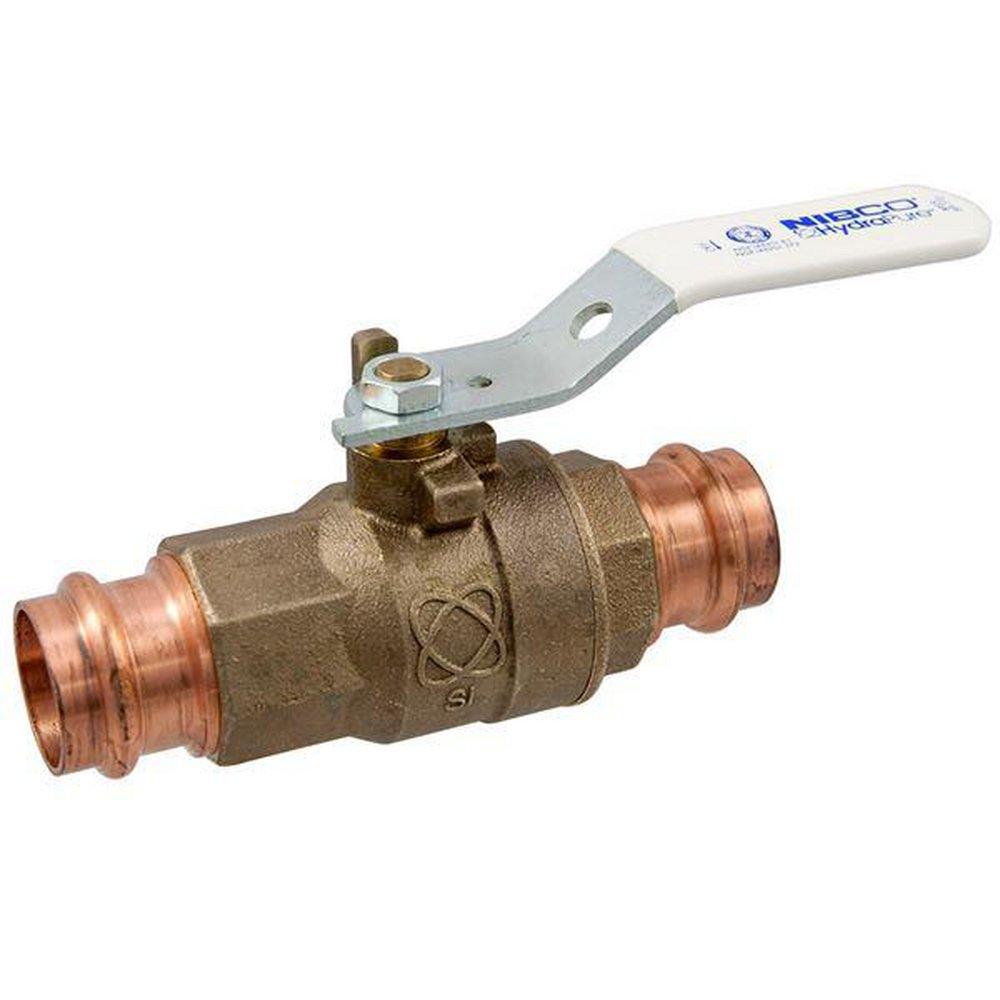

NIBCO NF840XB PC-585-80-LF 250# Ball Valve 1-1/4 in. Female Press

Product Description

The NIBCO NF840XB is a part of the Press System series, this ball valve measures one and one-fourth inches and is designed for water systems. It features a two-piece design with a full port and is built from silicon bronze for durability.

• Lead-free and Dezincification-resistant
• 250 psi pressure rating for non-shock cold working pressure
• Standard lever actuator for easy operation

Product Highlights

This valve is compatible with systems delivering water for human consumption. It conforms to various industry standards, ensuring safety and reliability.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NF840XB

Technical Specifications

• Body Material: Silicon Bronze
• Ball Material: Silicon Bronze
• Nominal Size: 1-1/4 in
• Orifice Size: 1-1/4 in
• Connection Type: Female Press
• Port Type: Full
• Pressure Rating: 250 psi
• Temperature Rating: 250 deg F
• Inlet to Outlet Length: 6.23 in
• Top to Inlet Center: 3.1 in
• Series: PC-585-80-LF
