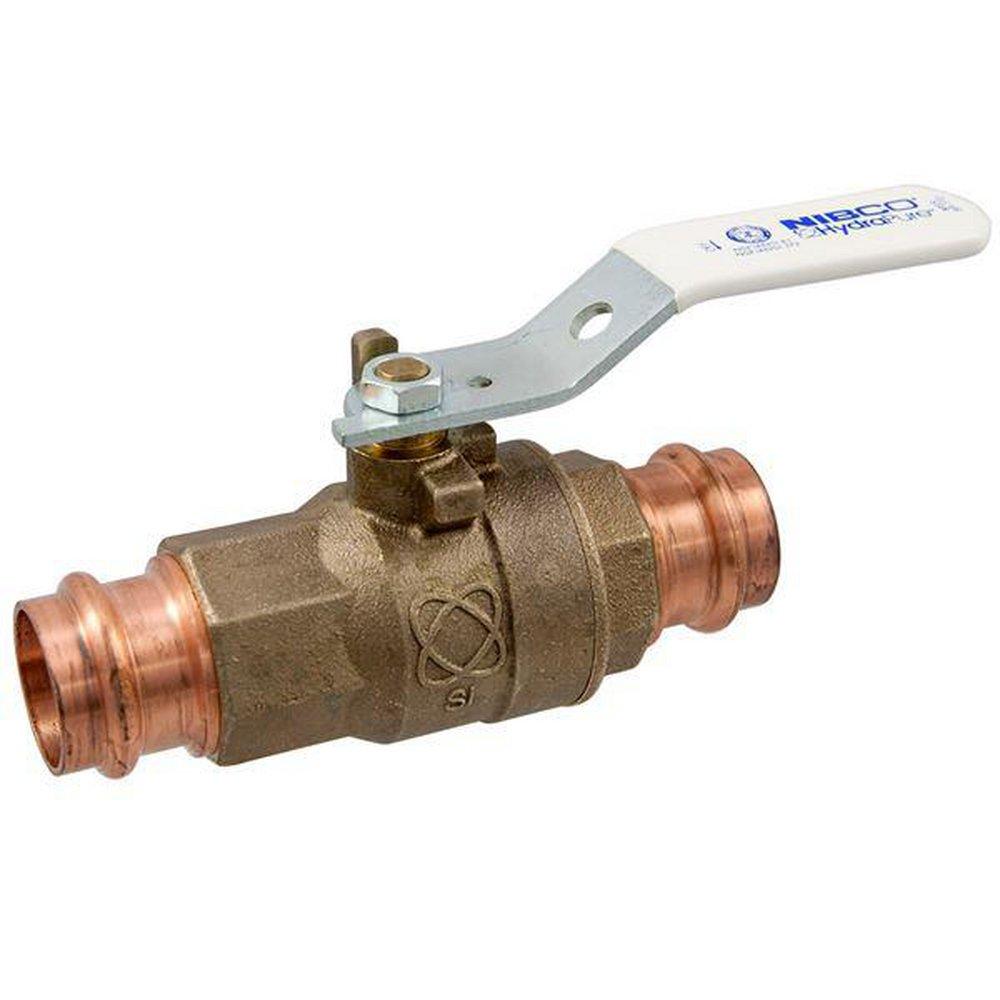

NIBCO NF840XA PC-585-80-LF 1 DZR Silicon Bronze Full Port Press 250# Ball Valve

Product Description

The NIBCO NF840XA is a two-piece ball valve designed for press applications. The ball valve features a one inch nominal size and is constructed from lead-free silicon bronze. It is suitable for use in systems that deliver water for human consumption. This valve is ideal for installations where leak detection and dezincification resistance are important.

• Pressure rating of two hundred fifty psi.
• Full port design for maximized flow.
• Conforms to NSF/ANSI 61 standards for safe water delivery.

Product Highlights

The NIBCO NF840XA offers a reliable solution for plumbing systems needing a dependable ball valve that meets quality standards.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NF840XA

Technical Specifications

• Model: PC-585-80-LF
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Pressure Rating: 250 psi
• Nominal Size: 1 in
• Orifice Size: 1 in
• End Style: Female Press
• Temperature Rating: 250 deg F
• Compatibility: Water
• Inlet to Outlet Length: 5.61 in
• Top to Inlet Center: 2.48 in
