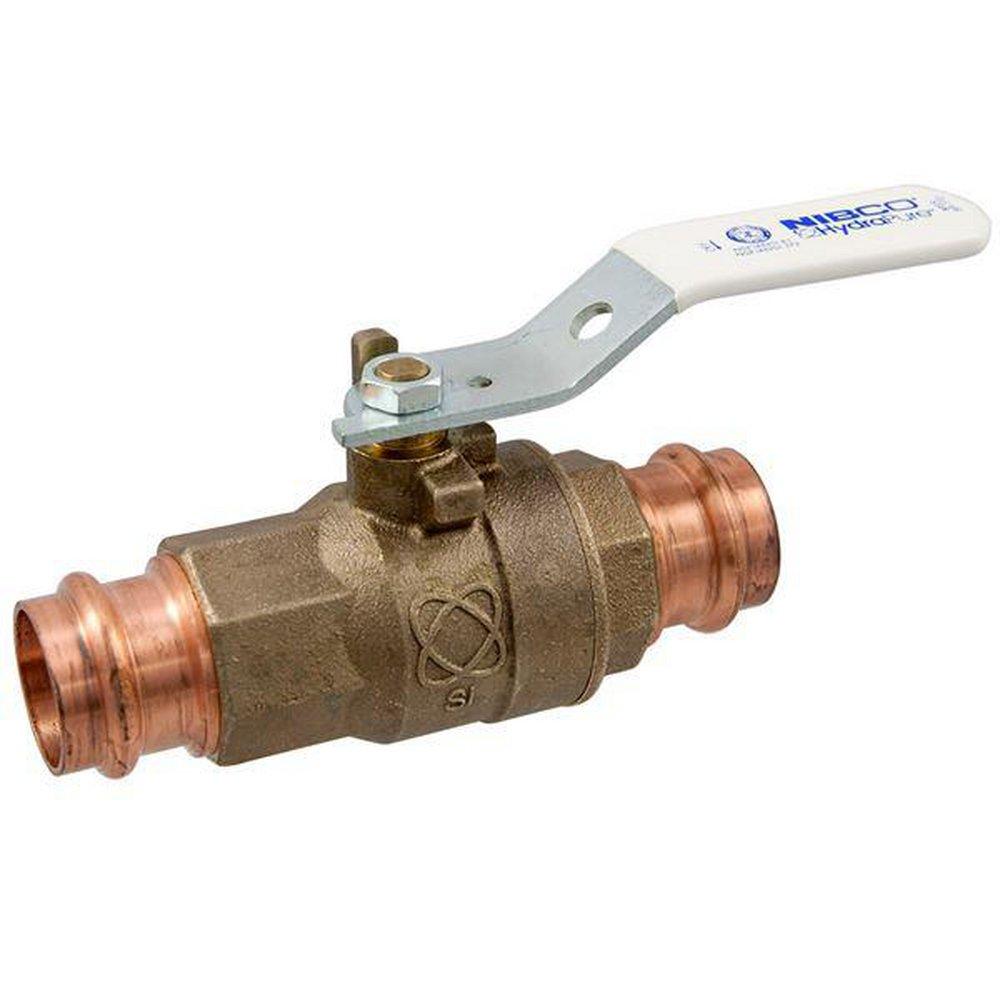

NIBCO NF840X8 PC-585-80-LF 3/4 in. DZR Silicon Bronze Full Port Press 250# Ball Valve

Product Description

NIBCO offers the NF840X8, a PC-585-80-LF 3/4 inch DZR Silicon Bronze Full Port Press Ball Valve. This valve allows for efficient and reliable water flow control in plumbing systems. It is specifically designed for use in systems that deliver water for human consumption.

• Lead-free silicon bronze construction
• Pressure rating of two hundred fifty psi
• Compatible with copper-to-copper connections

Product Highlights

This valve features a blowout-proof stem and reinforced PTFE seat rings, ensuring durability and leak prevention. The full port design allows for unrestricted flow and minimal pressure drop.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NF840X8

Technical Specifications

• Type: 2-Piece
• Nominal Size: 3/4 in.
• Body Material: Silicon Bronze
• Ball Material: Silicon Bronze
• Pressure Rating: 250 psi
• Temperature Rating: 250 degrees Fahrenheit
• Inlet to Outlet Length: 5 in.
• End Style: Female Press
• Seal Material: EPDM
• Trim Material: Silicon Bronze Stem
• Standards/Approval: NSF/ANSI 61/372-8, MSS SP-110/145, IAPMO/ANSI Z1157
