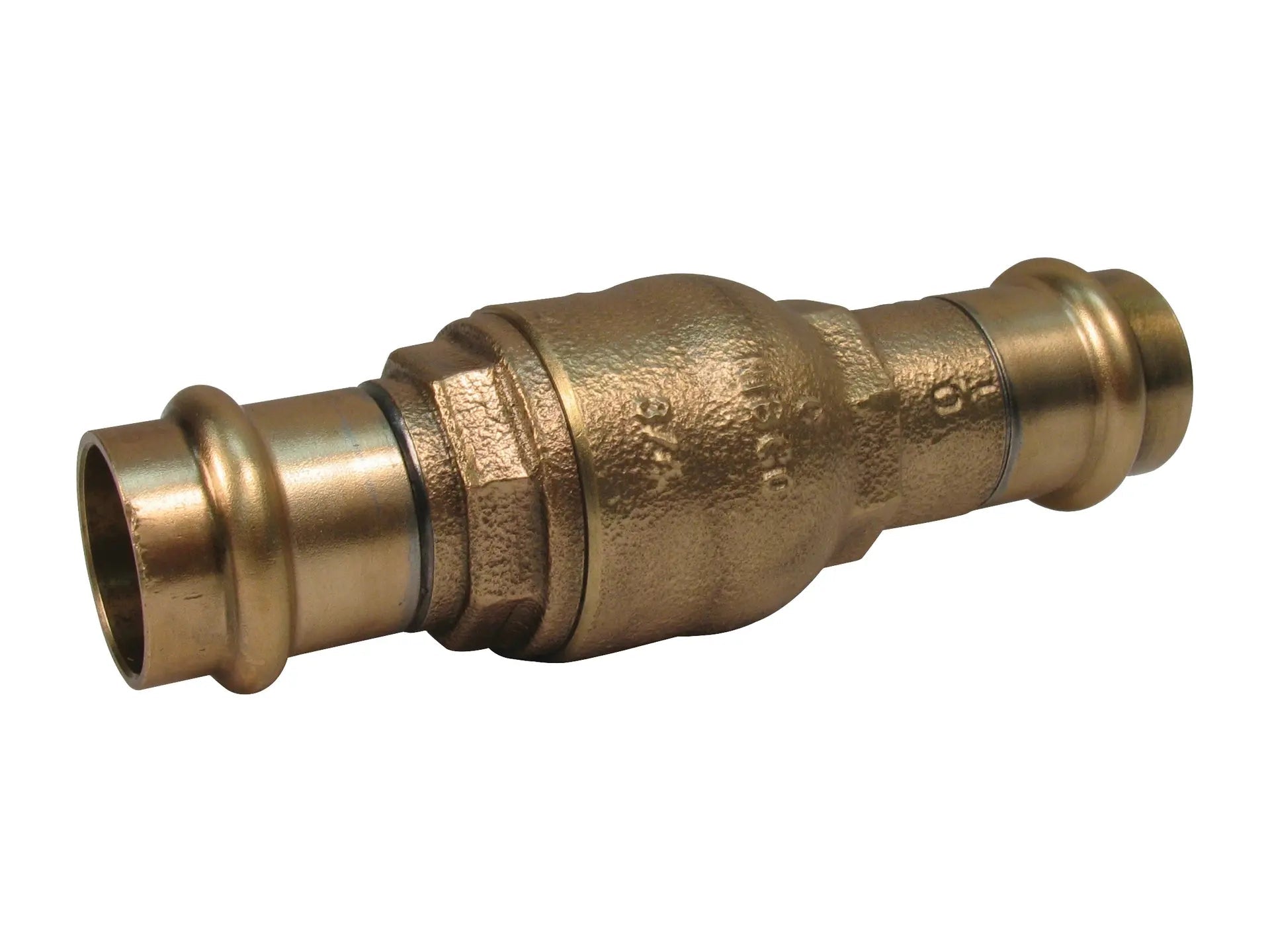

Nibco NF7Q00C Pf-480-Y Bronze Press Spring Check Valve 1-1/2 in.

Product Description

The NIBCO NF7Q00C PF-480-Y bronze press spring check valve features dezincification resistance and an in-line lift type design. It has resilient discs, press x press female end connections, and a maximum service temperature of 250 °F. The valve has a pressure rating of 200 psi non-shock cold working pressure and includes a screw-in bonnet and solid wedge.

• Dezincification resistant
• In-line lift type

Product Highlights

This bronze check valve is suitable for domestic hot and cold water, and HVAC applications. It provides a reliable, spring-assisted self-closing disc for efficient operation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7Q00C
• Country of Origin: US

Technical Specifications

• End Connection: Press
• Material: Bronze
• Nominal Size: 1-1/2 in.
• Type: Check Valve
• UPC Code: 039923242259
• Valve Size: 1 1/2"
• Description: PF480Y 1 1/2 INLINE CV W/FEMALE PRESS END
• eClass Classification: Press Check Valves
• Body Material: Bronze
• Cold Working Pressure: 200 psi
• Connection Size: 1 1/2"
• Connection Type: Female Press
• Disc Material: PTFE
• Disc Style: Resilient
• Height: 2.77"
• Length: 7.16"
• Maximum Temperature: 250 °F
• Turns/operation: Non Manual
• Type Of Check Valve: Inline
• Valve Pattern: In Line
• Valve Type: Check Valve
• Width: 2.77"
• Manufacturer: NIBCO
• Part Number: NF7Q00C
• Model: PF-480-Y
• Applicable Standard: MSS SP-80
• Temperature Rating: 250 DEG F
• Pressure Rating: 200 PSI
• Seal Material: POLYTETRAFLUOROETHYLENE
• Port Type: NON-MANUAL
• Brand: PRESS SYSTEM[R], RING CHECK[R]
• Mfg Part#: NF7Q00C
• Item Name: In-Line Lift Check Valve
• Series/Model: PF-480-Y
• Stem Material: Stainless Steel
• Seat Material: PTFE
• Material Standard: Adapter: ASTM B61, Body: ASTM B584, Body End: ASTM B584, Seat Screw: ASTM A276, Stem: ASTM A582
• Material Specification: Adapter: UNS C92200, Body: UNS C84400, Body End: UNS C84400, Seat Screw:S43000, Washer: UNS C30300
• Industry Standards: MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Lead Free: No
