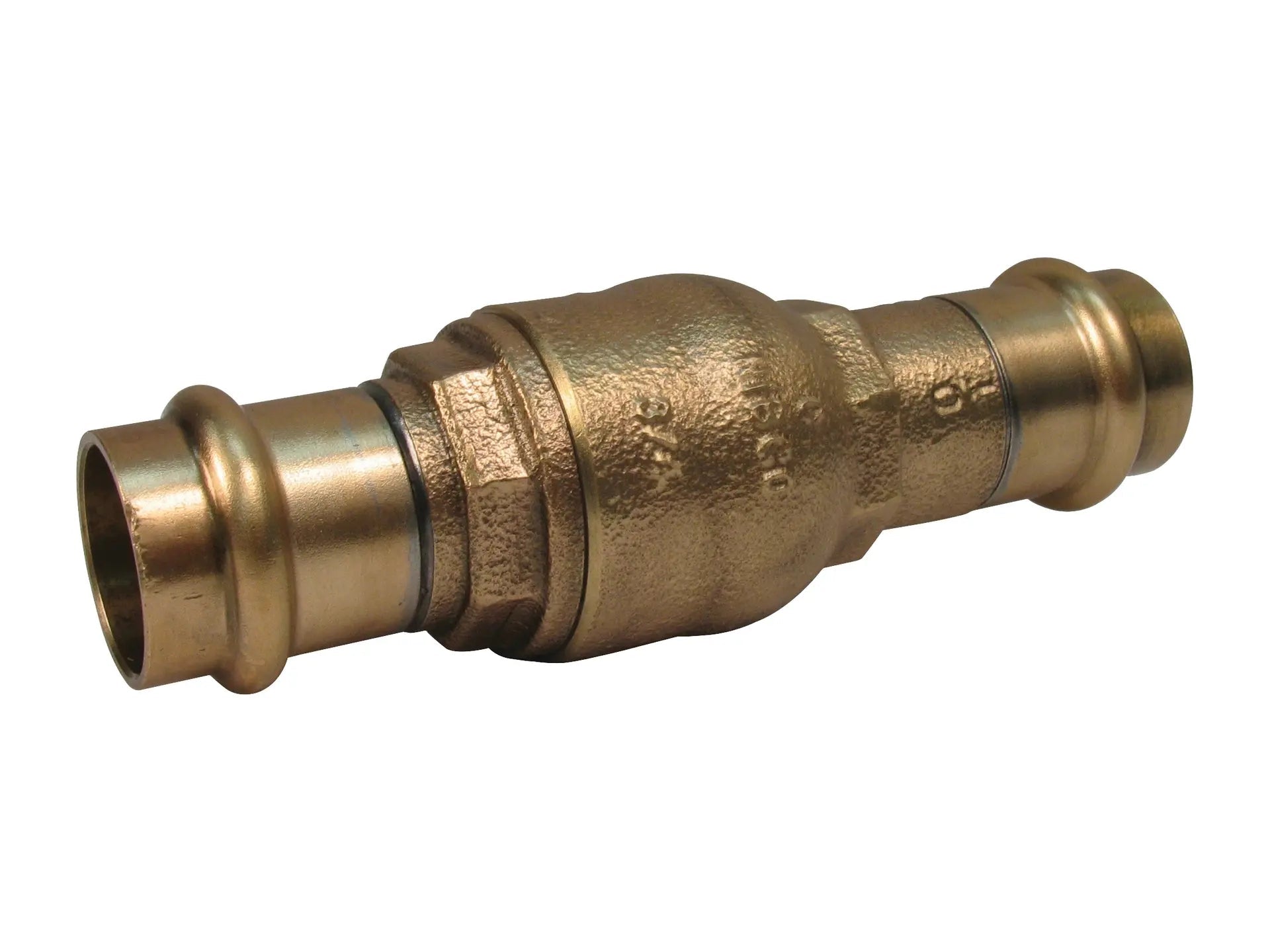

Nibco NF7Q00B Pf-480-y Bronze Press Spring Check Valve 1-1/4 inch

Product Description

The NIBCO NF7Q00B PF-480-Y bronze press spring check valve is designed with an in-line, spring assisted self-closing disc. It features press x press female end connections and is dezincification resistant. This valve is recommended for domestic hot and cold water, and HVAC applications.

• Valve pressure rating 200 psi/13.8 bar non shock cold working pressure
• Maximum service temperature 250°F
• In-line lift type

Product Highlights

The NIBCO Ring Check valve features a stainless steel stem and resilient PTFE disc. It is suitable for hot and cold water and HVAC applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7Q00B
• Country of Origin: US

Technical Specifications

• Type: Check Valve
• Connection Type: Press
• Valve Size: 1 1/4
• Material: Bronze
• Cold Working Pressure: 200 psi
• Maximum Temperature: 250°F
• Disc Style: Resilient
• Disc Material: PTFE
• Valve Type: Check Valve
• Valve Pattern: In-Line
• Type of Check Valve: Inline
• Turns Operations: Non-Manual
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 6.1"
• Width: 2.39"
• Height: 2.39"
• Brand Name: Nibco
• Mfg Part#: NF7Q00B
• Model: PF-480-Y
• Sub Brand: Press System®, Ring Check®
• Item Name: In-Line Lift Check Valve
• Pressure Rating: 200 PSI (CWP) Non-Shock At 250 DEG F
• Temperature Rating: 250 DEG F Maximum Service
• Body Material: Bronze
• Stem Material: Stainless Steel
• Seat Material: PTFE
• Material Standard: Adapter: ASTM B61, Body: ASTM B584, Body End: ASTM B584, Seat Screw: ASTM A276, Stem: ASTM A582
• Material Specification: Adapter: UNS C92200, Body: UNS C84400, Body End: UNS C84400, Seat Screw:S43000, Washer: UNS C30300
• Industry Standards: MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Lead Free: No
• UPC Code: 039923242242
• Weight: 1.722 lb
