Nibco NF7Q00A Pf480-Y Ring Check In-line Lift Check Valve 200 PSI

Product Description

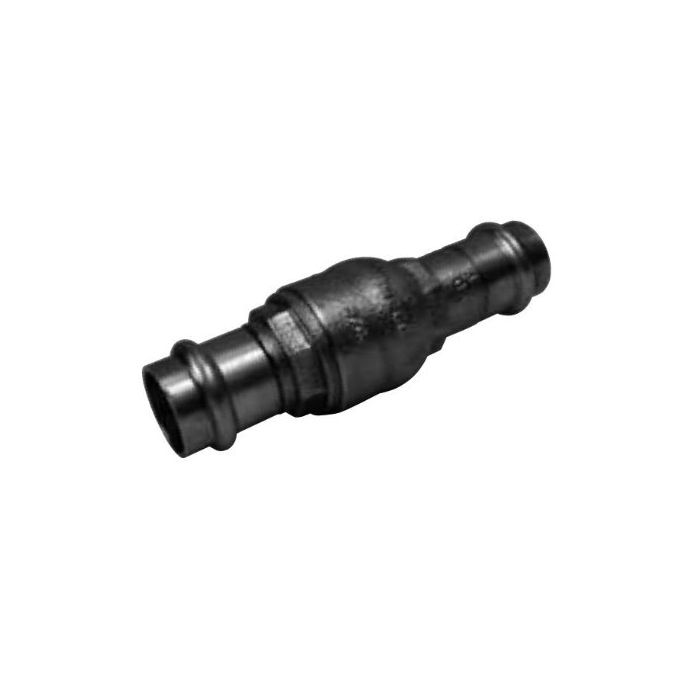

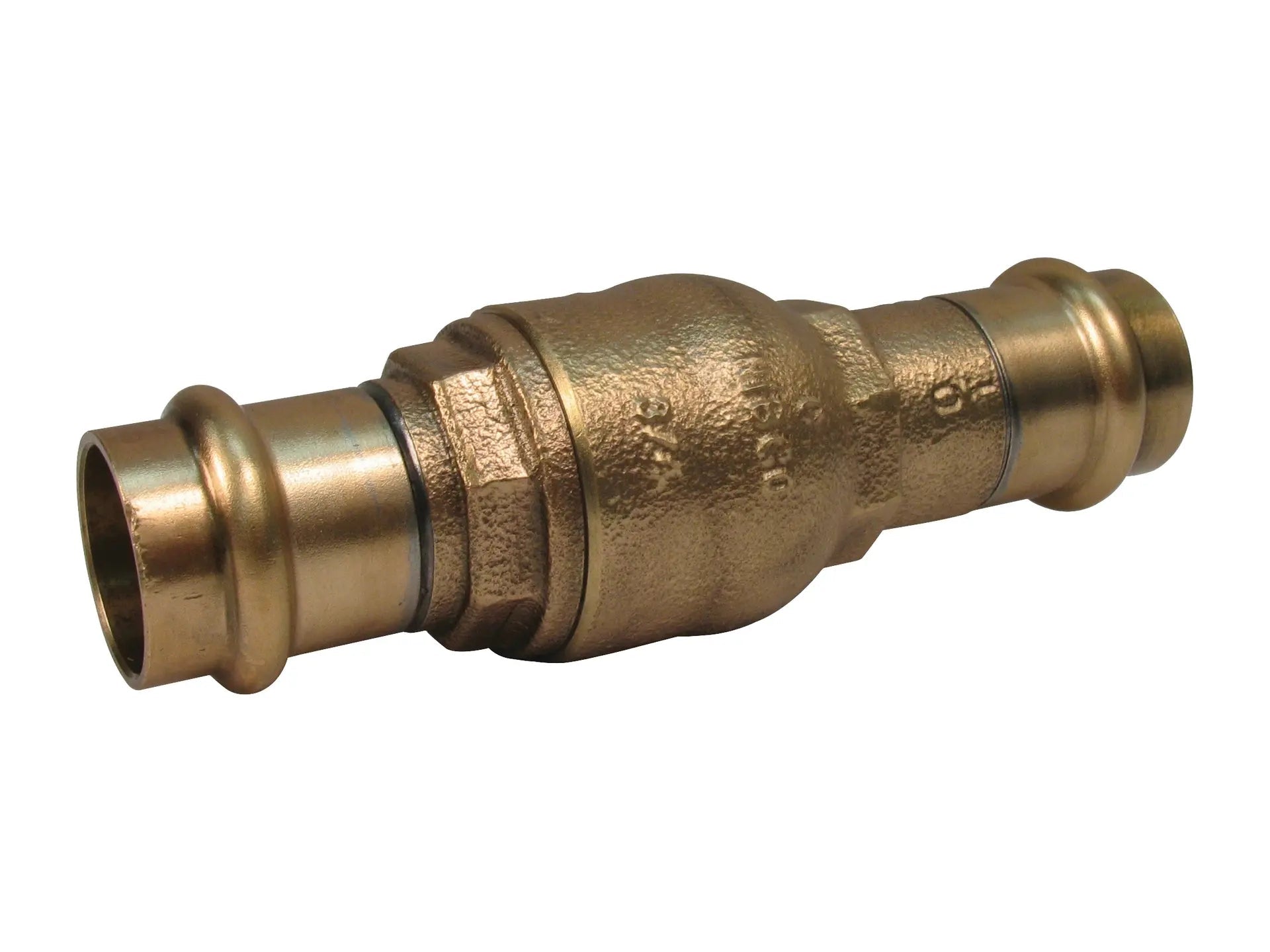

The NIBCO Ring Check valve, MPN NF7Q00A, features an in-line, spring-assisted self-closing disc. This two-piece bronze valve has a stainless steel stem and resilient PTFE disc. It is suitable for domestic hot and cold water and HVAC applications. The press-to-connect end connections allow for quick and easy joinery to the piping system.

• Dezincification resistant
• Resilient disc
• Use in U.S. drinking water applications is prohibited after January 3, 2014

Product Highlights

The NIBCO Ring Check valve provides a reliable solution for preventing backflow in various plumbing and HVAC systems, ensuring efficient and safe operation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7Q00A
• Country of Origin: US

Technical Specifications

• UPC Code: 039923242235
• Type: Check Valve
• Connection Type: Press
• Valve Size: 1"
• Material: Bronze
• Description: PF480Y 1 INLINE CV W/FEMALE PRESS ENDS
• eClass Classification: Press Check Valves
• Weight: 1.178 lb
• Body Material: Bronze
• Domestic / Import: Domestic
• End Style: PressxFemale Press
• Nominal Size: 1 in
• Actuator Type: Spring Actuated
• Dimensions: 2 in H
• Manufacturer: NIBCO Inc.
• Manufacturer #: NF7Q00A
• Pressure Rating: 200 psi
• Series: PF-480-Y
• Softgoods Material: EPDM
• Trim Material: Stainless Steel
• Cold Working Pressure: 200 psi
• Connection Size: 1"
• Disc Material: PTFE
• Disc Style: Resilient
• Height: 2.1"
• Length: 5.75"
• Maximum Temperature: 250 NIBCO NF7Q00A PF480-Y Ring Check In-line Lift Check Valve 200 PSI
• specifications: {'UPC Code': '039923242235', 'Type': 'Check Valve', 'Connection Type': 'Press', 'Valve Size': '1"', 'Material': 'Bronze', 'Description': 'PF480Y 1 INLINE CV W/FEMALE PRESS ENDS', 'eClass Classification': 'Press Check Valves', 'Weight': '1.178 lb', 'Body Material': 'Bronze', 'Domestic / Import': 'Domestic', 'End Style': 'PressxFemale Press', 'Nominal Size': '1 in', 'Actuator Type': 'Spring Actuated', 'Dimensions': '2 in H', 'Manufacturer': 'NIBCO Inc.', 'Manufacturer #': 'NF7Q00A', 'Pressure Rating': '200 psi', 'Series': 'PF-480-Y', 'Softgoods Material': 'EPDM', 'Trim Material': 'Stainless Steel', 'Cold Working Pressure': '200 psi', 'Connection Size': '1"', 'Disc Material': 'PTFE', 'Disc Style': 'Resilient', 'Height': '2.1"', 'Length': '5.75"', 'Maximum Temperature': '250°F', 'Potable Water Code': 'Not LL Compliant - Not Intended for Potable Water', 'Turns/operation': 'Non Manual', 'Type Of Check Valve': 'Inline', 'Valve Pattern': 'In Line', 'Valve Type': 'Check Valve', 'Width': '2.1"', 'MPN': 'NF7Q00A', 'Turns Operations': 'Non-Manual'}
