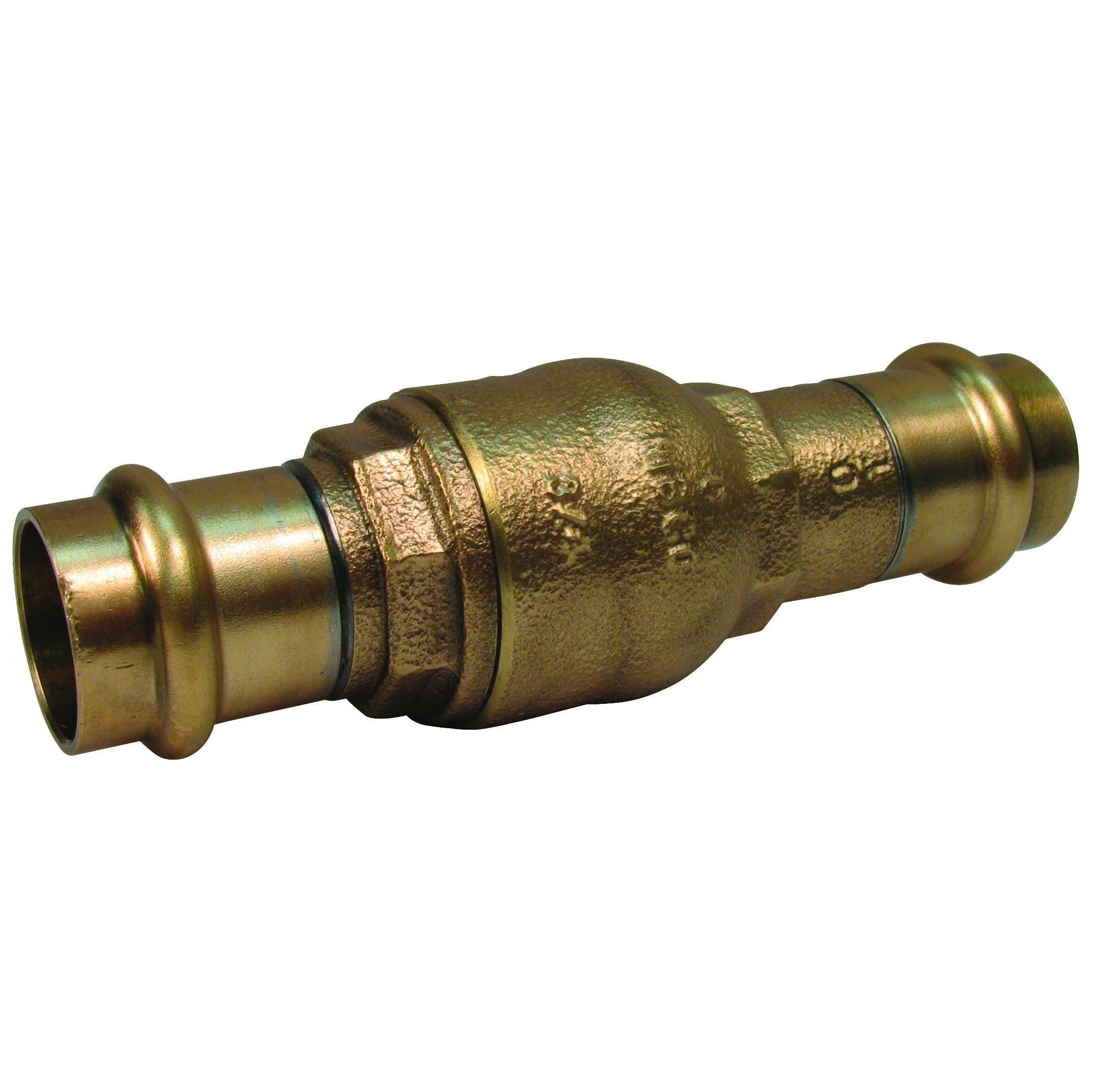

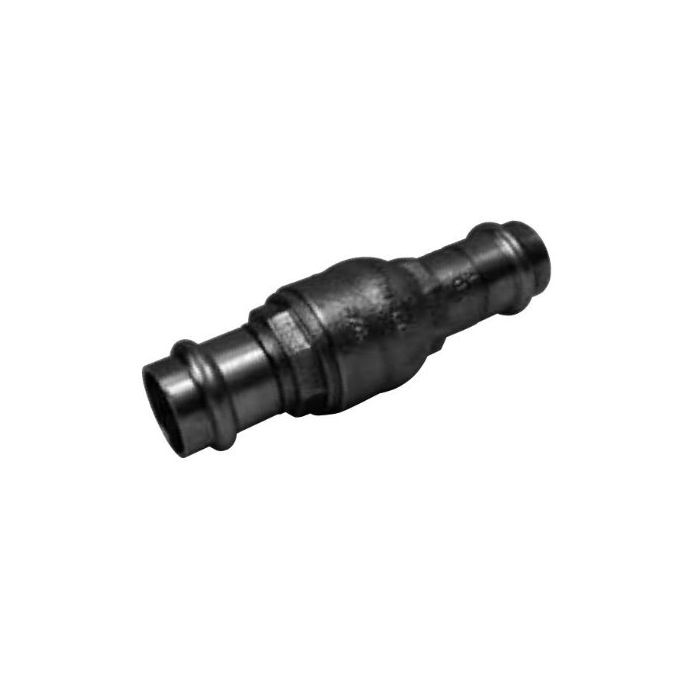

Nibco NF7Q008 pf480-y Ring Check In-Line Lift Check Valve 3/4 inch

Product Description

The NIBCO Ring Check valve, MPN NF7Q008, features an in-line, spring-assisted self-closing disc. This two-piece valve includes a stainless steel stem and resilient PTFE disc, suitable for domestic hot and cold water and HVAC applications. The NIBCO Press System is user-friendly and installs quickly, with a visible "N" witness mark when crimped.

• Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure
• Resilient discs
• Dezincification resistant

Product Highlights

This bronze, in-line lift, spring-actuated, lead-free check valve is dezincification resistant and conforms to MSS SP-80.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7Q008
• Country of Origin: Domestic

Technical Specifications

• UPC Code: 039923242228
• Type: Check Valve
• Connection Type: Press
• Valve Size: 3/4
• Material: Bronze
• Description: PF480Y 3/4 INLINE CV W/FEMALE PRESS ENDS
• eClass Classification: Press Check Valves
• Weight: 0.75 lb
• Actuator Type: Spring
• Body Material: Bronze
• Dimensions: 1.63 in H
• Domestic/Import: Domestic
• End Style: Press x Female Press
• Nominal Size: 3/4 in
• Pressure Rating: 200 psi
• Series: PF-480-Y
• Softgoods Material: EPDM
• Temperature Rating: 200 deg F Service
• Trim Material: Stainless Steel
• Manufacturer Part Number: NF7Q008
• Manufacturer: NIBCO
• Part Number: NF7Q008
• Model: PF-480-Y
• Valve Type: Check Valve
• Valve Pattern: In-Line
• Connection: 3/4" Female Press
• Cold Working Pressure: 200 psi
• Maximum Temperature: 250°F
• Disc Style: Resilient
• Disc Material: PTFE
• Type of Check Valve: Inline
• Turns Operations: Non-Manual
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 5.11"
• Width: 1.61"
• Height: 1.61"
