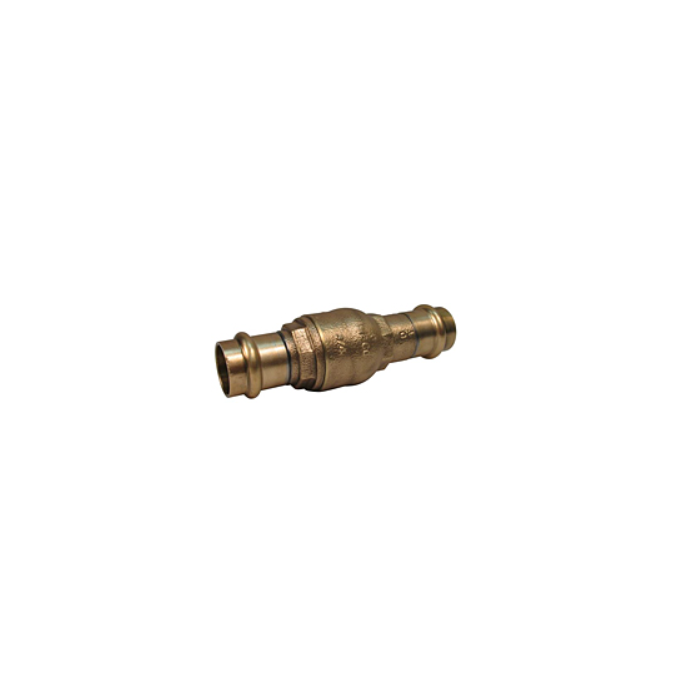

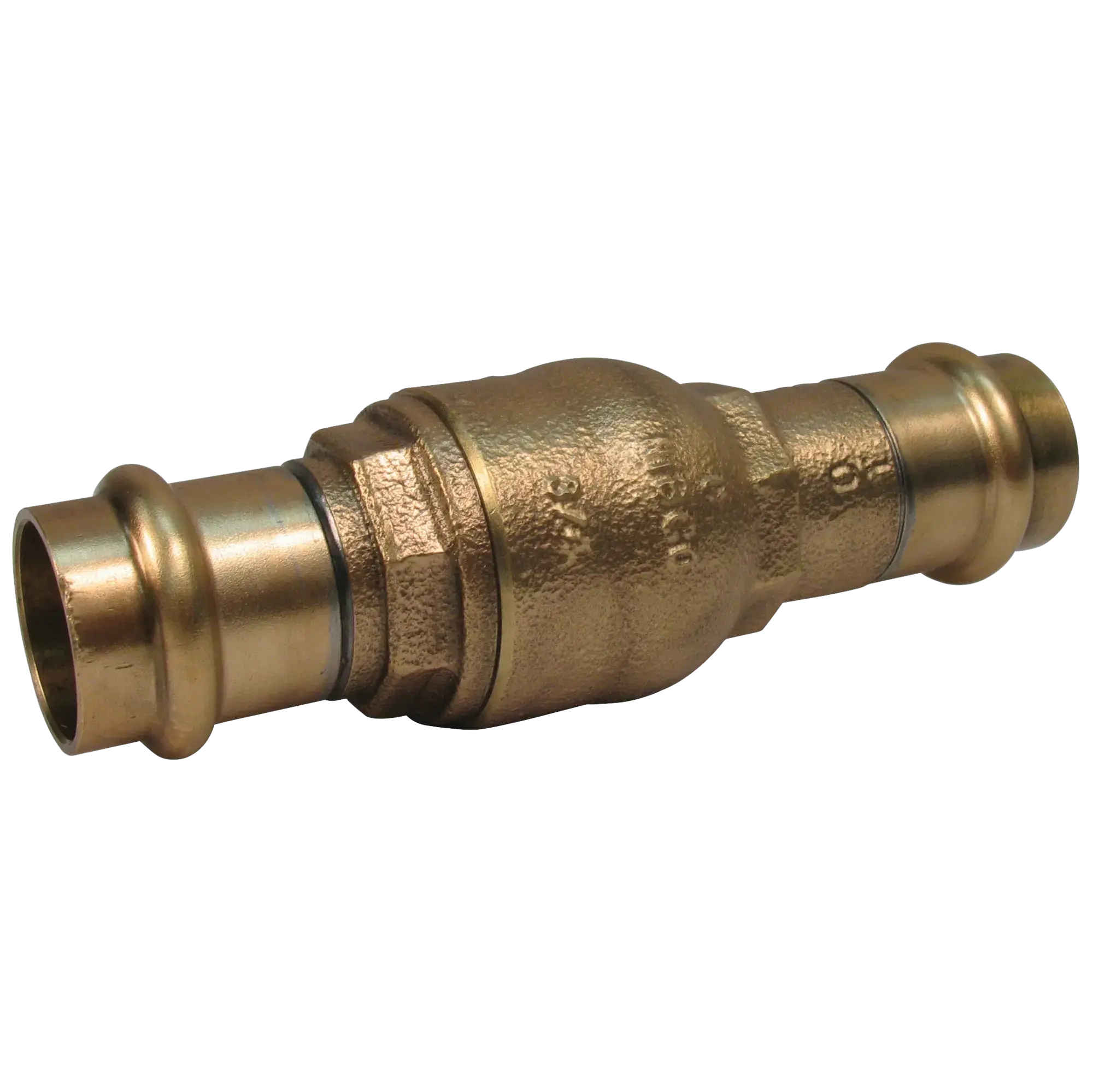

Nibco NF7Q006 Pf480-y Check Valve 1/2 Inch 200 PSI

Product Description

The NIBCO NF7Q006 Ring Check valve is designed with an in-line, spring assisted self-closing disc. This two-piece bronze valve features a stainless steel stem and resilient PTFE disc. Recommended for domestic hot and cold water and HVAC. It features press-to-connect end connections for quick and easy joinery to the piping system.

• Valve pressure rating 200 psi/13.8 bar non shock cold working pressure
• Maximum service temperature 250°F
• Dezincification resistant

Product Highlights

The NIBCO Ring Check valve features press-to-connect end connections with an inboard bead and EPDM O-rings for a clean, permanent, watertight seal.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7Q006
• Country of Origin: US

Technical Specifications

• UPC Code: 039923242211
• Type: Check Valve
• Connection Type: Press
• Valve Size: 1/2"
• Material: Bronze
• Weight: 0.517 lb
• MPN: NF7Q006
• Manufacturer Part Number: NF7Q006
• Manufacturer: Nibco
• Model: PF-480-Y
• Valve Pattern: In-Line
• Cold Working Pressure: 200 psi
• Maximum Temperature: 250°F
• Disc Style: Resilient
• Disc Material: PTFE
• Type Of Check Valve: Inline
• Turns Operations: Non-Manual
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 4.08"
• Width: 1.37"
• Height: 1.37"
• Sub Brand: Press System®, Ring Check®
• Item Name: In-Line Lift Check Valve
• Pressure Rating: 200 PSI (CWP) Non-Shock At 250 DEG F
• Temperature Rating: 250 DEG F Maximum Service
• Body Material: Bronze
• Stem Material: Stainless Steel
• Seat Material: PTFE
• Material Standard: Adapter: ASTM B61, Body: ASTM B584, Body End: ASTM B584, Seat Screw: ASTM A276, Stem: ASTM A582
• Material Specification: Adapter: UNS C92200, Body: UNS C84400, Body End: UNS C84400, Seat Screw:S43000, Washer: UNS C30300
• Industry Standards: MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Lead Free: No
• Nominal Size: 1/2 IN
