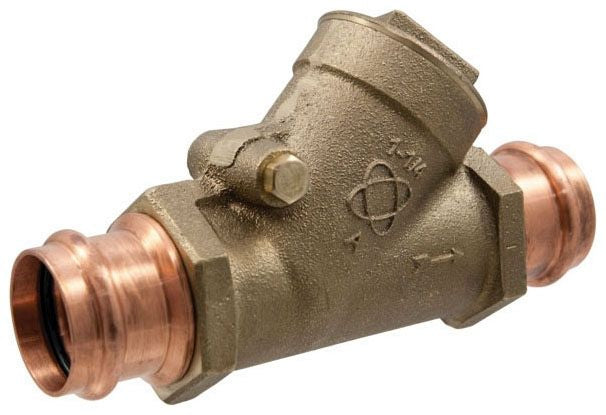

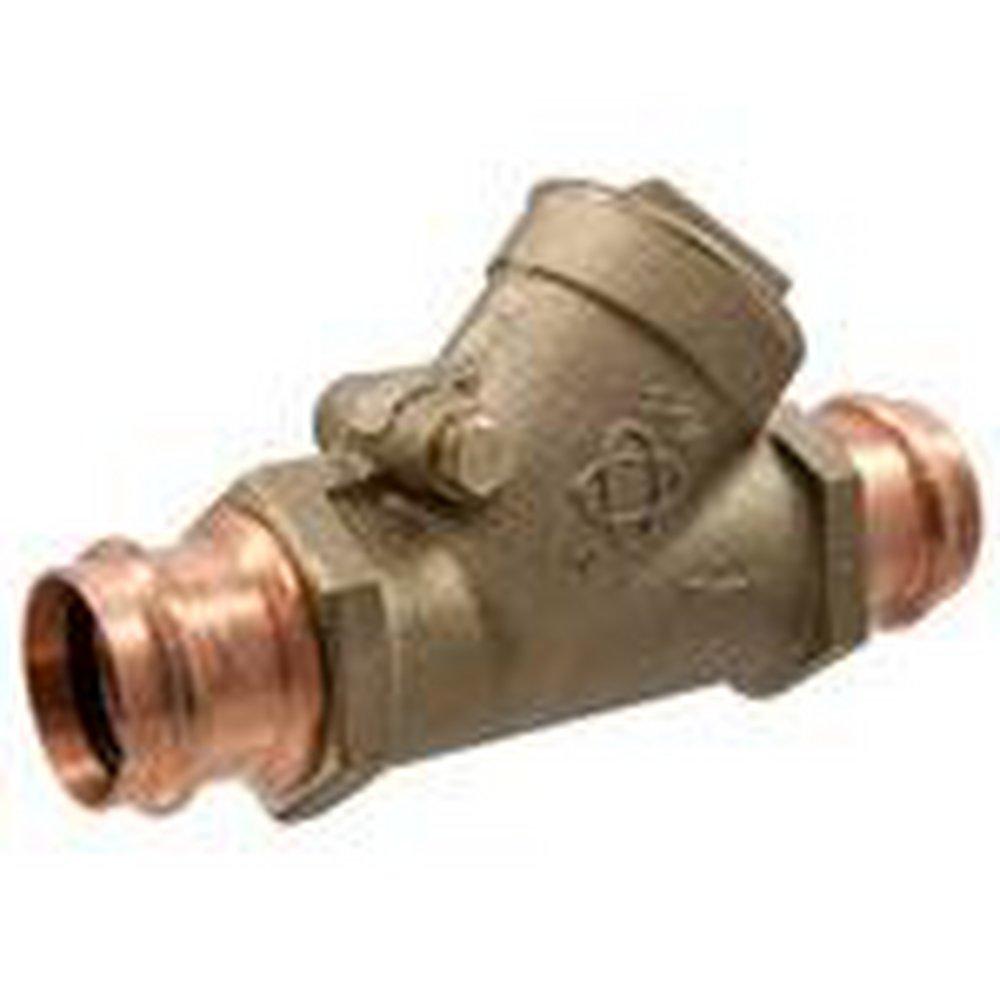

Nibco NF7400XD pf-413-y-lf bronze press swing check valve 2 in.

Product Description

The NIBCO PF-413-Y-LF is a bronze press swing check valve with a Y-pattern design and renewable seat and disc. This valve has a pressure rating of 200 psi/13.8 bar non-shock cold working pressure. It prevents backflow by automatically closing when fluid reverses direction and features press end connections for easy installation.

• Y-pattern
• Renewable seat and disc
• Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure

Product Highlights

Lead-free valve conforms to MSS SP-80, and is suitable for commercial and residential construction delivering water for human consumption.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7400XD

Technical Specifications

• Connection Type: Press x Press
• Connection Method: Press
• Material: Bronze
• Lead Free: Yes
• UPC Code: 039923360717
• Type: Check Valve
• Valve Size: 2
• Description: PC413YLF 2 SWG CHECK W/FEMALE PRESS
• Body Material: Bronze
• Domestic / Import: Domestic
• End Style: Female Press
• Low Lead Compliance: Yes
• Nominal Size: 2 in
• Inlet to Outlet Length: 5.85 in
• Manufacturer: NIBCO Inc.
• Manufacturer #: NF7400XD
• Pressure Rating: 200 psi
• Softgoods Material: PTFE/EPDM
• Top to Inlet Center: 3.84 in
• Applicable Standard: NSF/ANSI 61/372, MSS SP-80
• End Connection: FEMALE PRESS X FEMALE PRESS
• Port Type: NON-MANUAL
• Model: PC-413-Y-LF
