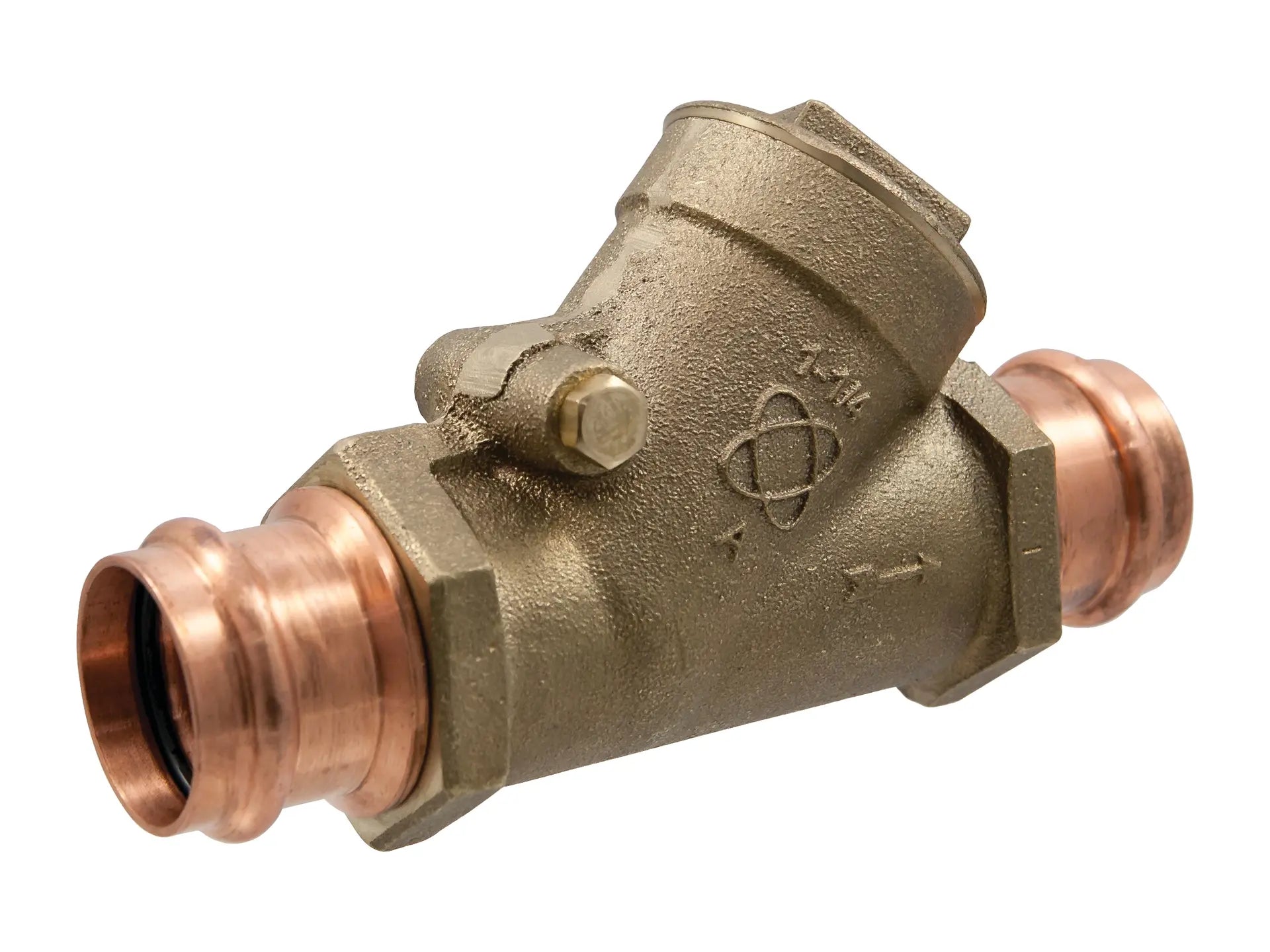

Nibco NF7400XC Pf-413-Y-Lf Bronze Press Swing Check Valve 1-1/2 in.

Product Description

The NIBCO NF7400XC is a Pf-413-Y-Lf bronze press swing check valve. This valve features a Y-pattern design and a renewable seat and disc. It is designed for use in systems that deliver water for human consumption and prevents backflow by automatically closing when fluid reverses direction.

• Y-pattern design
• Renewable seat and disc
• Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure

Product Highlights

The NIBCO bronze swing check valve features press end connections for ease of installation and a screw-in bonnet for accessibility to repair or replace parts.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7400XC
• Country of Origin: N/A

Technical Specifications

• Type: Check Valve
• Connection Type: Press
• Valve Size: 1 1/2
• Material: Bronze
• Pressure Rating: 200 psi
• Body Material: Bronze
• End Style: Female Press
• Nominal Size: 1-1/2 In
• Softgoods Material: PTFE/EPDM
• Temperature Rating: 250 deg F
• Valve Pattern: Y
• Lead-Free: Yes
• Cold Working Pressure: 200 psi
• Disc Style: Renewable
• Disc Material: PTFE
• Seat Style: Regrindable
• Type of Check Valve: Swing
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 7.77"
• Width: 3.88"
• Height: 2.76"
• Domestic/Import: Domestic
• Inlet to Outlet Length: 5 in
• Low Lead Compliance: Yes
• Top to Inlet Center: 3.09 in
