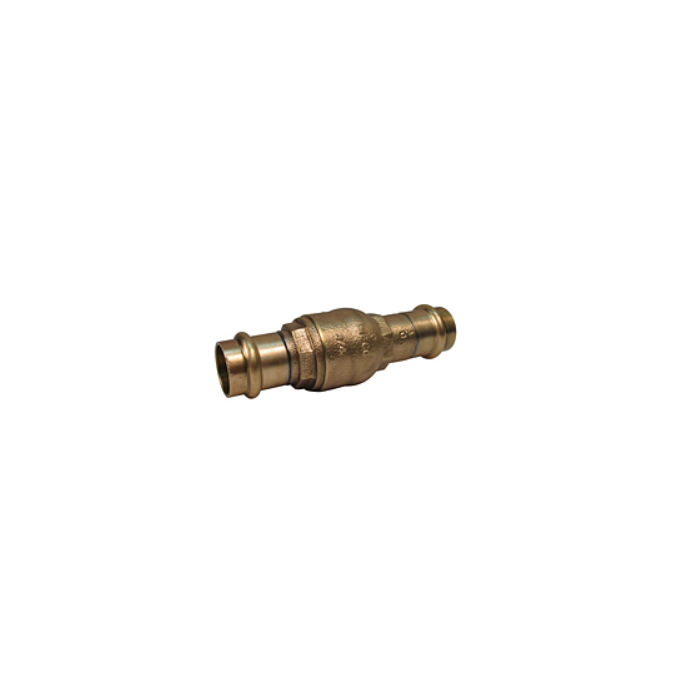

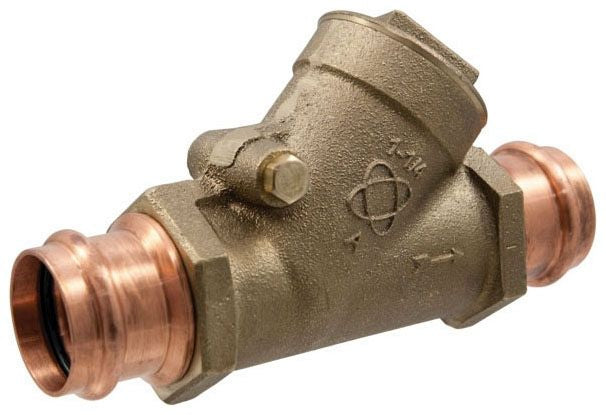

Nibco NF7400XB Pf-413-Y-Lf Bronze Press Swing Check Valve 1-1/4 in.

Product Description

The NIBCO NF7400XB PF-413-Y-LF bronze press swing check valve features a Y-pattern and a renewable seat and disc. It has a valve pressure rating of 200 psi/13.8 bar non-shock cold working pressure and is compliant with NSF/ANSI/CAN-61 and 372 standards. The valve's dimensions and workmanship conform to MSS SP-80.

• Y-pattern
• Renewable seat and disc
• Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure

Product Highlights

This lead-free bronze check valve is designed for use in systems that deliver water for human consumption, including commercial and residential construction.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7400XB

Technical Specifications

• MPN: NF7400XB
• Brand: NIBCO
• UPC Code: 039923360694
• Type: Check Valve
• Connection Type: Press
• Valve Size: 1 1/4
• Material: Bronze
• Description: PC413YLF 1 1/4 SWG CHECK W/FEMALE PRESS
• Manufacturer Part Number: NF7400XB
• UPC / GTIN: 039923360694
• Manufacturer: Nibco
• Applicable Standard: NSF/ANSI 61/372, MSS SP-80
• Application: DELIVER WATER FOR HUMAN CONSUMPTION, INCLUDING COMMERCIAL AND RESIDENTIAL CONSTRUCTION
• Body Material: BRONZE
• Pressure Rating: 200 PSI
• End Connection: FEMALE PRESS X FEMALE PRESS
• Seal Material: POLYTETRAFLUOROETHYLENE
• Seat Material: POLYTETRAFLUOROETHYLENE
• Disc Material: PTFE
• Model: PC-413-Y-LF
• Nominal Size: 1-1/4 INCH X 1-1/4 INCH
• Lead-Free: LEAD-FREE
• Connection: Press
• Size: 1-1/4 in
