NIBCO NF7400D PF413Y 2 CHECK VALVE BRONZE SWING PRESS

Product Description

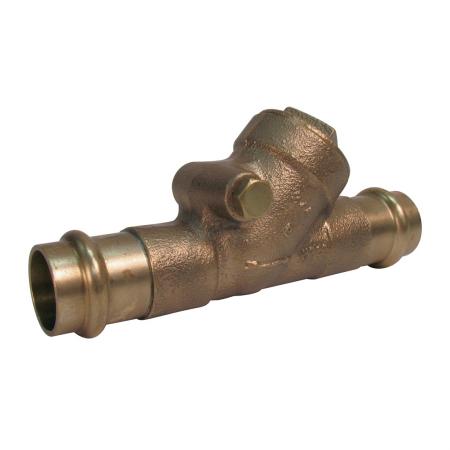

The NIBCO NF7400D swing check valve with a 2-inch female press end is designed for horizontal flow applications. This valve is made from sturdy bronze, ensuring longevity and resistance to corrosion.

• Pressure rated at 200 psi for non-shock cold water.
• Temperature capability up to 250 degrees Fahrenheit.
• Features a renewable seat and disc, making it suitable for regrinding.

Product Highlights

Engineered for durability, the NIBCO NF7400D is optimal for industrial use. It includes EPDM softgoods for reliable sealing and is not compliant with low lead regulations, making it suitable for applications where lead content is not regulated.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NF7400D
• Material: Bronze

Technical Specifications

• Type: Y-Pattern
• End Style: Press x Female Press
• Nominal Size: 2 inches
• Pressure Rating: 200 psi
• Temperature Rating: 250 degrees Fahrenheit
• Inlet to Outlet Length: 6.72 inches
• Top to Inlet Center: 3.61 inches
