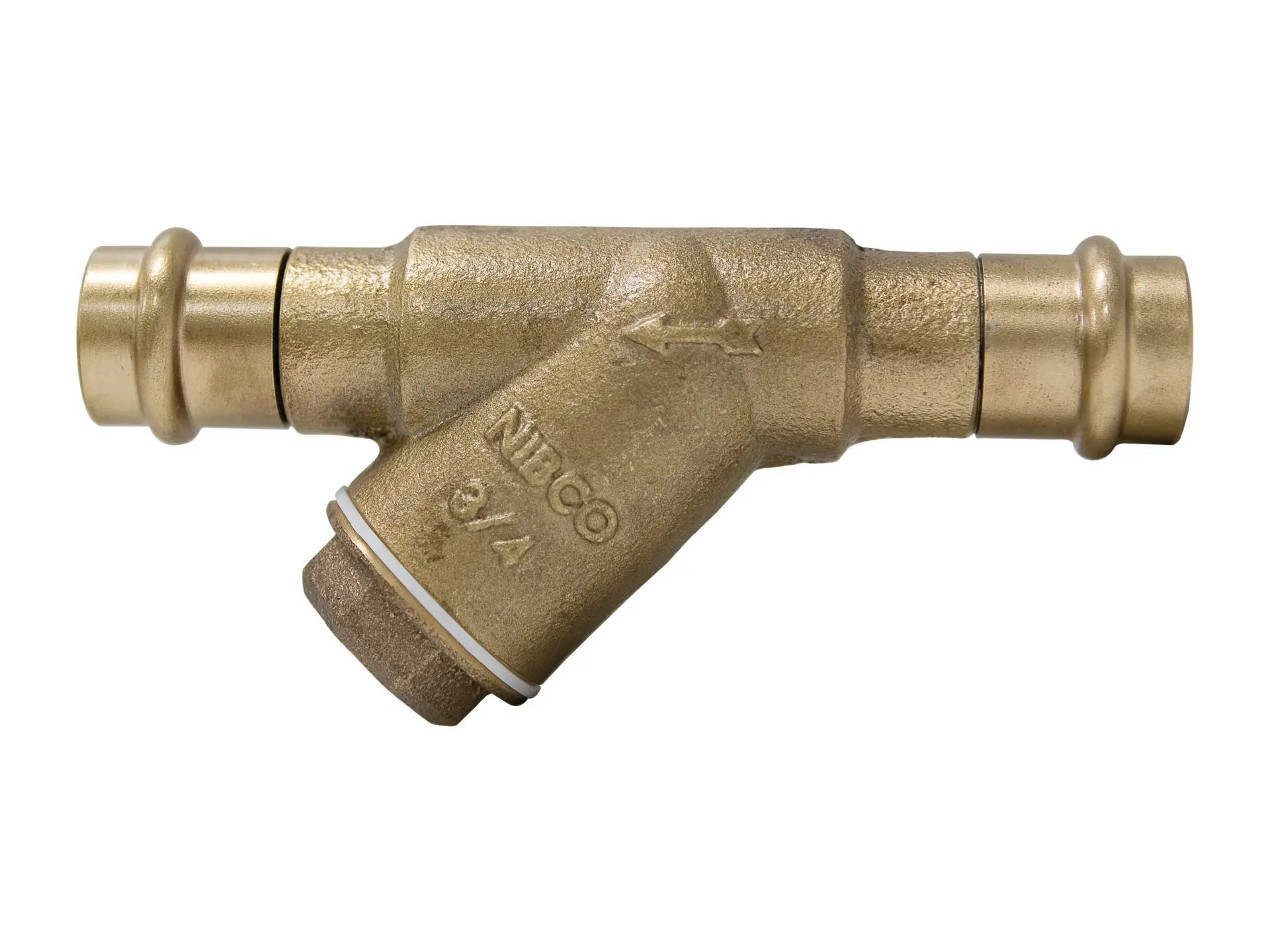

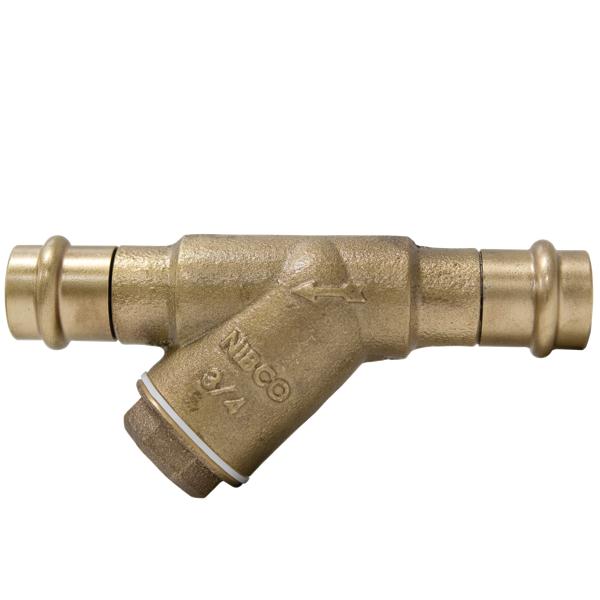

Nibco NF2RB08 Press 3/4 inches Y-Strainer Bronze SS Screen with Solid Cap 200PSI

Product Description

The NIBCO NF2RB08 press Y-strainer protects equipment by filtering solids from flowing liquids in the piping system with a stainless steel perforated screen. This 3/4" bronze Y-strainer features press x press female end connections and a solid cap for screen maintenance. Rated to 200 psi, it's designed for quick, easy installation.

• Protects equipment by filtering solids from flowing liquids
• Features a stainless steel perforated screen
• User friendly, quick and easy to install

Product Highlights

The NIBCO Y-strainer provides a clean, permanent, watertight seal in seconds, with no flame, solder, or flux.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF2RB08
• Country of Origin: US

Technical Specifications

• Type: Strainer
• Connection Type: Female Press x Female Press
• Size: 3/4 inches
• Material: Bronze
• Type of Strainer Basket: Perforated Screen
• Type of Strainer Cap: Solid Cap
• Manufacturer: NIBCO
• Part Number: NF2RB08
• Model: PF-222-B
• Valve Type: Strainer
• Strainer Type: Y-Strainer
• Screen Type: Perforated
• Screen Material: Stainless Steel
• Maximum Temperature: 250°F
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Valve pressure rating: 200 psi/13.8 bar non shock cold working pressure
• Maximum service temperature: 250°F
• Screen: Perforated stainless steel
• Cap: Solid cap
• Class: 125
• End connections: Press x press female
• Conforms to: MSS SP-110
• Length: 5.9 inches
• Width: 2.84 inches
• Height: 1.62 inches
