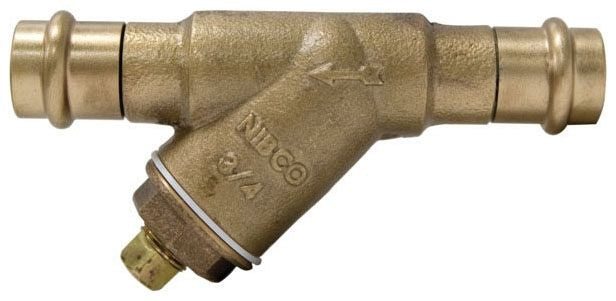

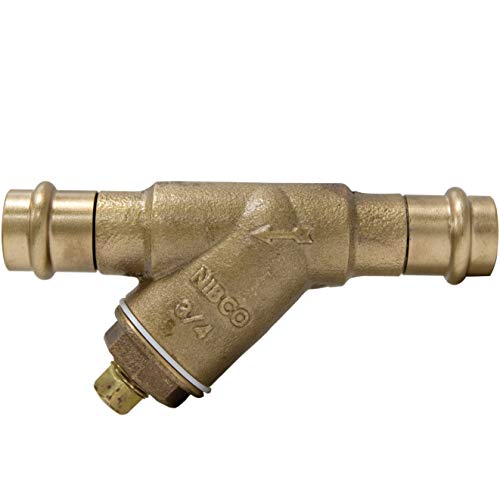

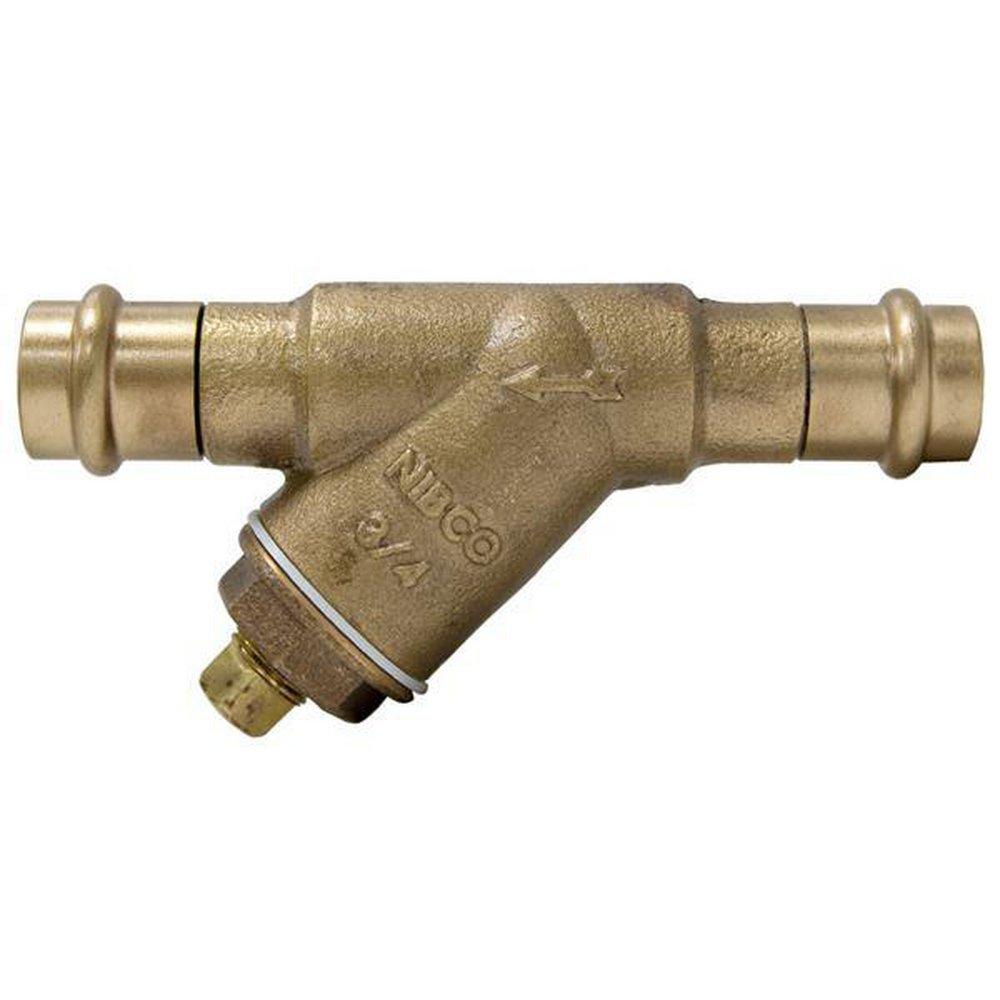

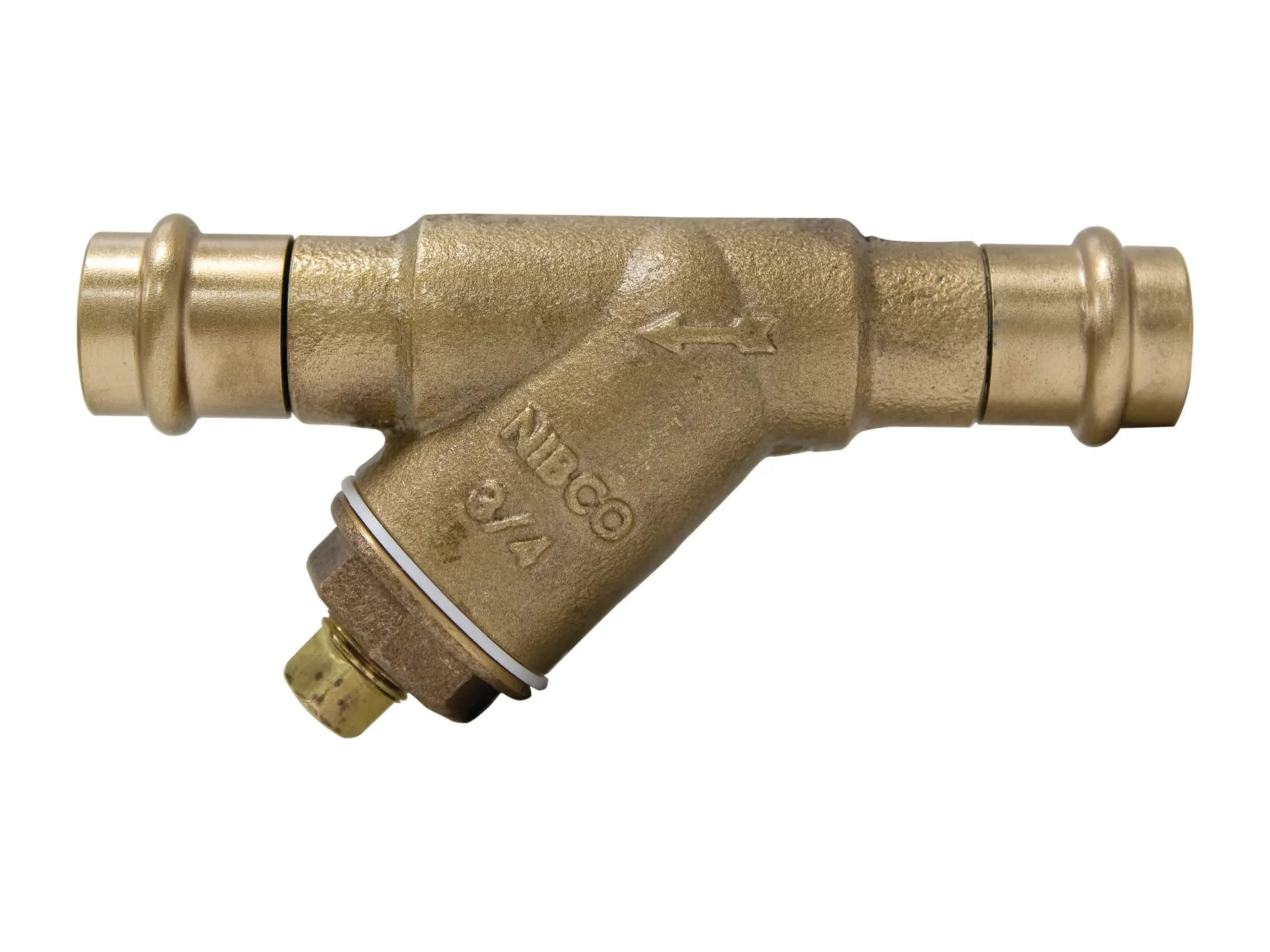

Nibco NF2QA08 Pf221 Wye 3/4 in. Bronze Press 20 Mesh Valve Strainer

Product Description

The NIBCO NF2QA08 PF221 wye strainer features press x press female end connections. This class 125 strainer has a 20-mesh stainless steel wire screen and a tapped cap with plug. It is rated for 200 psi/13.8 bar non shock cold working pressure and has a maximum service temperature of 250°F.

• Valve pressure rating 200 psi/13.8 bar non shock cold working pressure
• Maximum service temperature 250°F
• 20-mesh stainless steel wire screen

Product Highlights

The NIBCO wye strainer is ideal for use in various plumbing and industrial applications. Conforms to MSS SP-110.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF2QA08
• Country of Origin: US

Technical Specifications

• Brand: NIBCO
• Size: 3/4
• MPN: NF2QA08
• Model / MPN: PF221A34
• UPC: 039923292223
• Type: Strainer
• Connection Type: Female Press x Female Press
• Material: Bronze
• Turns/Operation: Non-Manual
• Brand Name: NIBCO Press System
• Type of Strainer Basket: Wire Mesh Screen
• Type of Strainer Cap: Tapped Cap with Plug
• Valve Type: Strainer
• Strainer Type: Y-Strainer
• Connection: 3/4" Female Press x Female Press
• Strainer Basket Type: Tapped Cap with Plug
• Screen Type: 20-Mesh Wire
• Screen Material: Stainless Steel
• Maximum Temperature: 250 °F
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 5.9"
• Width: 2.78"
• Height: 1.62"
• Manufacturer: NIBCO
• Model: PF-221-A
• Mfg Part#: NF2QA08
