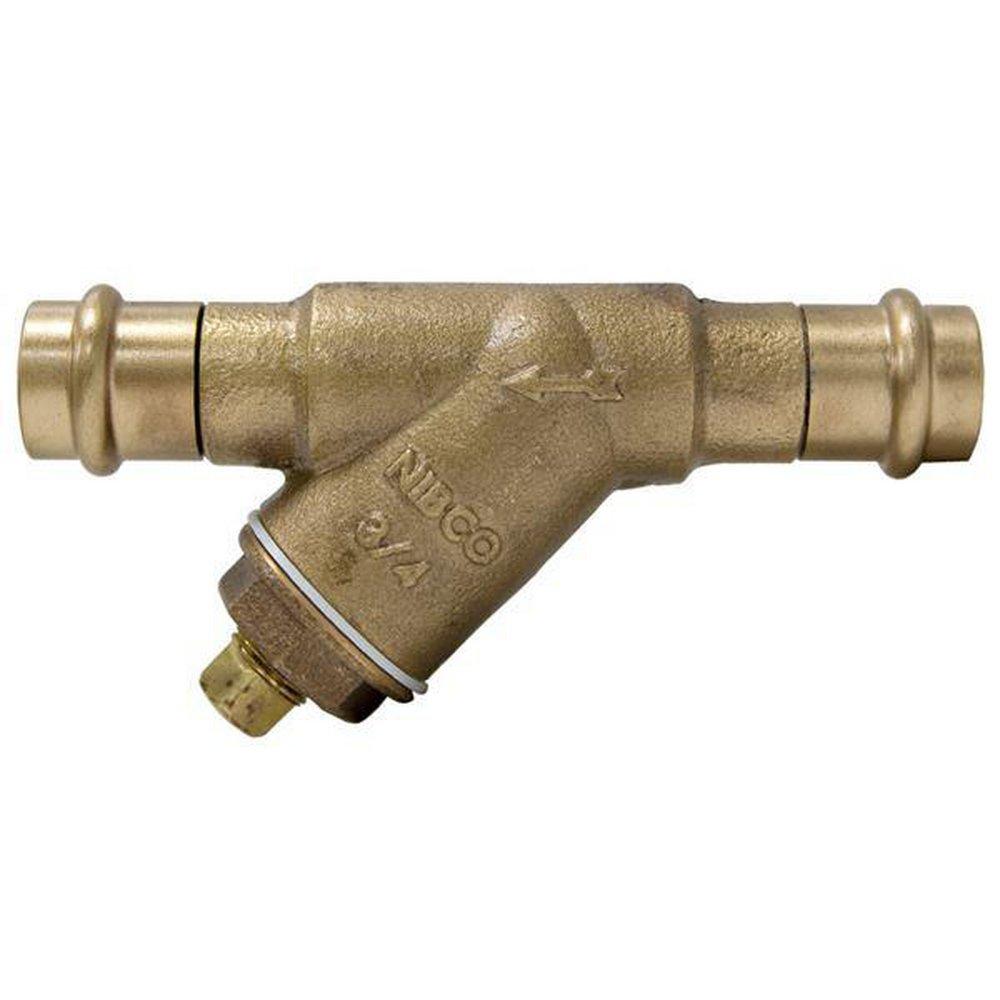

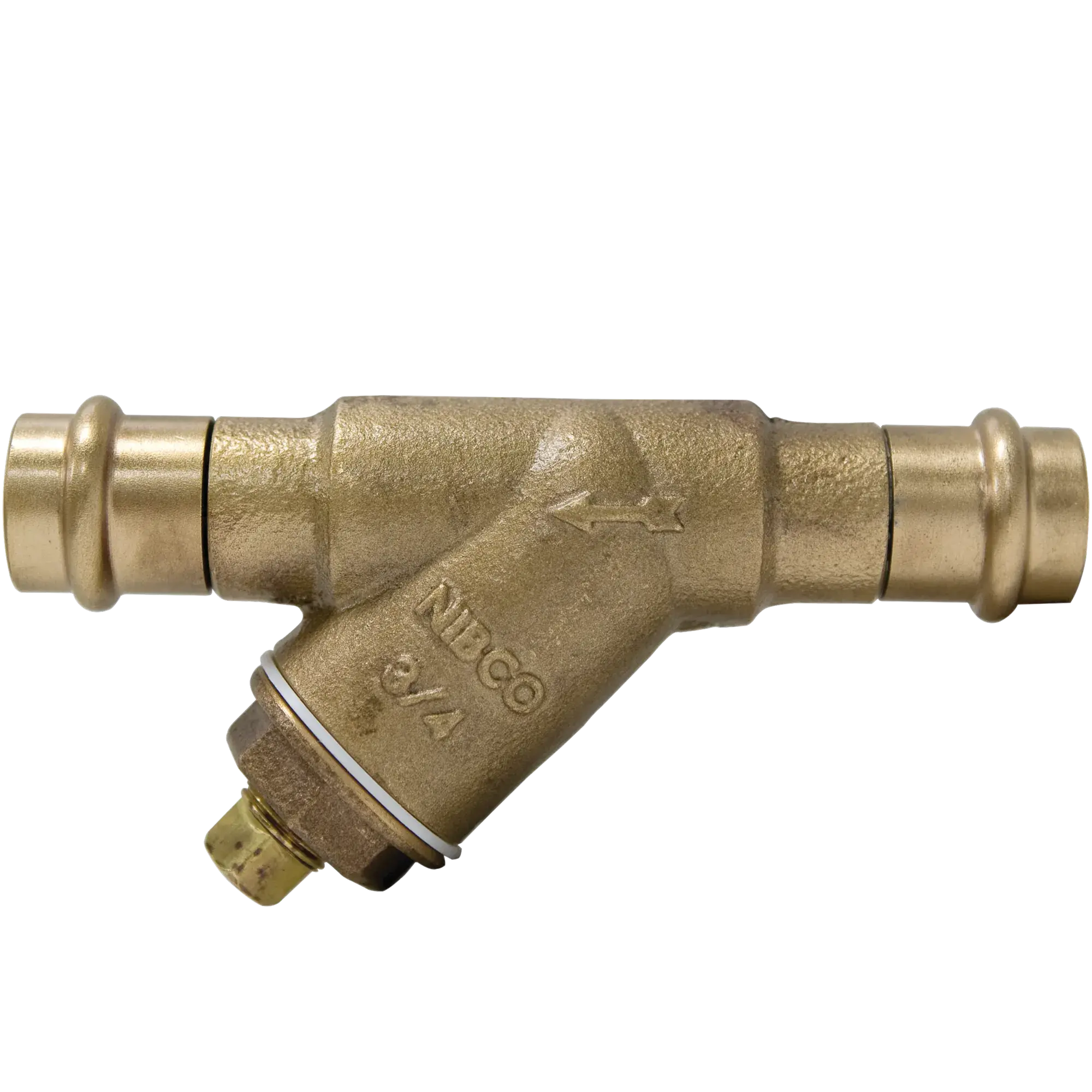

Nibco NF2QA06 Pf221-A Wye 1/2 in. Bronze Press 20 Mesh Valve Strainer

Product Description

The NIBCO NF2QA06 PF221-A wye strainer protects equipment by filtering solids from flowing liquids in the piping system. It features press x press female end connections with an inboard bead and EPDM O-rings for quick and easy joinery. The strainer has a tapped cap with blow-off plug for screen maintenance.

• Valve pressure rating 200 psi/13.8 bar non shock cold working pressure
• Maximum service temperature 250°F
• 20-mesh stainless steel wire screen

Product Highlights

Bronze Y-strainer with press connections for filtering solids from liquids, protecting valves, regulators, and meters.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF2QA06
• Country of Origin: US

Technical Specifications

• End Connection 1: Press
• End Connection 2: Press
• Material: Bronze
• Nominal Size: 1/2 in.
• Screen Material: Stainless Steel
• Type: Wye
• Brand: NIBCO
• Manufacturer: NIBCO INC.
• Size: 1/2"
• Number of Items: 1.0
• Connection Type: Female Press x Female Press
• Connection Method: Press
• UPC Code: 039923292216
• Description: PF221A 1/2 20 MESH STNR FEM PRESS PLUG
• Turns/Operation: Non-Manual
• Brand Name: NIBCO Press System
• Type of Strainer Basket: Wire Mesh Screen
• Type of Strainer Cap: Tapped Cap with Plug
• Weight: 0.66 lb
• Item: Strainer
• Connection Size: 1/2"
• Height: 1.35"
• Length: 4.75"
• Maximum Temperature: 250 °F
• Potable Water Code: Not Ll Compliant Not Intend Potable
• Screen Type: 20-Mesh Wire
• Strainer Basket Type: Tapped Cap With Plug
• Strainer Type: Y Strainer
• Valve Type: Strainer
• Width: 2.3"
• Blow-Off Size: 1/4 in NPT
• Domestic/Import: Domestic
• Series: PF-221-A
