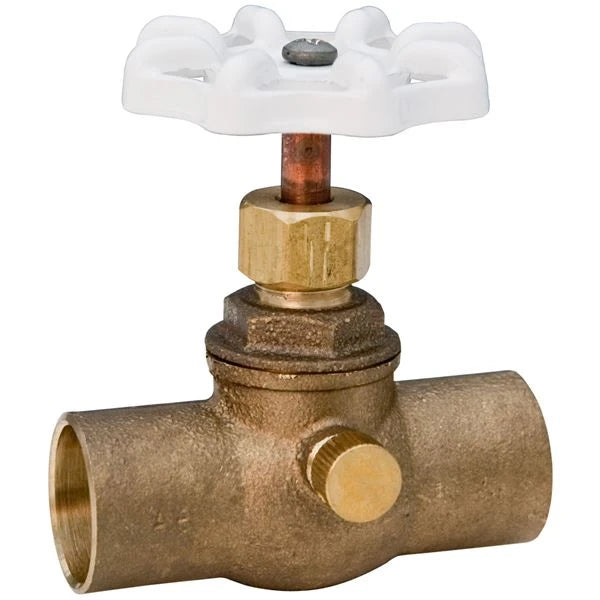

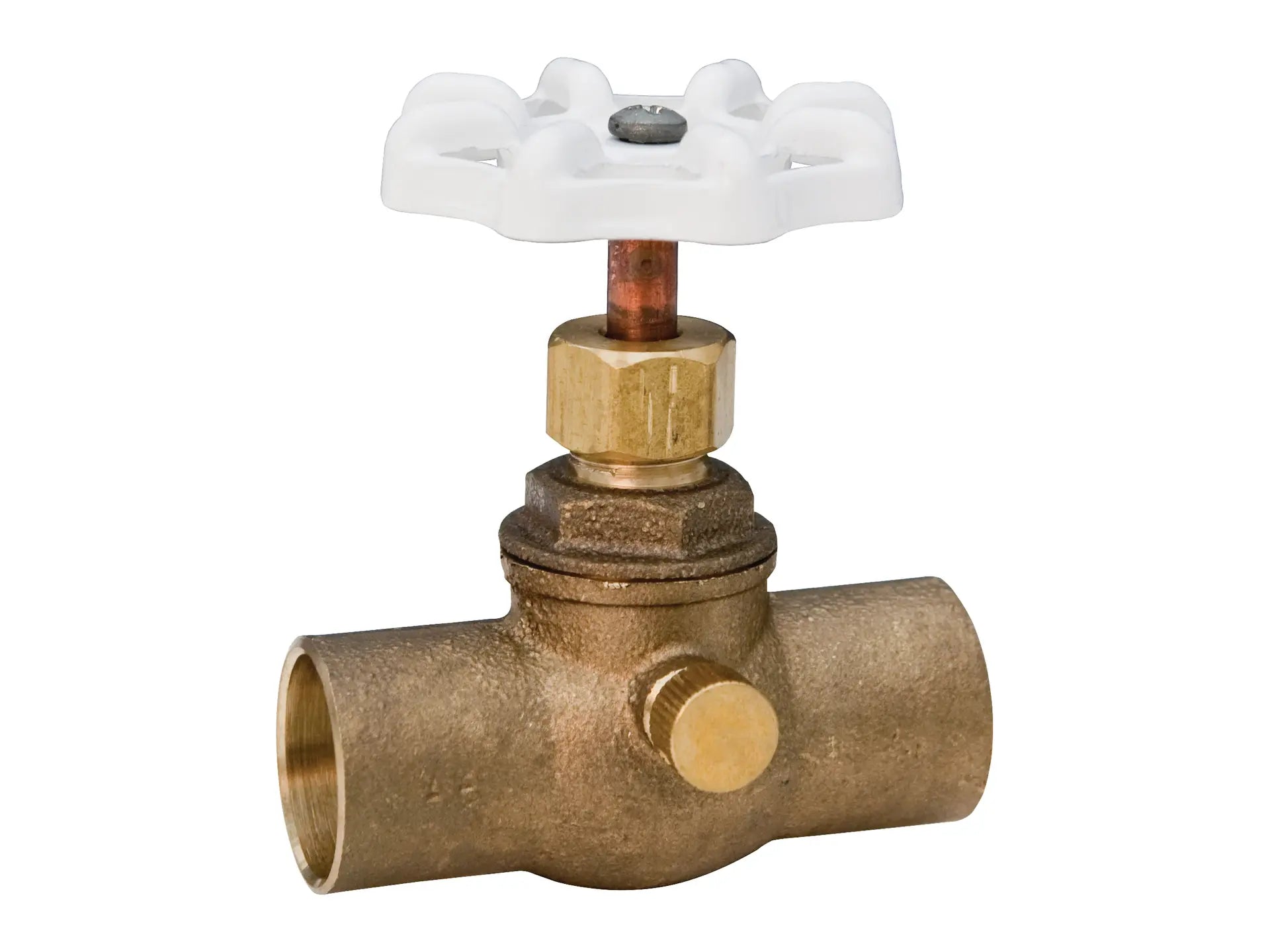

Nibco ND170X8 Stop and Waste Valve with Drain 3/4 in

Product Description

The NIBCO ND170X8 stop and waste valve with drain features cup x cup end connections for ease of installation. It features a white epoxy coated zinc alloy handwheel for lead-free identification and easy operation. The valve is suitable for use in low-pressure, domestic water systems in residential and commercial applications.

• Features a white epoxy coated zinc alloy handwheel for lead-free identification and easy operation.
• Constructed of high quality lead-free dezincification-resistant (DZR) performance bronze alloy per ASTM specifications
• Certified compliant with ANSI/NSF 61-8, including Annex F and G and ANSI/NSF 372

Product Highlights

The NIBCO stop and waste valve is a multi-purpose in-line shutoff valve for use in low-pressure, domestic water systems.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: ND170X8
• Country of Origin: MX

Technical Specifications

• Connection Size: 3/4 in
• Connection Type: Solder Cup x Solder Cup
• Finish: Epoxy Coated
• Handle Material: Zinc Alloy
• Handle Type: Multi-Turn
• Height: 3.21 in
• Item Name: Stop and Waste Valve with Drain
• Length: 2.16 in
• Material: Lead Free Silicon Bronze
• Number of Handles: 1
• Pressure Rating: 125 psi
• Temperature Rating: 180 deg F
• Standards/Certifications: ANSI/NSF 61-8, including Annex F and G and ANSI/NSF 372 certified
• Applications: For residential and commercial
• UPC Code: 039923299604
• Type: Specialty/Low Pressure Valve
• Turns / Operation: Multi-Turn
• Type of Stop Valve: with Drain
• Manufacturer: NIBCO
• Part Number: ND170X8
• Model: 726-LF
• Type of Valve: Stop and Waste - Shutoff with Drain
• Potable Water Code: LL Compliant NSF/ANSI 372
• Width: 2.7 in
• Country of Origin: MX
• Body Material: Silicon Bronze
• Domestic / Import: Import
• End Style: Solder Cup
• Nominal Size: 3/4 in
• Actuator Type: Handwheel
• Manufacturer #: ND170X8
• Media: Water
• Series: 726-LF
• Softgoods Material: EPDM
• Top to Inlet Center: 2.5625 in
• Trim Material: Copper Alloy
• Valve Size: 3/4 in
