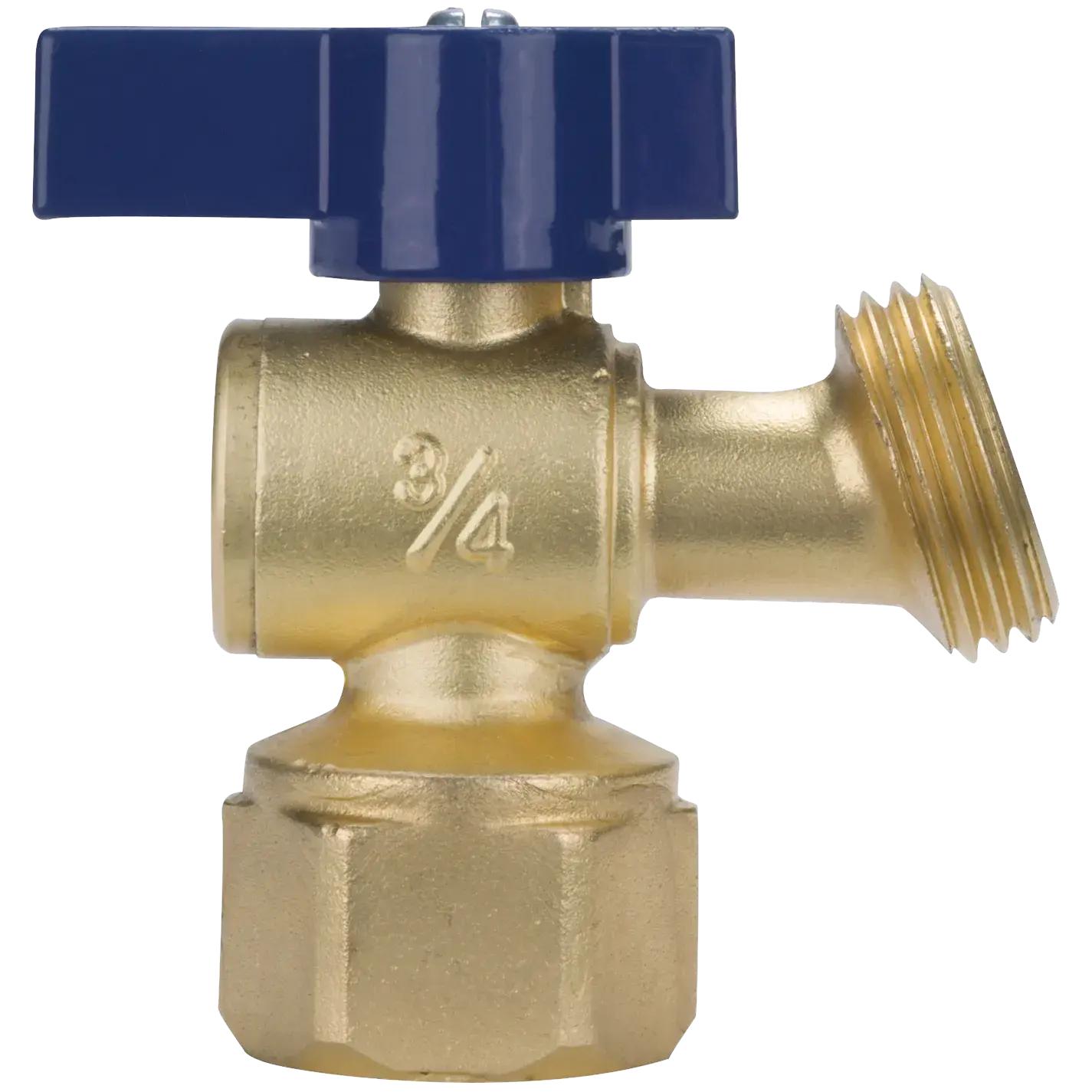

Nibco NB64JH8 Boiler Drain 3/4 in. FPT x GHT

Product Description

The NIBCO NB64JH8 boiler drain ensures trouble-free operation. This quarter-turn, low-pressure drain features a brass ball and nitrile O-ring seal. It has a maximum temperature of 180°F/82.2°C and a pressure rating of 125 psi CWP to 100° F. The valve is IAPMO listed to cUPC® and NSF/ANSI 61 9.

• Quarter-turn boiler drain
• Brass ball and nitrile O-ring seal
• Maximum temperature 180°F/82.2°C

Product Highlights

The NIBCO boiler drain is versatile and economical for commercial and residential applications. It features a PTFE seat and is suitable for low-pressure water systems.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NB64JH8

Technical Specifications

• Maximum Temperature: 180°F/82.2°C
• Pressure Rating: 125 psi CWP to 100° F
• Seat Material: PTFE
• Connection Type: Cup or MIP threads to hose connections
• Listing: IAPMO listed to cUPC® and NSF/ANSI 61 9
• Operation: 1/4 turn operation
• Brand: NIBCO
• Manufacturer: NIBCO INC.
• Model / MPN: QT73X34
• Part ID / MPN: NB64JH8
• Type: Quarter-Turn Boiler Drain
• Valve Size: 3/4"
• Material: Brass
• eClass Classification: Boiler Drains
• Turns/Operation: Quarter-Turn
• Series: QT73X
• Item: Boiler Drain Valve
• Body Material: Brass
• End Style: FNPT x Hose
• Nominal Size: 3/4 in
• Softgoods Material: PTFE Seat/Nitrile O-Ring
• Temperature Rating: 180 deg F Max
• Trim Material: Brass Stem
• Size: 3/4 in
