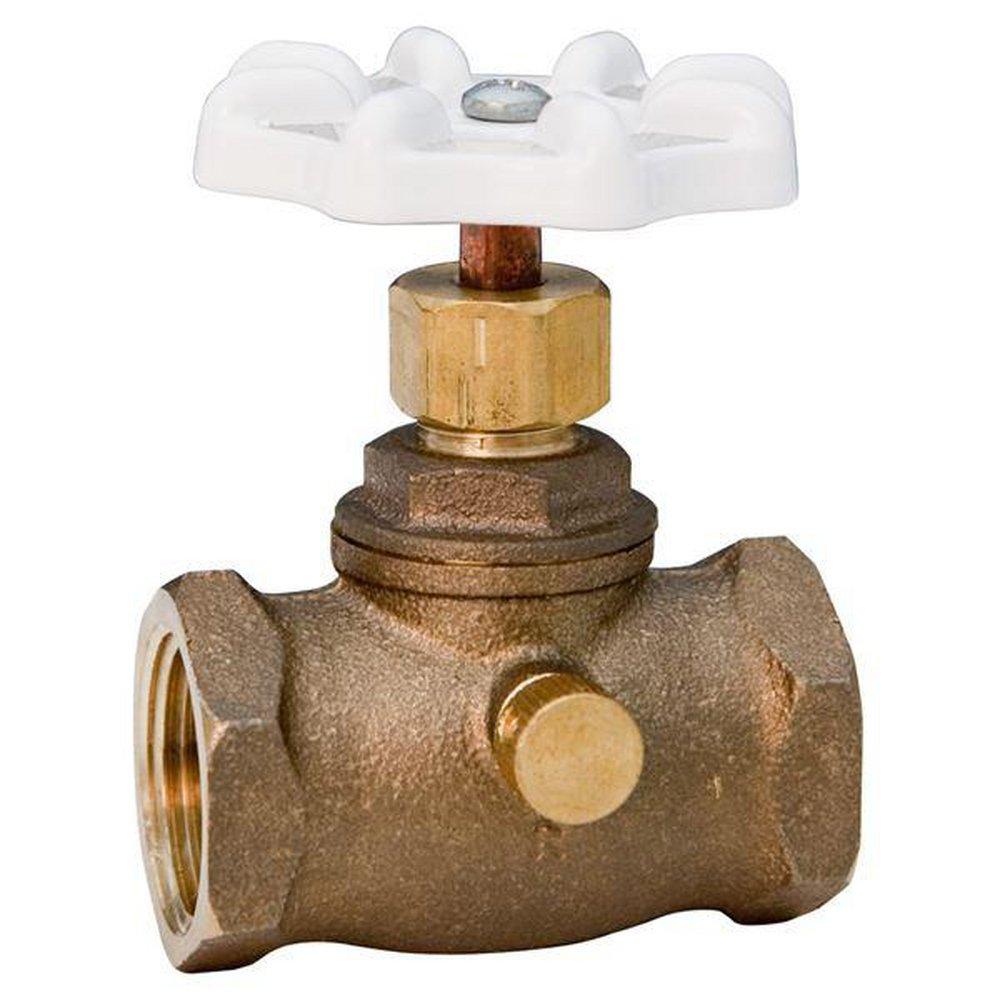

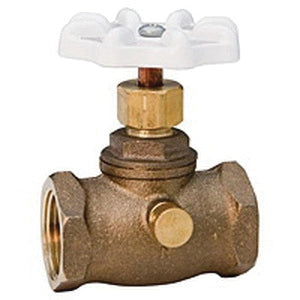

NIBCO N64X0L8 3/4 in Bronze FIP Stop & Waste Valve

Product Description

The NIBCO N64X0L8 is a 3/4 inch bronze FIP stop and waste valve. This valve is designed for efficient water control in plumbing systems. It is ideal for residential and commercial applications.

• Pressure rating of one hundred twenty-five psi.
• Temperature range of up to one hundred eighty degrees Fahrenheit.
• Constructed from silicon bronze for durability.

Product Highlights

This stop and waste valve features an EPDM seat disc, ensuring a reliable seal. The valve includes a handwheel actuator for easy operation and is equipped with FNPT end connections.

Product Information

Standard Information

• Brand: NIBCO
• MPN: N64X0L8

Technical Specifications

• Connection Size: 3/4 inch
• Connection Type: FIP
• Body Material: Silicon Bronze
• Handle Material: Zinc Alloy
• Actuator Type: Handwheel
• Pressure Rating: 125 psi
• Temperature Rating: 180 degrees Fahrenheit
• Inlet to Outlet Length: 2-5/16 inches
• Top to Inlet Center: 2-9/16 inches
