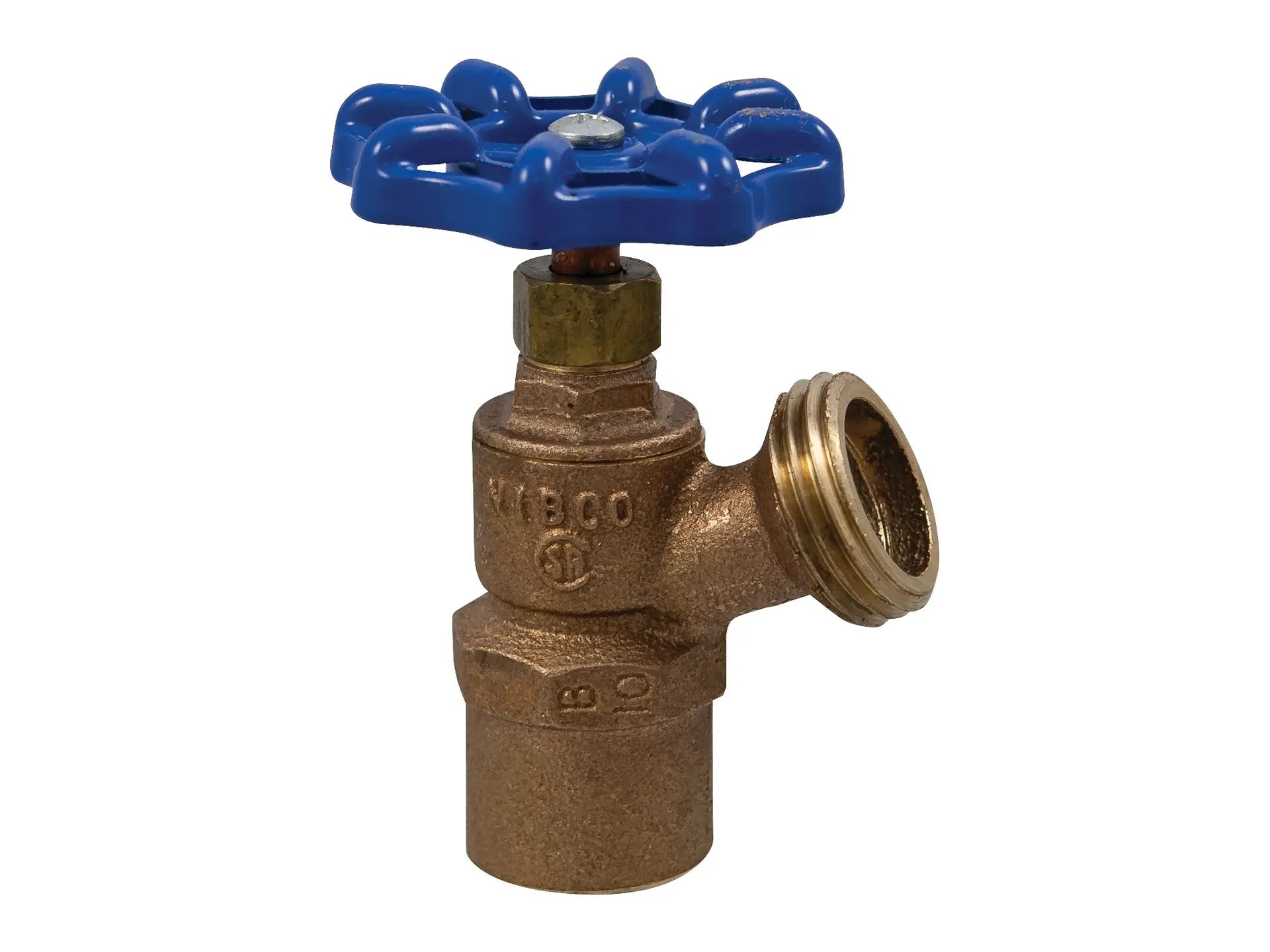

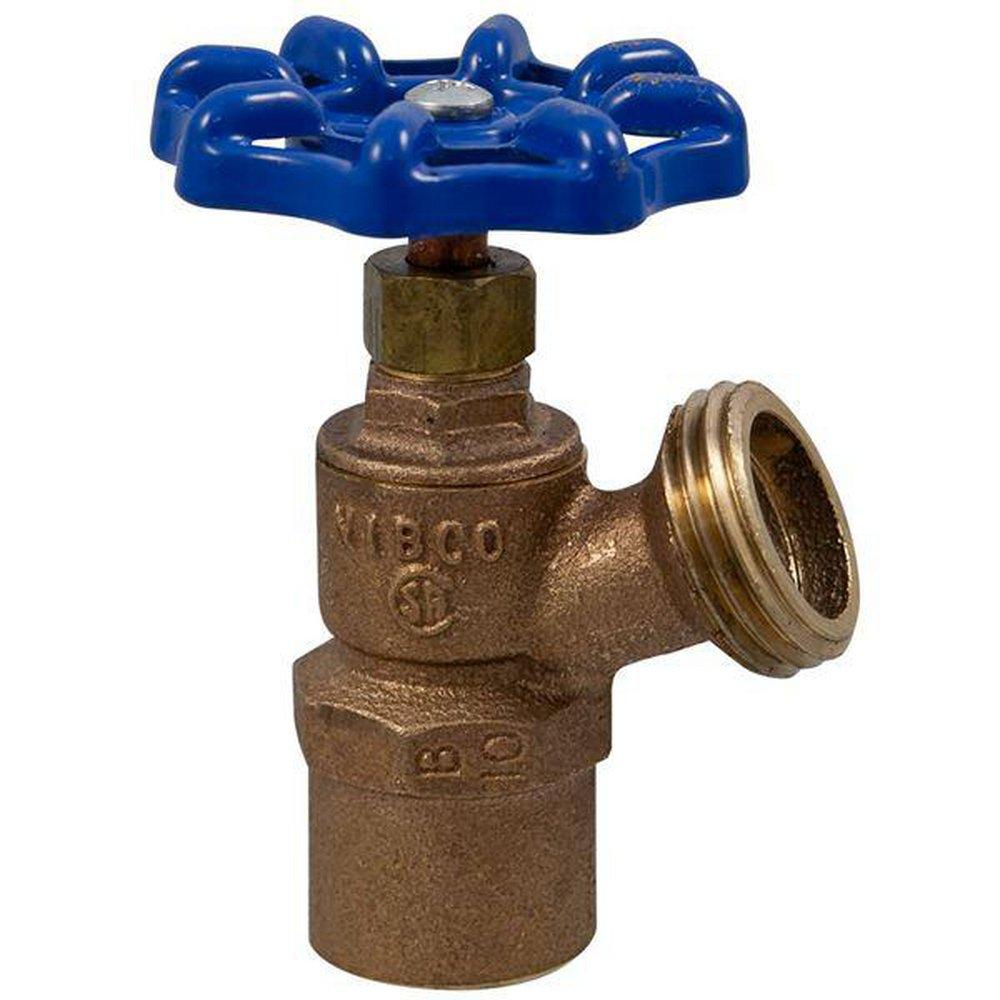

Nibco N64F0P8 3/4 in. Sweat x GHT Boiler Drain Valve

Product Description

The NIBCO N64F0P8 multi-turn boiler drain is manufactured from dezincification resistant cast copper with a Buna-N seat. The multi-purpose drain valve is recommended for use in low-pressure water systems. Maximum temperature 180°F/82.2°C with a valve pressure rating of 125 psi to 100°F. Use in U.S. drinking water applications is prohibited after January 3, 2014.

• Cup to hose connection
• Maximum temperature 180°F/82.2°C
• Dezincification resistant

Product Highlights

The NIBCO boiler drain ensures trouble-free operation and ease of access in low-pressure water systems.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: N64F0P8
• Country of Origin: China

Technical Specifications

• Maximum Temperature: 180°F/82.2°C
• Valve Pressure Rating: 125 psi to 100°F
• Seat Material: Buna-N
• Resistant: Dezincification
• Type: Boiler Drain
• Valve Size: 3/4"
• Connection Type: Solder Cup x Hose
• Material: Bronze
• Valve Operator: Standard Handwheel
• e-Class Classification: Boiler Drains
• Turns & Operation: Multi-Turn
• Body Material: Cast Copper
• Domestic / Import: Import
• End Style: Cup x Hose
• Nominal Size: 3/4 in
• Pressure Rating: 125 psi
• Actuator Type: Handwheel
• Manufacturer: NIBCO Inc.
• Manufacturer #: N64F0P8
• Media: Water
• Series: 72 Series
• Softgoods Material: Buna-N
• Temperature Rating: 180 deg F
• Trim Material: Cold Formed Copper Alloy Stem
• UPC Code: 039923601773
• Description: 72 3/4 BOILER DRAIN - CUP
• Weight: 0.427 lb
• Item: Boiler Drain Valve
• Turns/operation: Multi Turn
• Brand: Nibco
• MPN: N64F0P8
• Country of Origin: United States
• Model: 72
• Old Material Number: 7234
• Nominal Pipe Size: 3/4"
• System Use: Residential Plumbing
• Application: Lead-Free*
• Type of Valve: Boiler Drain
• End Connection: Threaded
• Valve End Connection Type: Solder Cup x Hose
• Turns Operations: Multi-Turn
• UPC: 039923601773
• Length: 3.170"
• Width: 2.560"
• Height: 2.130"
• Potable Water Code: Not LL Comp not intend potable
