Product Description

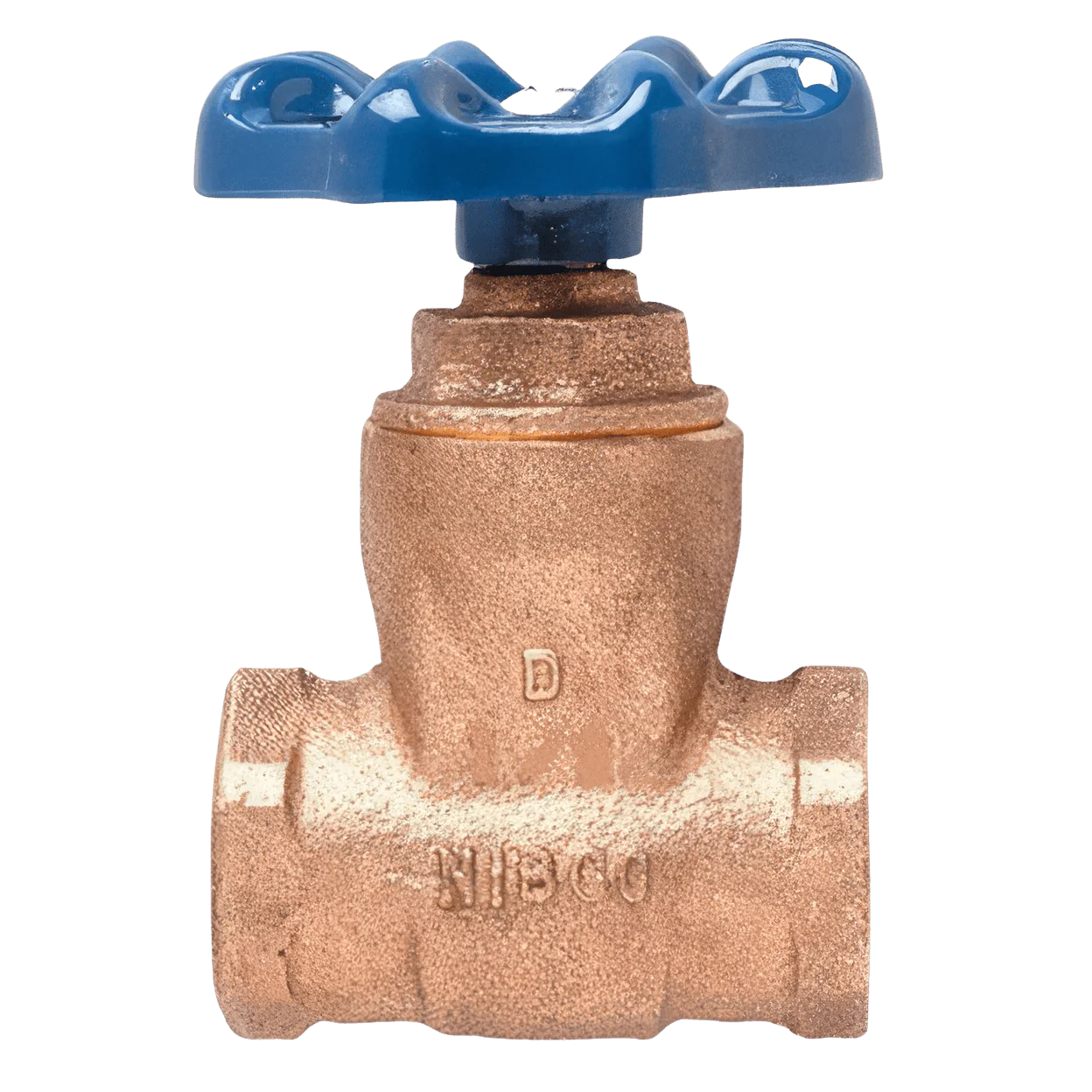

The NIBCO T-29 3/4 inch bronze full port FNPT gate valve, MPN N41B008, is designed for applications in plumbing and water systems. It features a compact design and is ideal for water shutoff services. The valve has an NPT connection type and operates at a pressure rating of 200 psi.
- Compact design
- Full port for maximum flow
- Durable cast brass body
Product Highlights
This gate valve is dezincification resistant. It is constructed with a solid wedge that provides reliable operation in water shutoff applications.
Product Information
Standard Information
-
Type: Compact
-
Media: Water
Technical Specifications
-
Actuator Type: Handwheel
-
Body Material: Cast Brass
-
Trim Material: Bronze
-
Nominal Size: 3/4 inch
-
Connection Type: FNPT x FNPT
-
Pressure Rating: 200 psi
-
Inlet to Outlet Length: 2.04 inches
-
Top to Inlet Center: 2-3/4 inches
