Nibco N200235LH6 Lever Operated Cast Iron Butterfly Valve 6 Inch

Product Description

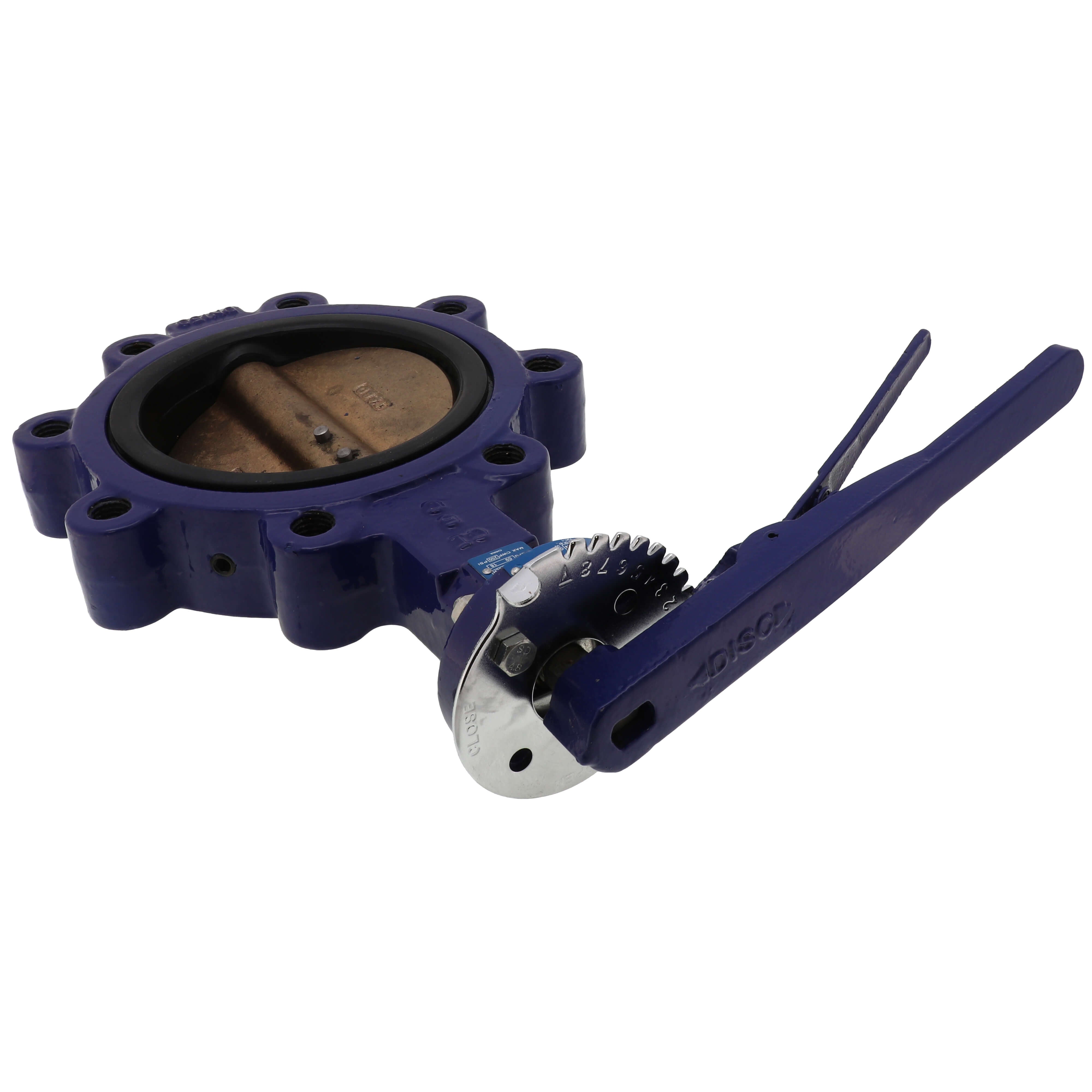

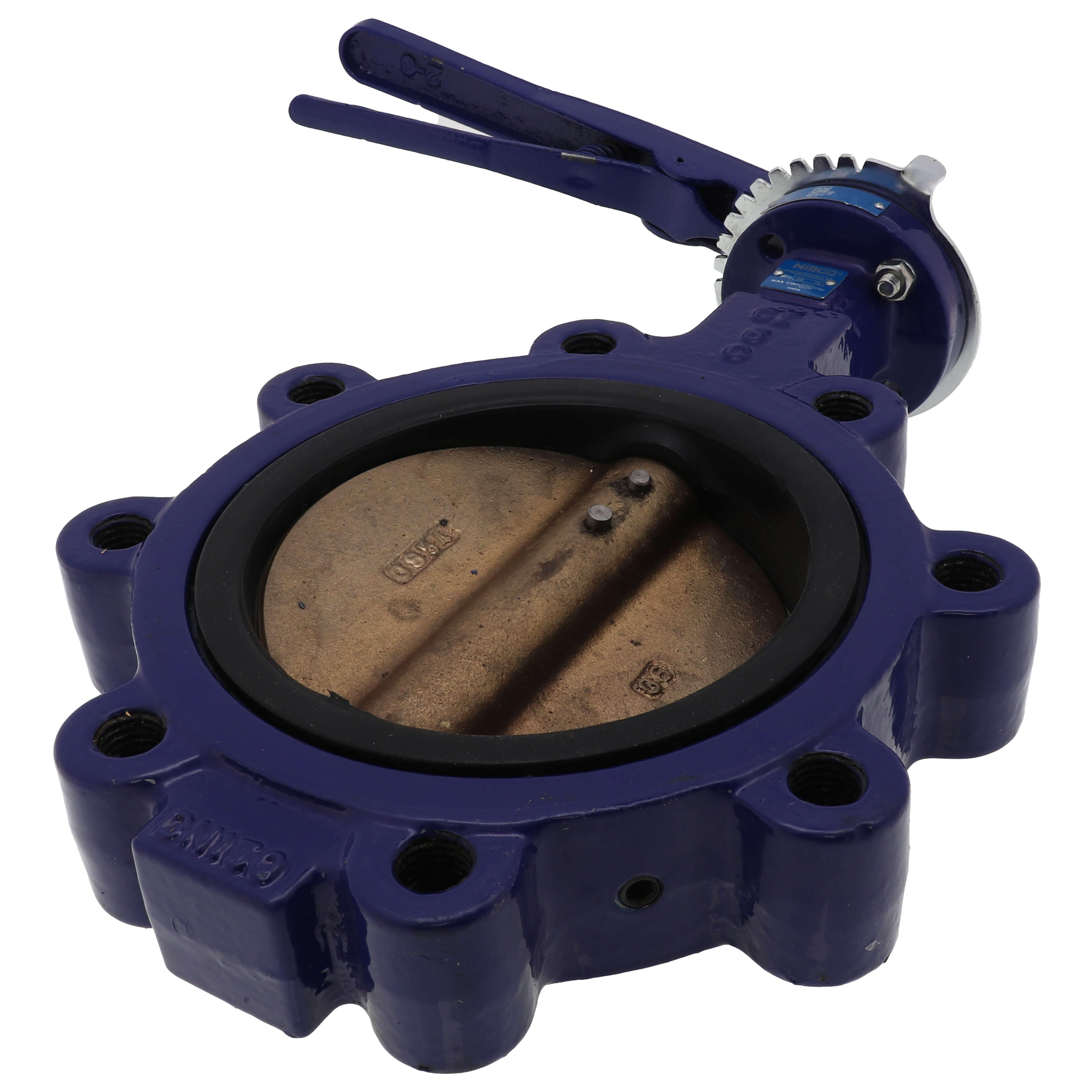

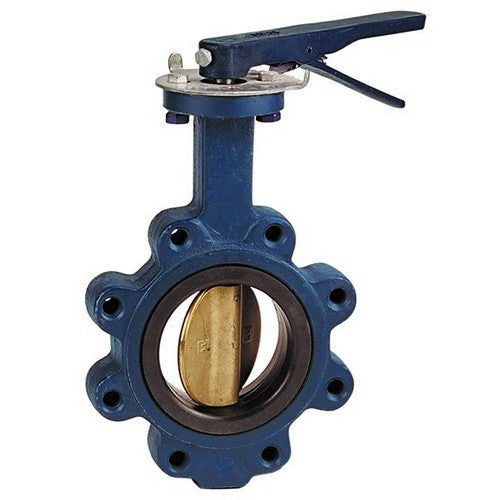

The Nibco N200235LH6 is a lever-operated cast iron butterfly valve designed for reliable shutoff at a pressure of two hundred psi. This valve features a lug end connection and is suitable for commercial use in HVAC systems and potable water applications. It provides bi-directional dead-end service without the need for a downstream flange. The valve operates with a quarter-turn mechanism, simplifying the open and close functionality.

• Durable cast iron body
• Aluminum bronze disc with EPDM seal
• Extended neck design for insulation

Product Highlights

This valve is rated for continuous service at two hundred twenty-five degrees Fahrenheit, and intermittent service can reach up to two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Nibco
• MPN: N200235LH6

Technical Specifications

• Nominal Size: 6 inch
• End Connection: Lug
• Body Material: Cast Iron
• Pressure Class: 200 psi
• Seal Material: EPDM
• Actuation/Operator: Lever Operated
• Standards: MSS SP-67, API 609
