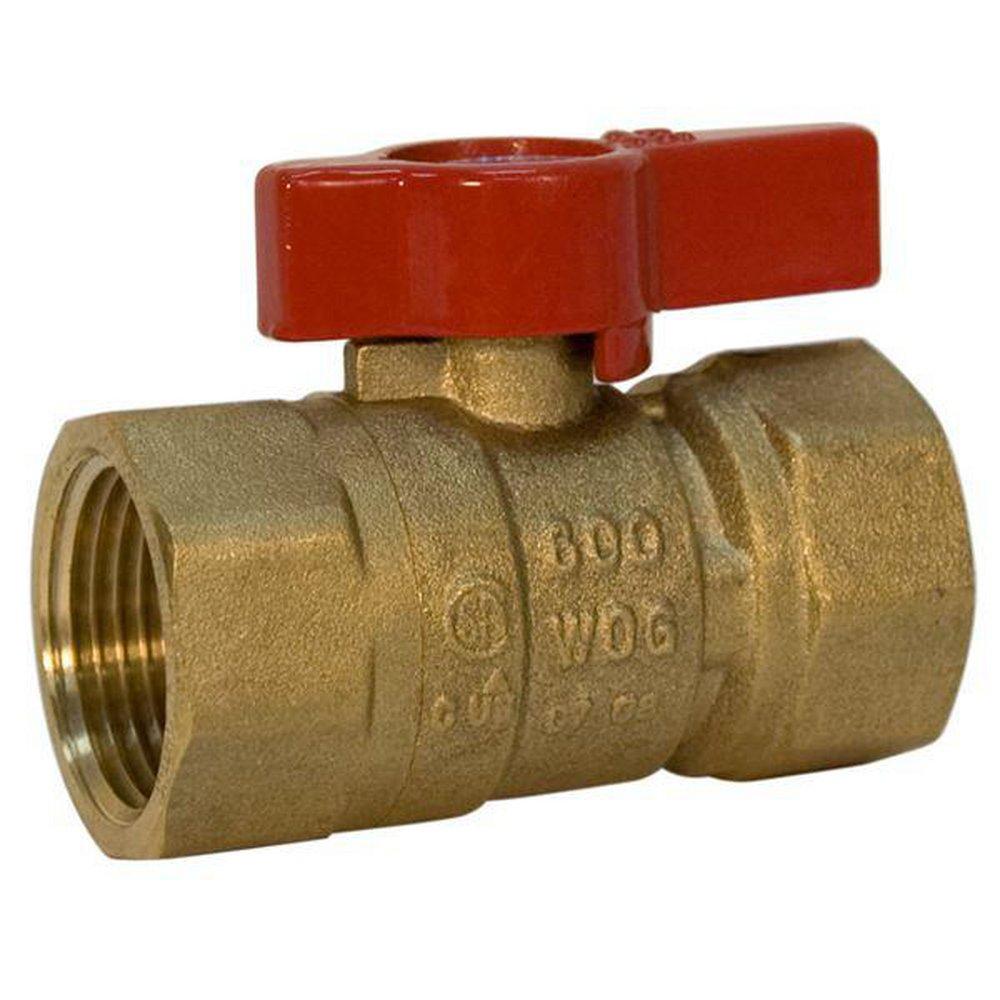

NIBCO N01211A GB1A 1 in. Forged Brass FIPS Lever Handle Gas Ball Valve

Product Description

The NIBCO N01211A is a gas ball valve designed with a one-inch nominal size. This valve features forged brass construction and lever handle operation. It is suitable for various gas applications with a pressure rating of six hundred psi. The valve's end connections are FIP, allowing for secure fittings.

• Pressure rating of six hundred psi
• Suitable for gas applications only
• Constructed from durable forged brass

Product Highlights

This valve is ideal for natural gas, liquefied petroleum, and other gas mixtures. Its standard lever operation allows for easy control, making it a reliable choice for gas line installations.

Product Information

Standard Information

• Brand: NIBCO
• MPN: N01211A

Technical Specifications

• Nominal Size: 1 in
• Orifice Size: 3/4 in
• Ball Material: Brass
• Body Material: Brass
• Actuator Type: Standard Lever Operated
• Trim Material: Brass Stem and RPTFE Seat
• Inlet to Outlet Length: 2.76 in
• Top to Inlet Center: 1.36 in
• Pressure Rating: 600 psi
• Media: Gas
• Domestic/Import: Import
• Standards/Approval: ANSI Z21.15, ASME B16.44, CGA 91-002, CSA 9.1
