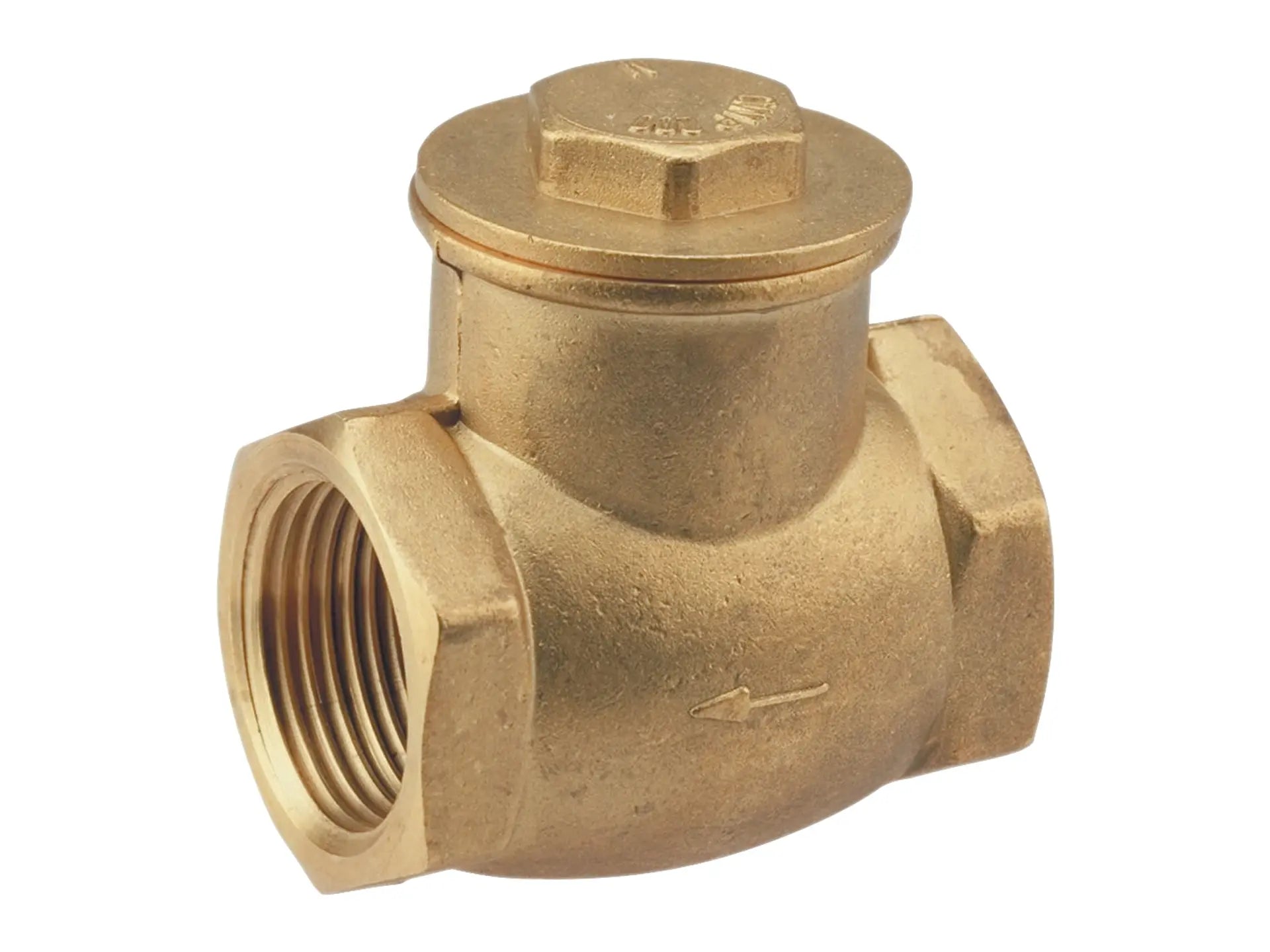

Nibco N00316B Ti-3 Check Valve - Brass, Swing, Threaded 1-1/4

Product Description

The NIBCO N00316B brass check valve features threaded end connections for easy installation. It prevents backflow by automatically closing when fluid reverses direction. This swing check valve may be installed in horizontal or vertical positions with flow moving up. The NIBCO check valve is backed by the NIBCO 2-year limited warranty.

• Prevents backflow
• Automatically closes when fluid reverses direction
• Threaded end connections for easy installation

Product Highlights

The NIBCO brass check valve is a versatile and economical valve option for commercial and residential applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: N00316B
• Country of Origin: China

Technical Specifications

• UPC Code: 039923084132
• Type: Horizontal/Vertical Swing
• Valve Size: 1 1/4
• Connection Type: T -- Female NPT Thread (FIPT)
• Material: Brass
• Description: TI3 1 1/4 CHECK VALVE BRASS
• Turns/Operation: Non-Manual
• Valve pressure rating: 200 psi/14 bar non-shock cold working pressure
• Disc: Brass
• Bonnet: Brass
• End connections: NPT x NPT
• Applicable Standard: NSF/ANSI 61-8, ISO 9001
• Application: Commercial, Residential
• Body Material: ASTM B584 C85700 Brass
• Disc Material: ASTM B584 C85700 Brass
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 3.11 Inch
• Inclusions/Features: Bronze Plug/Bonnet, Brass Pin
• Nominal Size: 1-1/4 Inch
• Pressure Rating: 200 PSI Non-Shock CWP
• Configuration: Swing
• Connections: Female Threaded X Female Threaded
• Length: 3.110
• Size: 1-1/4 in
• Width: 2.010
• Shape: Circular
• Brand: Nibco
• MPN: N00316B
• Manufacturer: Nibco
• Product Type: Household Rough Plumbing Valves
• Country of Origin: China
• Category: Business & Industrial
• Model: T-I3
