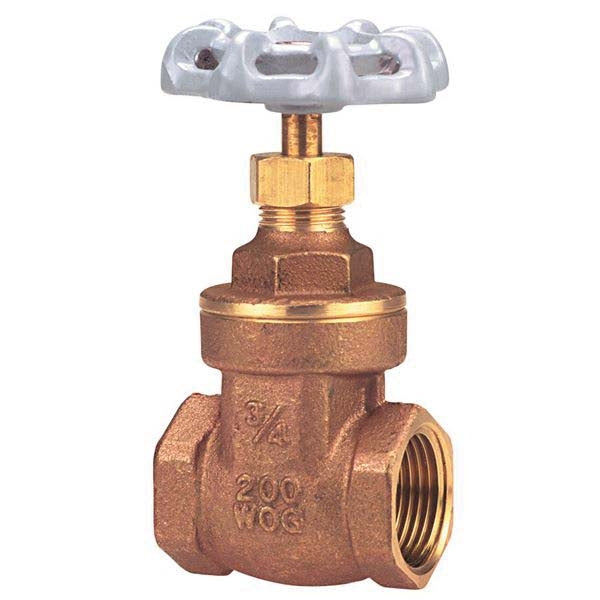

NIBCO N001168 TI8 3/4 Full Port Gate Valve

Product Description

The NIBCO TI8 3/4 Full Port Gate Valve with MPN N001168 is a reliable choice for controlling fluid flow in various systems. This valve contains threaded ends for simple installation and features a robust brass body with non-rising stem. It is designed for high-pressure applications with a rating of 200 psi.

• Full port design for maximum flow.
• Handwheel actuator allows for easy operation.
• Constructed from durable brass materials for longevity.

Product Highlights

This gate valve is ideal for commercial and residential use. Its brass construction and dependable design provide a tight seal, making it suitable for irrigation and other applications.

Product Information

Standard Information

• Brand: NIBCO INC
• UPC: 039923608741

Technical Specifications

• MPN: N001168
• Nominal Size: 3/4 in
• Actuator Type: Handwheel
• Body Material: Brass
• Trim Material: Brass
• End Style: Thread
• Pressure Rating: 200 psi
• Inlet to Outlet Length: 1.85 in
• Top to Inlet Center: 3.31 in
• Hand Wheel Diameter: 2.13 in
• Softgoods Material: Graphite/Rubber Non-Asbestos Packing
• Port Type: Full
• Series: TI-8
