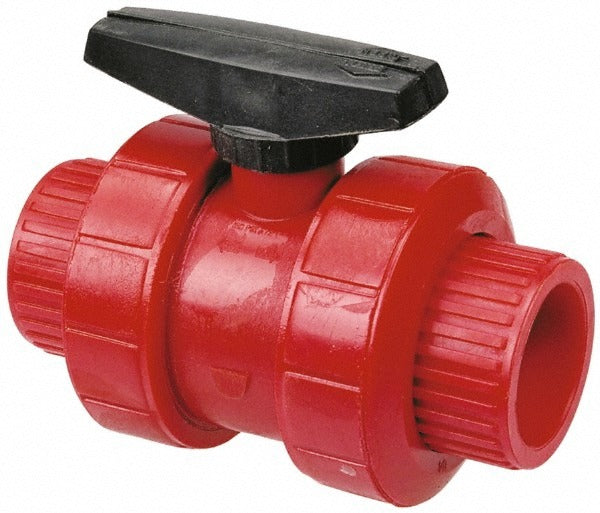

Nibco MD909AD True Union Ball Valve 2 in Full Port Sch 80

Product Description

The NIBCO MD909AD is a true union manual ball valve designed for 2-inch pipe in demanding fluid handling systems. Built from polyvinylidene fluoride (PVDF), it delivers excellent resistance to corrosive chemicals, making it a strong choice for industrial process piping, chemical distribution, and aggressive fluid applications. The full port design maintains maximum flow capacity with minimal pressure drop. Its true union construction allows the valve body to be removed from the line without cutting pipe, simplifying maintenance and inspection. A wedge-style handle provides positive on/off control. Licensed plumbers and industrial pipefitters are the typical installers for this type of valve.

This valve is suited for Schedule 80 piping systems where chemical resistance and serviceability are priorities. Solvent x solvent end connections make it compatible with CPVC and PVDF piping systems commonly found in chemical processing, water treatment, semiconductor fabrication, and similar corrosive service environments. The true union feature is especially valuable in process systems where periodic valve service is expected without full line shutdown.

Key Features

• True union body design allows in-line removal without cutting pipe
• Full port configuration minimizes flow restriction and pressure drop
• PVDF body material provides high resistance to a broad range of corrosive chemicals
• Solvent x solvent end connections for direct integration into Schedule 80 piping systems
• Wedge handle delivers clear visual open/closed indication and firm manual control
• Red body color provides easy identification in multi-line installations

Compatibility

Designed as an OEM-style replacement or new-installation valve for Schedule 80 PVDF and compatible thermoplastic piping systems with solvent socket end connections in 2-inch pipe size.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with thermoplastic solvent-welded systems. De-pressurize and drain the line completely before removing or installing the valve. Follow solvent cement manufacturer cure times before returning the line to service. Applicable work should conform to local plumbing codes and ASTM standards governing plastic piping systems.
