Product Description

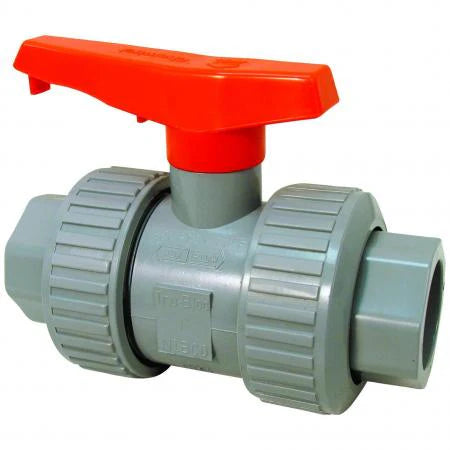

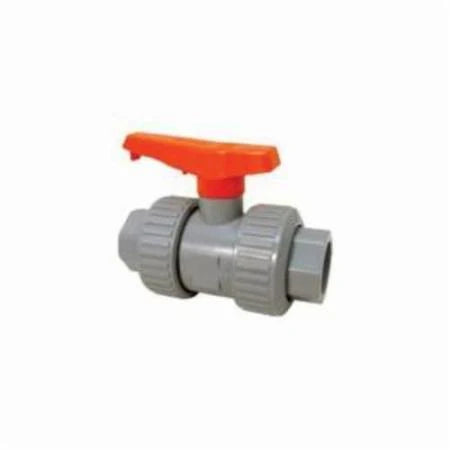

The NIBCO Model MB930UC features a 1-1/2 inch True Union Ball Valve, designed for optimal performance in water applications. Engineered with CPVC construction, this valve offers reliable operation and durability.
- 250 psi pressure rating at 73 degrees Fahrenheit with water.
- Equipped with FKM O-ring, ensuring a solid seal and long-term reliability.
- True Bloc design allows easy maintenance and in-line repair.
Product Highlights
This valve is ideally suited for handling both hot corrosive liquids and the distribution of hot and cold water, making it versatile for chemical processing and waste water treatment systems. Its full port design ensures maximum flow and minimal pressure drop.
Product Information
Standard Information
-
Nominal Size: 1-1/2 inch
-
Connection Type: Socket x FNPT
-
Port Type: Full
-
Material: CPVC
Technical Specifications
-
Pressure Rating: 250 psi
-
Temperature Handling: up to 210 degrees Fahrenheit
-
O-ring Material: FKM
-
Seat Material: PTFE
-
Body Material: CPVC
-
Standards/Certifications: NSF/ANSI 14/61, ASTM F1970
