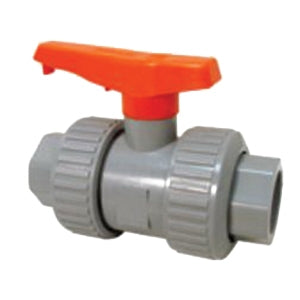

NIBCO MB930U8 U51TB-V 3/4 TRUE UNION BALL VALVE CPVC - REPLACEMENT MB930U8

Product Description

The NIBCO MB930U8 model U51TB-V True Union Ball Valve is crafted for superior fluid handling performance in a wide range of commercial and industrial applications. Key features include a full port design and reliable FKM O-ring seals. This valve is ideally suited for systems involving hot corrosive liquids, chemical processing, and water distribution.

• Durable CPVC construction for chemical resistance and high thermal stability.
• Equipped with an ergonomic handle for ease of operation.
• Designed for easy maintenance and in-line repairs.

Product Highlights

This Tru-Bloc ball valve incorporates advanced features such as a true union design, allowing quick disassembly from piping systems. The orange PVC handle ensures visibility and accessibility in complex installations.

Product Information

Standard Information

• Brand: NIBCO
• MPN: MB930U8
• Series: U51TB-V

Technical Specifications

• Nominal Size: 3/4 in
• Connection Type: Socket x FNPT
• Pressure Rating: 250 psi
• Temperature Rating: 73 to 210 degrees Fahrenheit
• Body Material: CPVC
• Ball Material: PVC
• Trim Material: PVC Stem and PTFE Seat
• Actuator Type: Ergonomic Handle
