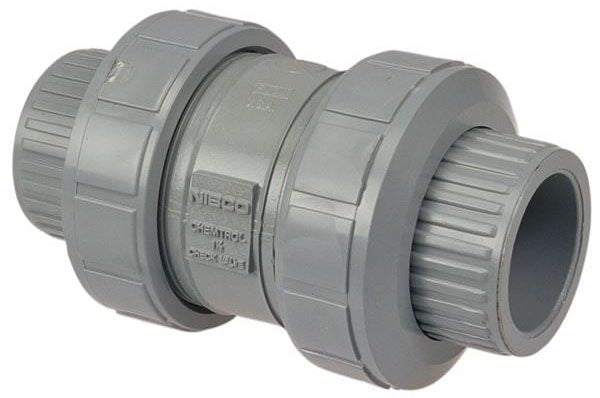

NIBCO MB801UA Chemtrol U51BC-V 1 Inch True Union CPVC Ball Check Valve U51BC-V-1

Product Description

The NIBCO MB801UA is a Chemtrol True Union Ball Check Valve. It features a one inch nominal size and a unique socket and female thread connection. This valve is made from CPVC material which provides durability and resistance against corrosion. The MB801UA is designed for industrial applications, allowing the flow of hot and cold water while effectively stopping backflow.

• Includes both socket and female NPT thread end connections
• Constructed from CPVC for durability
• Designed for hot corrosive liquids

Product Highlights

This ball check valve stops the flow of media in one direction, allowing flow in the opposite direction with minimal turbulence and chatter.

Product Information

Standard Information

• Manufacturer: NIBCO
• UPC: 039923744166

Technical Specifications

• Body Material: CPVC
• Nominal Size: 1 Inch x 1 Inch
• End Connection: Socket x Female Threaded
• Pressure Rating: 150 psi
• Temperature Rating: 210 degrees Fahrenheit
• Application: Industrial
• Type: Universal, True Union
