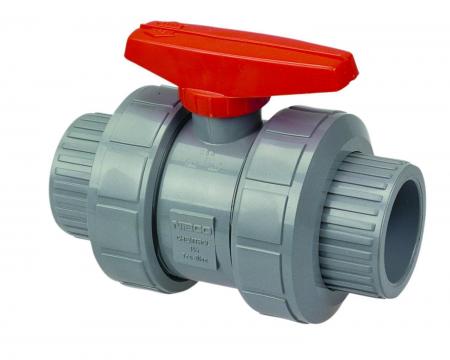

NIBCO MB611AF S51TB-E True Union Ball Valve 3 Inch CPVC EPDM O-Ring

Product Description

The NIBCO True Union Ball Valve model MB611AF features a 3 inch nominal socket and is crafted from Chlorinated Polyvinyl Chloride (CPVC) with EPDM O-rings. This full port valve is suited for applications up to 150 psi at 73 degrees Fahrenheit.

• 150 psi pressure rating at 73 degrees Fahrenheit; water non-shock.
• True Bloc design with a full port for unobstructed flow.
• Includes EPDM O-rings for enhanced chemical resistance.

Product Highlights

Designed for longevity and durability, the NIBCO MB611AF is domestically produced and meets high standards including ASTM F1970 and NSF/ANSI 14/61. An orange handle indicates the valve position at a glance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: S-51-TB-E

Technical Specifications

• Nominal Size: 3 inches
• Orifice Size: 3 inches
• Ball Material: CPVC
• Body Material: CPVC
• Trim Material: CPVC Stem and PTFE Seat
• Pressure Rating: 150 psi
• Temperature Rating: 73 degrees Fahrenheit
• Inlet to Outlet Length: 10.39 inches
• Top to Inlet Center: 5.59 inches
