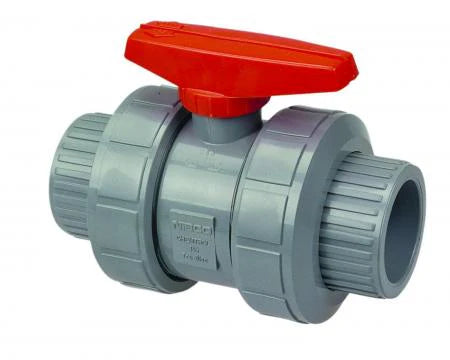

NIBCO MB599AH CPVC True Union Ball Valve Full Port 4 Inch

Product Description

The NIBCO True Union Full Port Ball Valve, model MB599AH, caters to a wide range of applications, particularly in the chemical processing and water distribution sectors. Made from high-quality CPVC, this 4-inch socket valve ensures excellent performance and durability.

• 150 psi pressure rating at 73 degrees Fahrenheit
• FKM O-ring and PTFE seat for optimal sealing and chemical resistance
• True Union design simplifies maintenance and replacement

Product Highlights

Designed for both hot and cold water systems, this valve accommodates temperatures up to 210 degrees Fahrenheit, making it suitable for corrosive liquid applications. Its Tru-Bloc design and FKM O-ring provide exceptional longevity and reliability in demanding environments.

Technical Specifications

• Material: CPVC body and ball with PVC/PTFE trim
• Temperature Range: Up to 210 degrees Fahrenheit
• Pressure Rating: 150 psi
• Connection Type: Socket, 4 inch
• Standards: ANSI/NSF 14, 61 approved; ASTM F1970
