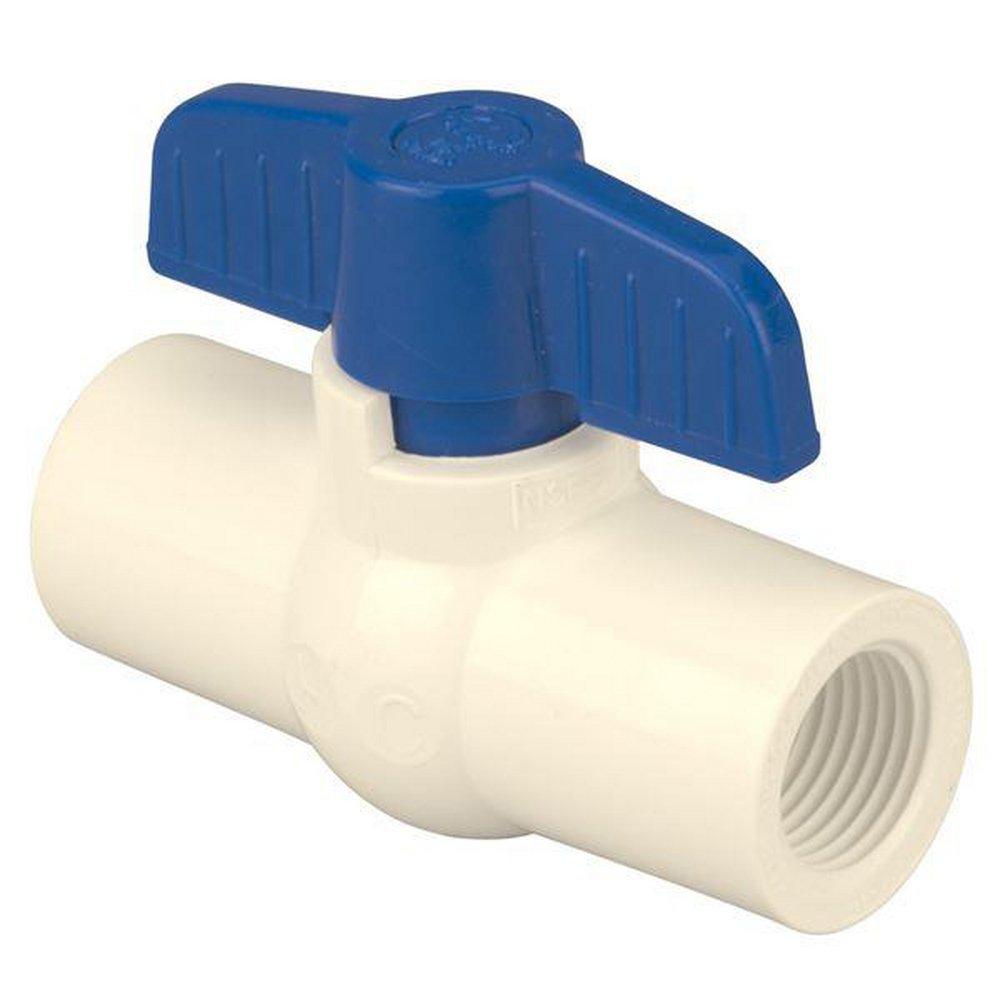

NIBCO MB0012C 4770 1-1/2 in. CPVC Full Port Slip 150# Ball Valve

Product Description

The NIBCO MB0012C is a CPVC ball valve designed for use in water distribution systems. It has a nominal size of one and one-half inches and offers reliable performance for both residential and commercial applications. This valve can handle a maximum pressure of 150 psi and temperatures up to 140 degrees Fahrenheit. It is important to note that this valve is not suitable for air or gas use.

• Maximum service temperature of 140 degrees Fahrenheit
• Socket ends conform to ASTM 2846 standards
• CPVC material ensures durability and resistance to corrosion

Product Highlights

Ideal for hot and cold water pressure systems in various installations.

Product Information

Standard Information

• Brand: NIBCO
• MPN: MB0012C

Technical Specifications

• Actuator Type: Lever Operated
• Body Material: CPVC
• Ball Material: CPVC
• End Style: Slip
• Nominal Size: 1-1/2 in
• Orifice Size: 1.18 in
• Inlet to Outlet Length: 4.49 in
• Top to Inlet Center: 2.64 in
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit
• Softgoods Material: EPDM
• Trim Material: PTFE Seat
• Domestic/Import: Import
