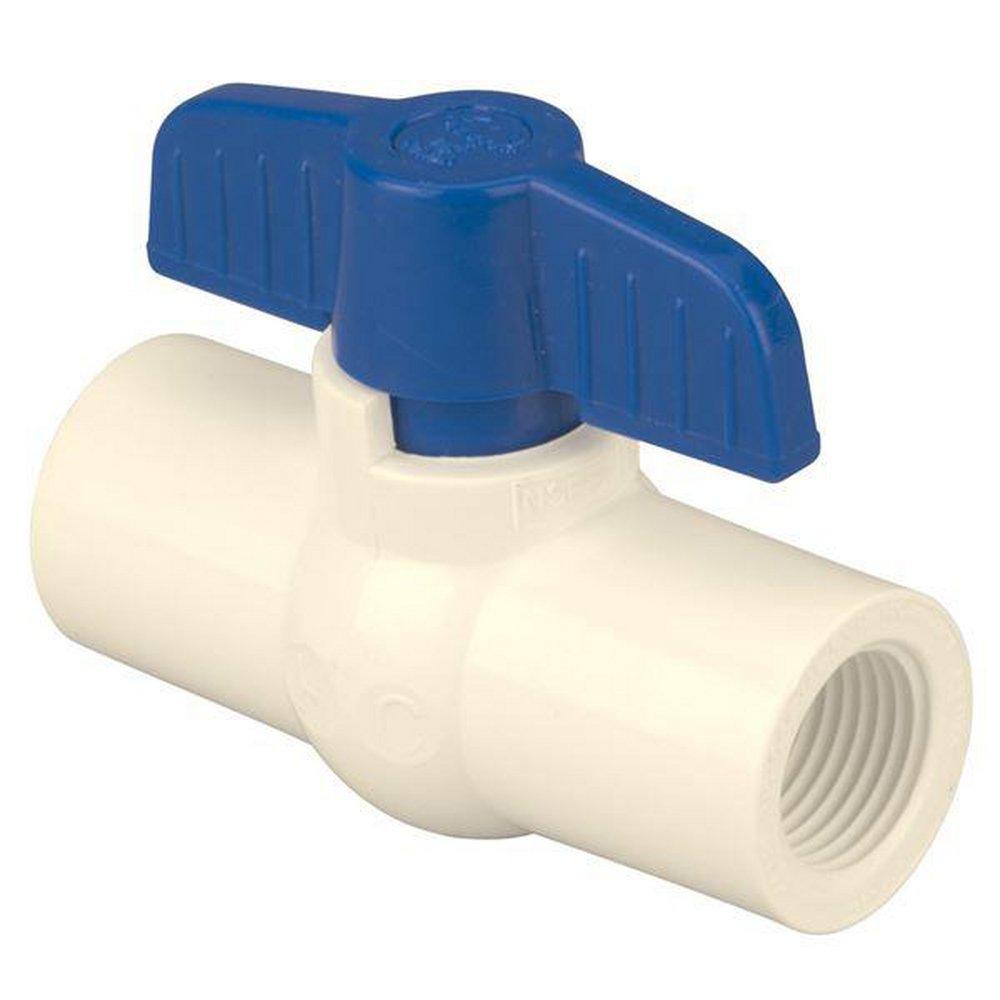

NIBCO MB0012A 4770 1 In. CPVC Full Port Slip 150# Ball Valve

Product Description

The NIBCO 4770 ball valve with MPN MB0012A is designed for both hot and cold water distribution systems. This valve features a slip end for easy installation and is made of CPVC material that provides durability and resistance to corrosion. With a pressure rating of 150 psi, it is suitable for residential and commercial applications where reliable flow control is essential.

• 150 psi non-shock cold working pressure
• Socket ends comply with ASTM D2846 and NSF/ANSI 61
• Lever handle actuator for simple operation

Product Highlights

The NIBCO ball valve is ideal for various plumbing applications. Its design allows for minimal flow resistance and its durable construction ensures a long service life.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 1-Piece

Technical Specifications

• Nominal Size: 1 in
• Orifice Size: 0.93 in
• Body Material: CPVC
• Ball Material: CPVC
• Trim Material: PTFE Seat
• Actuator Type: Lever Handle
• Pressure Rating: 150 psi
• Temperature Rating: 73 deg F
• Inlet to Outlet Length: 3.74 in
• Top to Inlet Center: 2.1 in
• Standards/Approval: ASTM D2846, NSF/ANSI 61
• Softgoods Material: EPDM
