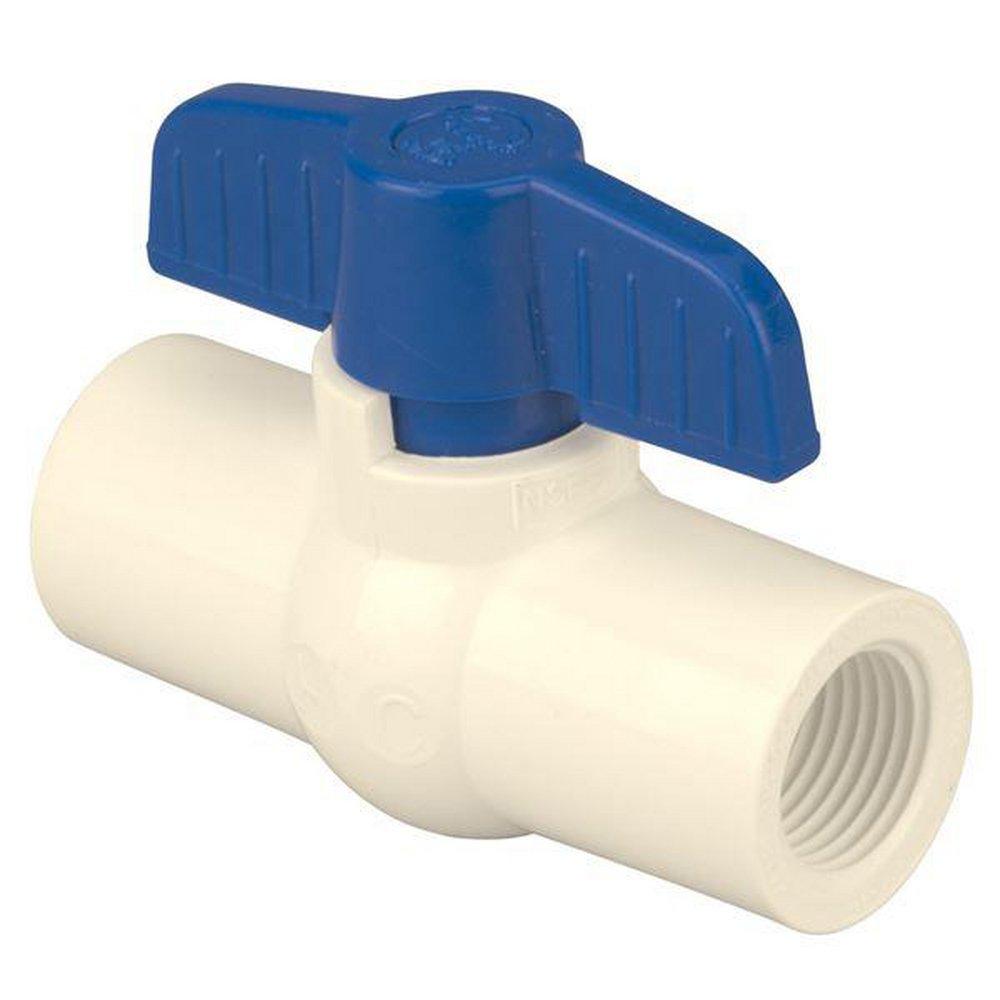

NIBCO MB00126 4770 1/2 in. CPVC Full Port Slip 150# Ball Valve

Product Description

The NIBCO® CPVC Full Port Slip Ball Valve, MPN MB00126, is suitable for hot and cold water applications. It is designed to provide reliable flow control in residential and commercial systems. This valve features a slip connection, maximizing ease of installation and efficiency in usage.

• 150 psi non-shock cold working pressure
• Maximum service temperature of 140 degrees Fahrenheit
• Socket connection according to ASTM D2846 standards

Product Highlights

This product is ideal for use in water pressure distribution systems. Its construction makes it durable and effective in managing water flow.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: MB00126

Technical Specifications

• Nominal Size: 1/2 in
• Orifice Size: 0.49 in
• Actuator Type: Lever Operated
• Ball Material: CPVC
• Body Material: CPVC
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit
• Inlet to Outlet Length: 2.68 in
• Top to Inlet Center: 1.34 in
• Trim Material: PTFE Seat
• Domestic/Import: Import
• Series: 4770
• Softgoods Material: EPDM
