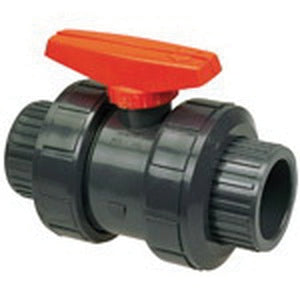

NIBCO MA599AF Ball Valve PVC 3-inch Full Port True Union Design

Product Description

The NIBCO MA599AF PVC True Union Ball Valve features a three-inch socket end connection designed for optimal durability and easy assembly. This valve is ideal for industries requiring reliable fluid control such as chemical processing, industrial plating, or water distribution systems.

• Constructed from high-quality PVC, ensuring long-lasting durability and corrosion resistance.
• Equipped with FKM O-ring and PTFE seat enhancing the valve's chemical compatibility and temperature tolerance.
• True union design allows easy replacement and maintenance without full system deconstruction.

Product Highlights

This valve operates optimally at pressures up to 150 psi and temperatures up to 140 degrees Fahrenheit, accommodating full-port flow to minimize pressure drops and maximize efficiency.

Product Information

Standard Information

• Brand: NIBCO
• Series: S45TB-V
• Type: True Union, Full Port

Technical Specifications

• Nominal Size: 3 inches
• Connection Type: Socket
• Body Material: PVC
• Trim Material: PVC and PTFE
• Pressure Rating: 150 psi at 73 degrees Fahrenheit
• Temperature Rating: up to 140 degrees Fahrenheit
• Seal Material: FKM
• Operator Type: Orange PVC Handle
