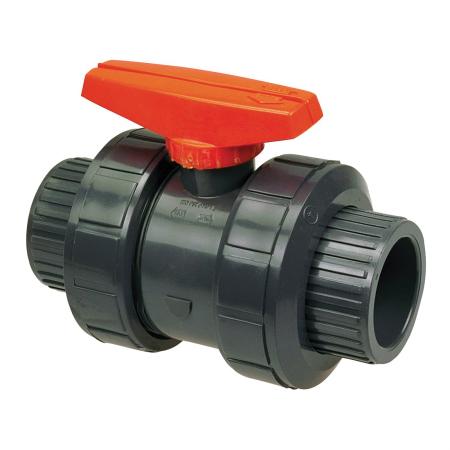

NIBCO MA598AF T45TB-V 3 PVC BALL VALVE FKM TRUE UNION

Product Description

The NIBCO model MA598AF, a 3-inch PVC true union ball valve, offers reliable shut-off in various industrial applications. Renowned for its durability and superior functionality, this product is a perfect choice for systems involving chemical processing, industrial plating, and more.

• Designed with a full port for maximum flow efficiency.
• Features FKM O-rings providing excellent chemical resistance.
• Constructed from PVC with PTFE seating for enhanced durability.

Product Highlights

This ball valve is equipped to handle pressures up to 150 psi at 73 degrees Fahrenheit, adhering to ASTM F1970 and NSF/ANSI 14/61 standards.

Product Information

Technical Specifications

• Material: Body and ball made from high-quality PVC.
• Connection Type: FNPT ends for secure installation.
• Operating Conditions: Suitable for temperatures up to 140 degrees Fahrenheit.
• Dimensions: Top to inlet center measures 5.59 inches.
• Series: T-45-TB-V, designed for full port flow.
• Valve Type: True Union, facilitating easy installation and maintenance.
