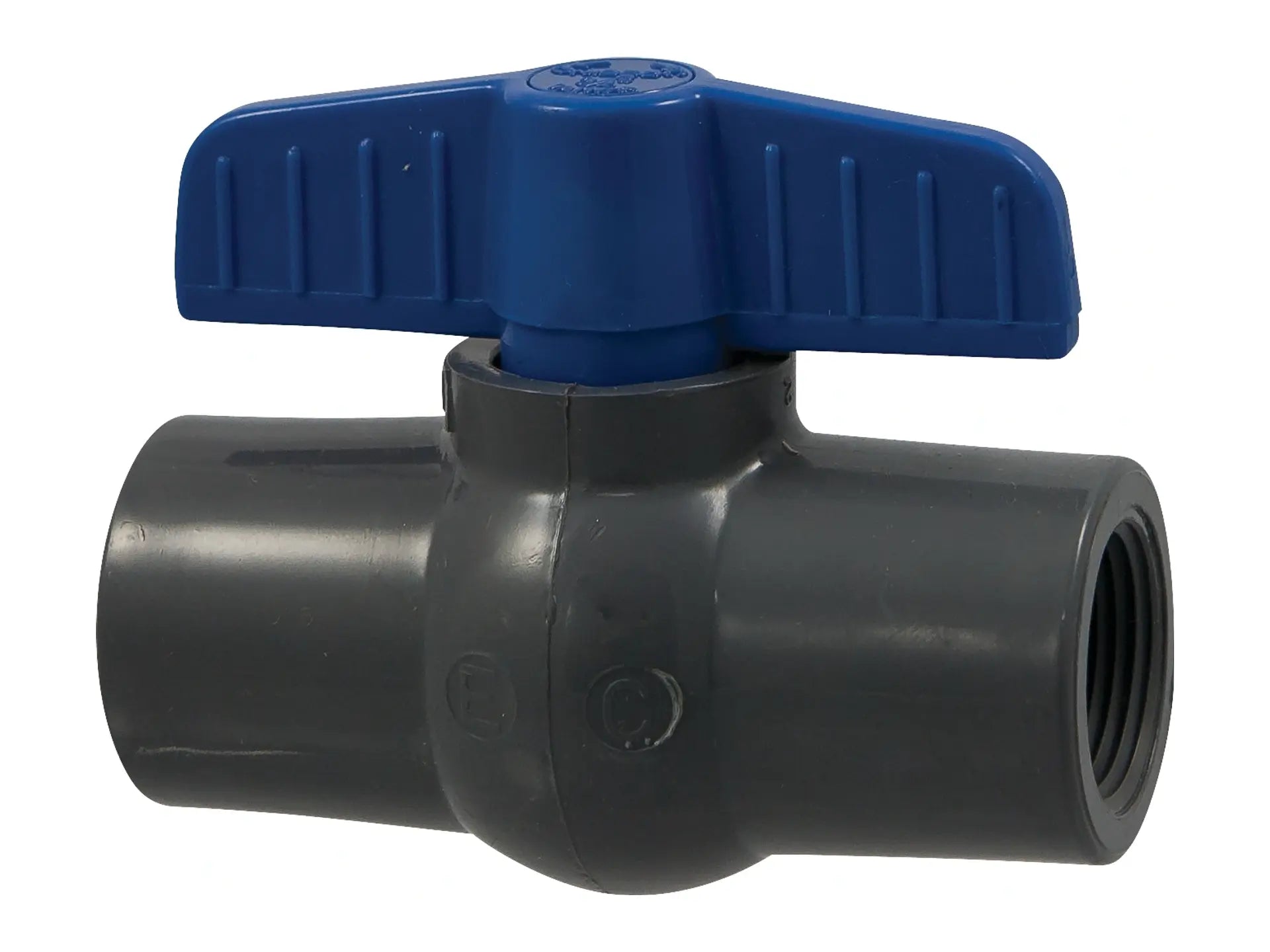

Nibco MA065AC ball valve threaded compact economy PVC schedule 80 EPDM 1 1/2 inch pack of 36 T45CE-E

Product Description

The NIBCO MA065AC is a compact economy ball valve designed for reliable flow control in various piping systems. Constructed from PVC Schedule 80 with EPDM O-rings, it offers excellent corrosion resistance and high long-term hydrostatic strength. This 1 1/2 inch threaded valve is lightweight, easy to install, and maintenance-free, making it suitable for industrial, residential, commercial, and agricultural applications. It features a quarter-turn operation for quick shutoff and is rated for 150 psi at 73°F water non-shock.

• Constructed from PVC Schedule 80 with EPDM O-rings for superior corrosion resistance and durability.
• Features a 1 1/2 inch threaded connection (ASME B1.20.1) and a quarter-turn handle for quick shutoff.
• Lightweight, easy to install, and maintenance-free, ideal for diverse industrial and commercial uses.

Product Highlights

Compact PVC Schedule 80 ball valve with EPDM seals, 1 1/2 inch threaded connection, and 150 psi pressure rating.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: MA065AC
• Country of Origin: Taiwan

Technical Specifications

• Brand: NIBCO
• MPN: MA065AC
• UPC Code: 039923760838
• Type: Ball Valve
• Valve Size: 1 1/2 inch
• Connection Type: F (NPT) x F (NPT)
• Body Material: PVC
• Valve Operator: T-Handle
• eClass Classification: PVC Sch 80 Ball Valves
• Model Number: T45CE-E
• Valve Pressure Rating: 150 psi at 73°F water non-shock
• Maximum Service Temperature: 113°F at 112 psi
• Thread Connection Standard: ASME B1.20.1
• Certifications: ASTM F1970, NSF/ANSI Standard 14, NSF/ANSI/CAN-61, NSF/ANSI/CAN-372
• O-ring Material: EPDM
• Cross Reference: T45CE-E
• Valve Size (Metrical): 40 mm

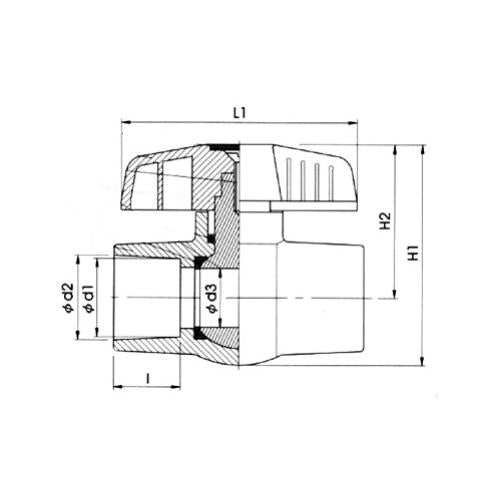

• d1: 1.89 in
• d2: 1.91 in
• d3: 1.42 in
• D: 2.44 in
• L: 5.12 in
• L1: 4.29 in
• I: 1.38 in
• H1: 4.53 in
• H2: 3.07 in
• W: 2.95 in
• Package Quantity: 36 pcs
• Series: T45CE-E
• Pipe Schedule: 80
• Potable Water Code: LL Compliant NSF/ANSI 372
• RoHS Status: N/A
