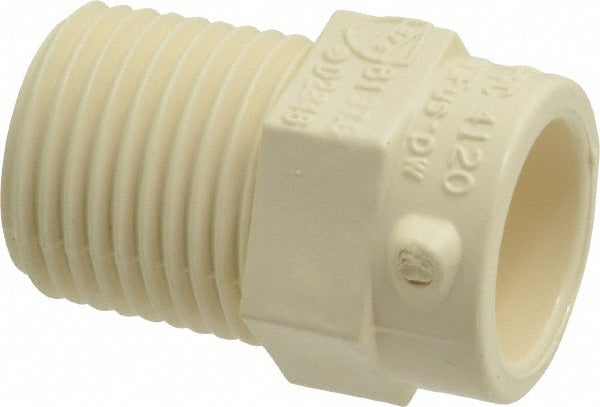

Nibco M030600 Cpvc Male Adapter Slip X Mipt 1/2 in

Product Description

The NIBCO M030600 is a 1/2-inch CPVC male adapter designed to transition between CPVC slip socket piping and male iron pipe thread (MIPT) connections. Fabricated from CPVC material rated to 180 degrees F, this fitting handles the elevated temperature and pressure demands common in hot-water distribution and chemical-handling systems. It is sized at 1/2 inch with a slip inlet and a threaded male outlet, making it a straightforward choice when connecting CPVC tubing runs to threaded valves, pumps, or equipment ports. Plumbers and pipefitters install this adapter in both residential and light commercial applications where CPVC is the specified piping material.

This adapter is suited for hot and cold potable water systems, hydronic distribution lines, and industrial process piping where CPVC is approved by the applicable code. The slip end accepts solvent-welded CPVC pipe, while the MIPT end threads directly into female-threaded fittings, valves, or equipment connections. It is a common component in new construction rough-in work and in retrofit or repair scenarios where a CPVC line must terminate at a threaded metal or plastic port.

Key Features

• CPVC construction rated to 180 degrees F maximum working temperature
• Slip x MIPT end connections allow solvent-weld to threaded transitions in a single fitting
• NSF/ANSI certified for use in potable water systems
• Meets ASTM D standards for CPVC pressure fittings
• Compact 1/2-inch size fits standard residential and light commercial supply lines

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 1/2-inch CPVC piping systems using solvent-weld connections at the slip end and standard male iron pipe thread at the outlet end.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following local plumbing code requirements, including IPC and IFGC guidelines where applicable. Shut off the water supply and depressurize the line before cutting into any existing piping. Use only CPVC-rated solvent cement and primer on the slip end, and apply thread sealant or PTFE tape rated for plastic fittings on the MIPT end. Do not over-torque the threaded connection, as CPVC threads can crack under excessive force.
