Nibco LD200058 Lug Bfv Gear Op Alum/brnz 8 Inch

Product Description

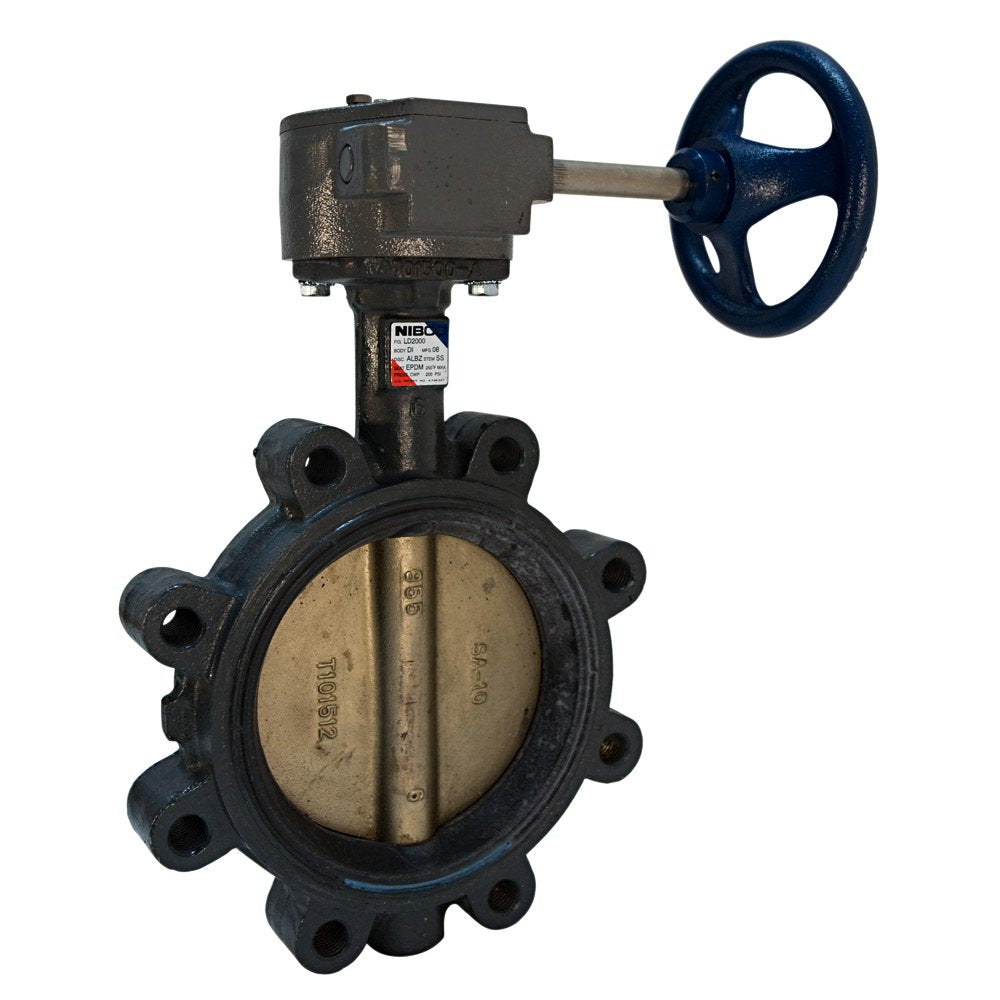

The NIBCO LD200058 is a gear operated ductile iron butterfly valve that may be used in hot and cold domestic water, HVAC condenser water, chilled water systems, and hot water heating. The valve provides ease of operation with quarter-turn (90 degrees) open to close.

• 200 PSI/13.8 bar non-shock cold working pressure
• Molded-in seat liner eliminates leakage between body and liner
• End of line service at 200 PSI with no downstream flange

Product Highlights

The NIBCO butterfly valve is versatile and economical for commercial, mechanical, and industrial applications. It features a geometric drive and is compatible with pipe flange classes 125 and 150.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: LD200058
• Country of Origin: United States

Technical Specifications

• Brand: NIBCO
• Manufacturer: NIBCO INC.
• Model / MPN: LD200058
• Size: 8 Inch
• Number of Items: 1.0
• Product Type: VALVE
• Product Group: BISS
• Max Pressure (PSI): 200
• Material: Ductile Iron
• Connection Type: Lug
• Handle Style: Manual Gear
• Valve type: Butterfly Valves
• Pack quantity: 1
• Type: Butterfly Valve
• Stem Material: Metal - NIBCO - Stainless Steel
• Valve Size: 8"
• Disc Material: Aluminum Bronze
• Valve Operator: Gear Operator
• e-Class Classification: Ductile Iron Butterfly Valves
• All Type of Item: Valve
• Turns & Operation: Quarter-Turn
• UPC: 039923718518
• Country of Origin: United States
• Item model number: LD200058
• Outlet Connection Type: Flange
• Specification met: Api 609, Mss Sp-67, Nsf 61 Annex G, Mss Sp-25, Uscg
• Inlet Connection Type: Flange
