Product Description

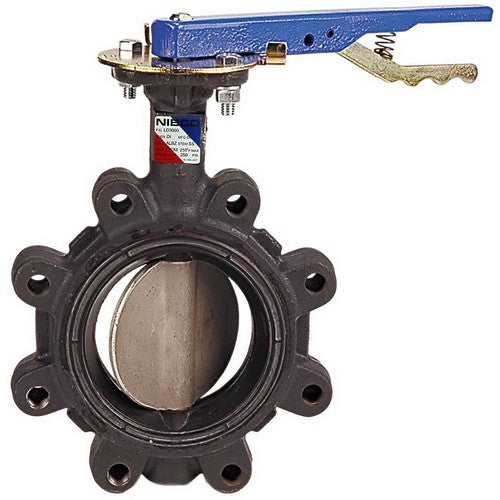

The Nibco LD200036 is a six-inch lever operated ductile iron butterfly valve with a pressure rating of 200 PSI. This valve features a lug end connection and is designed for bi-directional dead-end service. It provides bubble-tight shutoff, making it suitable for commercial and light industrial applications, including HVAC and vacuum services. The valve is equipped with an aluminum bronze disc and an EPDM seal for durability. The stainless steel stem offers resistance to corrosion and prolongs the valve's life. The design facilitates easy operation with a lever, ensuring reliable performance.
- Six-inch nominal size
- Ductile iron body with aluminum bronze disc
- Suitable for hot and cold potable water
Product Highlights
The Nibco butterfly valve is efficient for a variety of plumbing tasks. It meets industry standards MSS SP-67 and API 609.
Product Information
Standard Information
-
Manufacturer: Nibco
-
Part Number: LD200036
Technical Specifications
-
Nominal Size: 6 inch
-
Body Material: Ductile Iron
-
Pressure Class: 200 psi
-
End Connection: Lug
-
Actuation/Operator: Lever Operated
-
Seal Material: EPDM
-
Stem Material: 416 Stainless Steel
-
Max Temperature: 225°F continuous, 250°F intermittent
