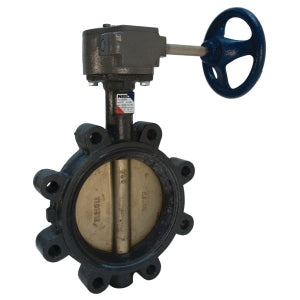

NIBCO LD2000-5 10 in. Lug-Style Ductile Iron Butterfly Valve with Gear Operator Lead Free

Product Description

The NIBCO LD2000-5 is a lug-type butterfly valve designed for bi-directional dead end service. It operates without a downstream flange and offers bubble-tight shutoff rated up to 200 PSI. This valve is suitable for use in commercial and some light industrial process applications, including HVAC and vacuum services, as well as hot and cold potable water systems.

• Operates with a simple 1/4 turn (90-degree) action for opening and closing.
• Internal geometric drive design eliminates the need for pins or bolts, reducing potential leak paths.
• Extended neck design allows for insulation thickness up to 2 inches.

Product Highlights

Features a molded-in EPDM seat liner for durability and an aluminum bronze disc for enhanced performance in water applications.

Product Information

Standard Information

• Brand: NIBCO VALVES
• MPN: LD2000-5

Technical Specifications

• Service Temperature: 225 degrees F continuous, 250 degrees F intermittent
• Construction Material: Ductile iron
• Seat Liner: EPDM molded-in
• Stem Material: Stainless steel with copper bushings
• US Coast Guard Compliance: Category A
• California Code Compliance: Health and Safety Code section 116875
• Warranty: 5 years limited warranty against defects in material and workmanship
