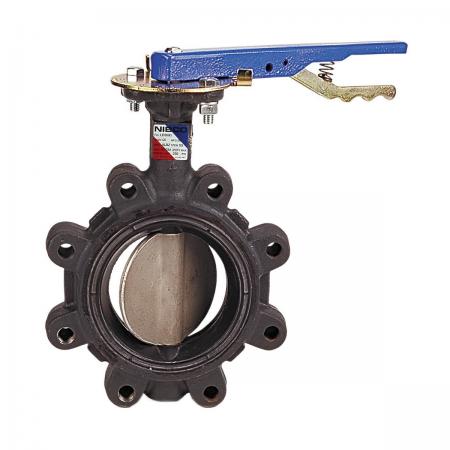

Nibco NLG100J LD-2000 Series 5 in. Ductile Iron Lug EPDM Locking Lever Handle Butterfly Valve

Product Description

The Nibco NLG100J is a 5-inch ductile iron lug butterfly valve from the LD-2000 Series. It features a locking lever handle and an EPDM liner for reliable sealing. The valve can handle 200 psi pressure and is ideal for water and HVAC applications.

• 225 degrees F continuous service and 250 degrees F intermittent service
• Stainless steel stem with copper bushings
• Lug style with infinite position plate and lock

Product Highlights

Nibco NLG100J is a versatile butterfly valve designed for commercial and light industrial applications. With its durable construction and reliable performance, it's suitable for hot and cold potable water services and more.

Product Information

Standard Information

• Brand: Nibco
• Series: LD-2000
• Application: HVAC, plumbing, and vacuum services
• Warranty: 5 years limited

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Nominal Size: 5 in
• Pressure Class: 125/150 lb
• Softgoods Material: EPDM
• Stem Material: 416 Stainless Steel
• Temperature Rating: 225 degrees F continuous, 250 degrees F intermittent
• Type: Lug Style
• Manufacturer: Nibco Inc.
• Pressure Rating: 200 psi
• Connection Size: 5 in
• Connection Type: Lug
• Dimension: 13.38 in H
• Seal Material: EPDM
• Standards/Certifications: MSS SP-67, MSS SP-25, API 609, US Coast Guard Category A, Vermont Act 193, QAIus P347, ANSI/NSF 61 and 372
• Material Specifications: ASTM A582, ASTM B16, ASTM B148 Alloy 955, ASTM A536
