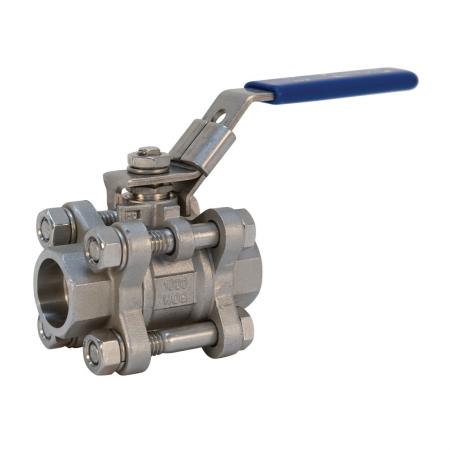

NIBCO NL99F4C K595S6R66LL 1-1/2 SW Ball 3Pc Locking Lever SS

Product Description

The NIBCO NL99F4C K595S6R66LL is a 1-1/2 inch socket weld ball valve designed for demanding applications. It features a full port and a locking lever handle actuator, making it suitable for a range of industrial settings.

• Valve pressure rating: 1000 psi
• Blowout-proof stem
• Stainless steel construction

Product Highlights

This NIBCO ball valve is built with a stainless steel body and trim, ensuring durability and resistance to corrosion. The locking lever handle adds security, preventing accidental operation. Ideal for use in process piping, utility service, and various chemical applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NL99F4C

Technical Specifications

• Type: 3-Piece
• Media: Water
• Series: K-595-S6-R-66-LL
• End Style: Socket Welded
• Port Type: Full
• Nominal Size: 1-1/2 inches
• Orifice Size: 1-1/2 inches
• Pressure Rating: 1000 psi
• Temperature Rating: 400 degrees Fahrenheit
• Inlet to Outlet Length: 4.72 inches
• Top to Inlet Center: 3.94 inches
• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Softgoods Material: PTFE
• Domestic/Import: Import
