NIBCO INC NL99F46 K595S6R66LL 1/2 SW BALL 3PC LKG LEV SS

Product Description

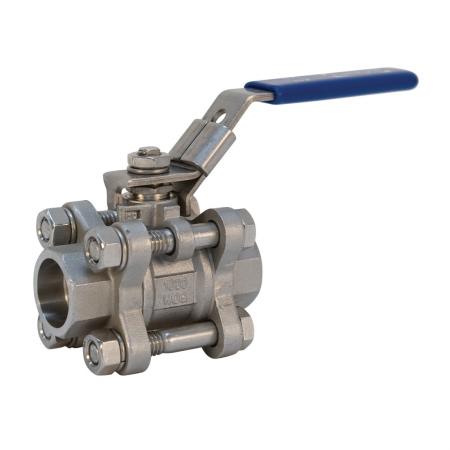

NIBCO INC presents the NL99F46, the K595S6R66LL 1/2 inch socket weld ball valve. This three-piece valve is built for high performance and reliability. It features a stainless steel ball and body, making it ideal for various applications, including process piping and utility service.

• Pressure rating of 1000 psi
• Locking lever handle actuator
• Full port design

Product Highlights

This valve is designed for water media and offers robust construction for long-term use. Its PTFE soft goods and 316 stainless steel trim enhance durability in chemical applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model Number: K595S6R66LL

Technical Specifications

• Type: 3-Piece
• Media: Water
• Nominal Size: 1/2 inch
• Orifice Size: 0.56 inch
• Socket Welded: Yes
• Pressure Rating: 1000 psi
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 2.76 inches
• Top to Inlet Center: 2.38 inches
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Softgoods Material: PTFE
• Actuator Type: Locking Lever Handle
• Domestic/Import: Import
• Series: K-595-S6-R-66-LL
